Chapter 1 5
Graphics contained within this publication are for representation only.
Connections & Setup

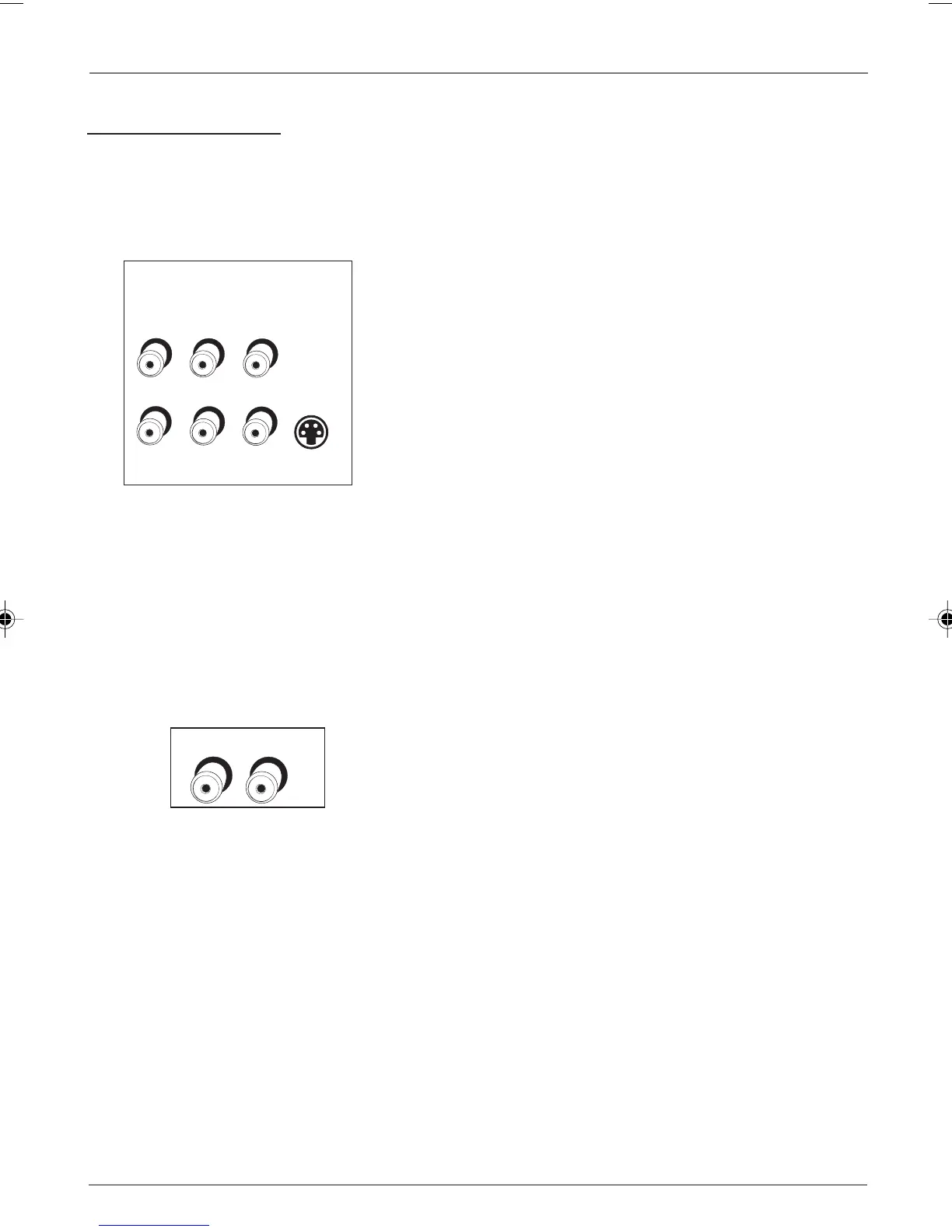

Explanation of Jacks
This section describes the jacks you can use to make connections. There are several
ways to connect components to your TV.
TV ANT Lets you connect a coaxial cable to receive the signal from the antenna,
cable, cable box, or if using the example on page 4, a VCR.
VIDEO 1
Lets you connect a component such as a VCR, DVD player, or
laserdisc player.
• Y, Pb, Pr Provides optimum picture quality because the
video is separated into three signals. Use three video-
grade cables for the connection. When using VIDEO 2
Y, Pb, Pr, make sure to connect left and right audio cables
to the VIDEO 2 AUDIO Input jacks.
• R (RIGHT) AUDIO Provides right audio connection. The
right audio connector is usually red.
• L/MONO AUDIO Provides left audio connection. The
left audio connector is usually white.
• VIDEO Provides composite video connection. The video
connector is usually yellow.
• S-VIDEO IN Provides better picture quality than the
video jacks because the color part of the signal is
separated from the black and white part of the picture.
When using S-VIDEO IN, make sure to connect left and
right audio cables to the L/MONO and R AUDIO Input
jacks.
AUDIO OUTPUT (Not available on model 27R430T) Lets
you connect an amplifier or audio receiver for improved
sound quality.
Pr
Pb
Y
R
L/MONO
AUDIO
VIDEO
S-VIDEO IN
VIDEO 1
R
L
AUDIO
OUTPUT
To Next Page
