Connecting HDMI device (Best Video Quality)
To connect an HDMI device, such as a DVD player, please Connect the HDMI1,2, or 3 jack on the side of TV to the output
jacks of device via HDMI cable.
To connect an DVl device, such as a computer via DVl port of PC and HDMI jack of TV:
1. Connect the HDMI1,2, or 3 jack on the side of TV to the DVl port of PC via HDMI-DVl cable.
2. Connect the PC Audio-in jack on the side of TV to the audio output jack of computer with audio cable (3.5mm stereo jack).
To connect an DVl device, other AV device via DVl port of device and HDMI jack of TV:
1. Connect the HDMI1,2, or 3 jack on the side of TV to the DVl port of device via HDMI-DVl cable.
2. Connect the PC Audio-in jack on the side of TV to the audio output jack of device with audio cable (dual-channel RCA
jacks to 3.Smm stereo jack).
Note: !. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transmitting uncompressed digital
data. It carries the audio and video signal via the same cable and has the best display quality.
2. HDMI-DVI cable transfers only video signal from DVI port of DVI device to HDMI jack of TV. For audio signal, please
connect audio output to PC Audio-In jack on TV back panel.

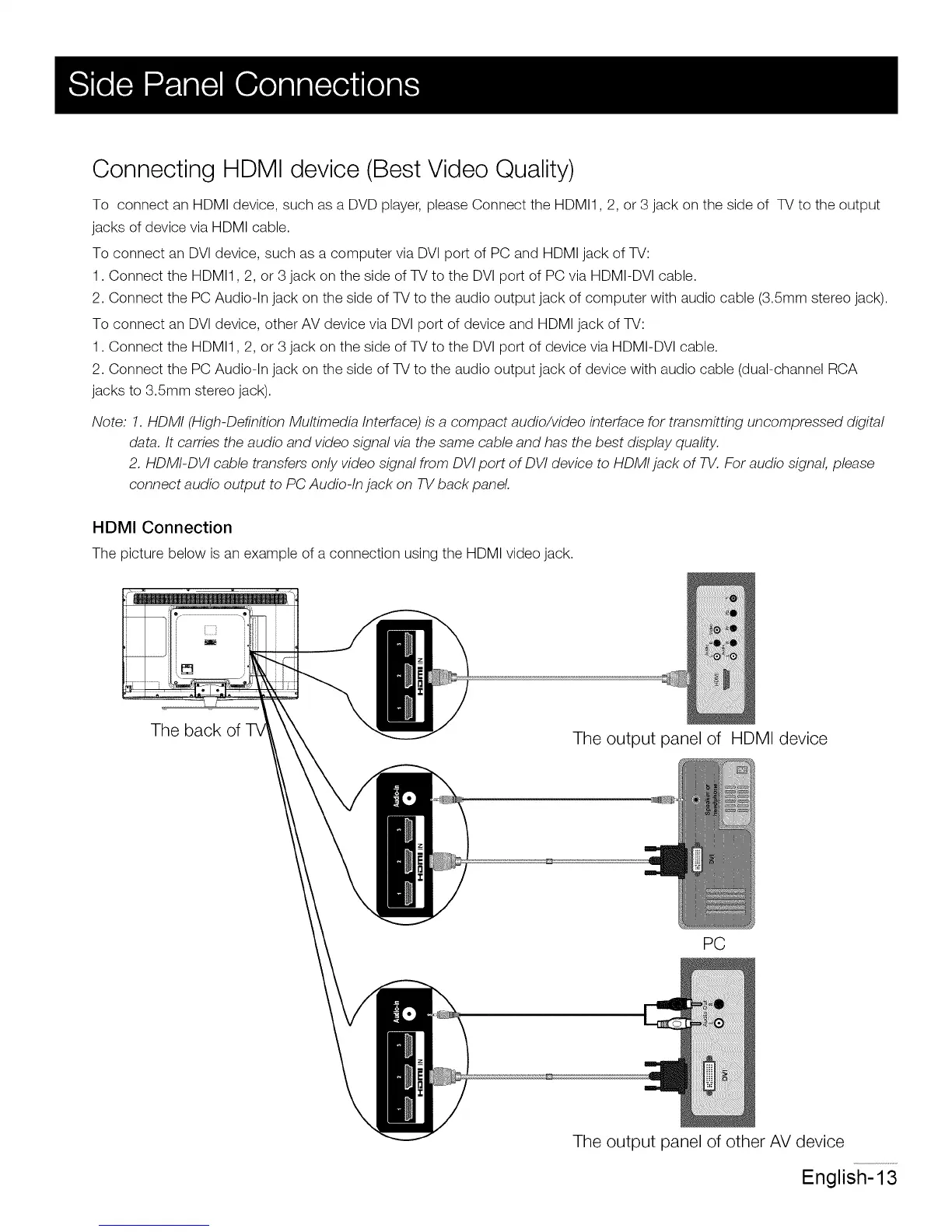

HDMI Connection
The picture below is an example of a connection using the HDMI video jack.
[]
The back of
The output panel of HDMI device
PC
The output panel of other AV device
English-13
