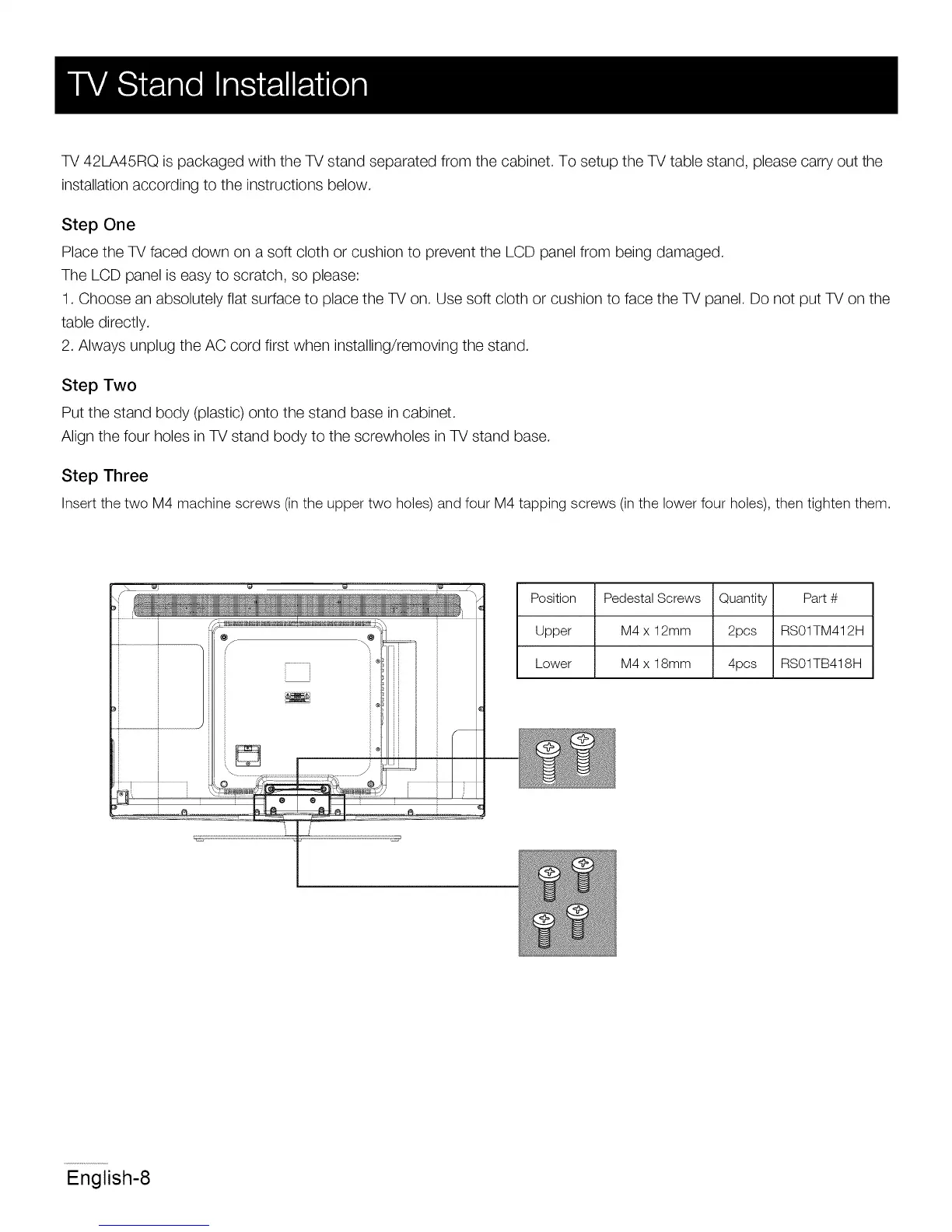

TV 42LA45RQ is packaged with the TV stand separated from the cabinet. To setup the TV table stand, please carry out the
installation according to the instructions below.
Step One
Place the TV faced down on a soft cloth or cushion to prevent the LCD panel from being damaged.
The LCD panel is easy to scratch, so please:
1. Choose an absolutely flat surface to place the TV on. Use soft cloth or cushion to face the TV panel. Do not put TV on the
table directly.
2. Always unplug the AC cord first when installing/removing the stand.
Step Two
Put the stand body (plastic) onto the stand base in cabinet.
Align the four holes in TV stand body to the screwholes in TV stand base.
Step Three
Insertthe two M4 machine screws (inthe upper two holes) and four M4 tapping screws (in the lower four holes), then tighten them.
[]
Position
Upper
Lower
Pedestal Screws Quantity Part #
M4 x 12mm 2pcs RS01TM412H
M4 x 18mm 4pcs RS01TB418H
English-8
