102 Installation/Installing the Receiver
RECEIVER (DRD 102 RW) to VCR and TV
m
.i
-i i
i'
N
SATELLITE _',_:_O000UOOHOOD_O_O00000000000000_00000
L :. ,._o_@@ @ _ [] I f I
yi// '-
i , _,o_--°_ @ @_ VCR
•_i_- @@@ ,.,
_ A L
Material List Basic Hookup:
• 2 EA. RF cables (use only cables with screw
type F connectors).
• 1 EA. Video cable.
• 1 EA. Stereo audio cable.
Material List Monitor TV Hookup:
• 1 EA. Video Cable.
• 1 EA. Stereo audio cable.

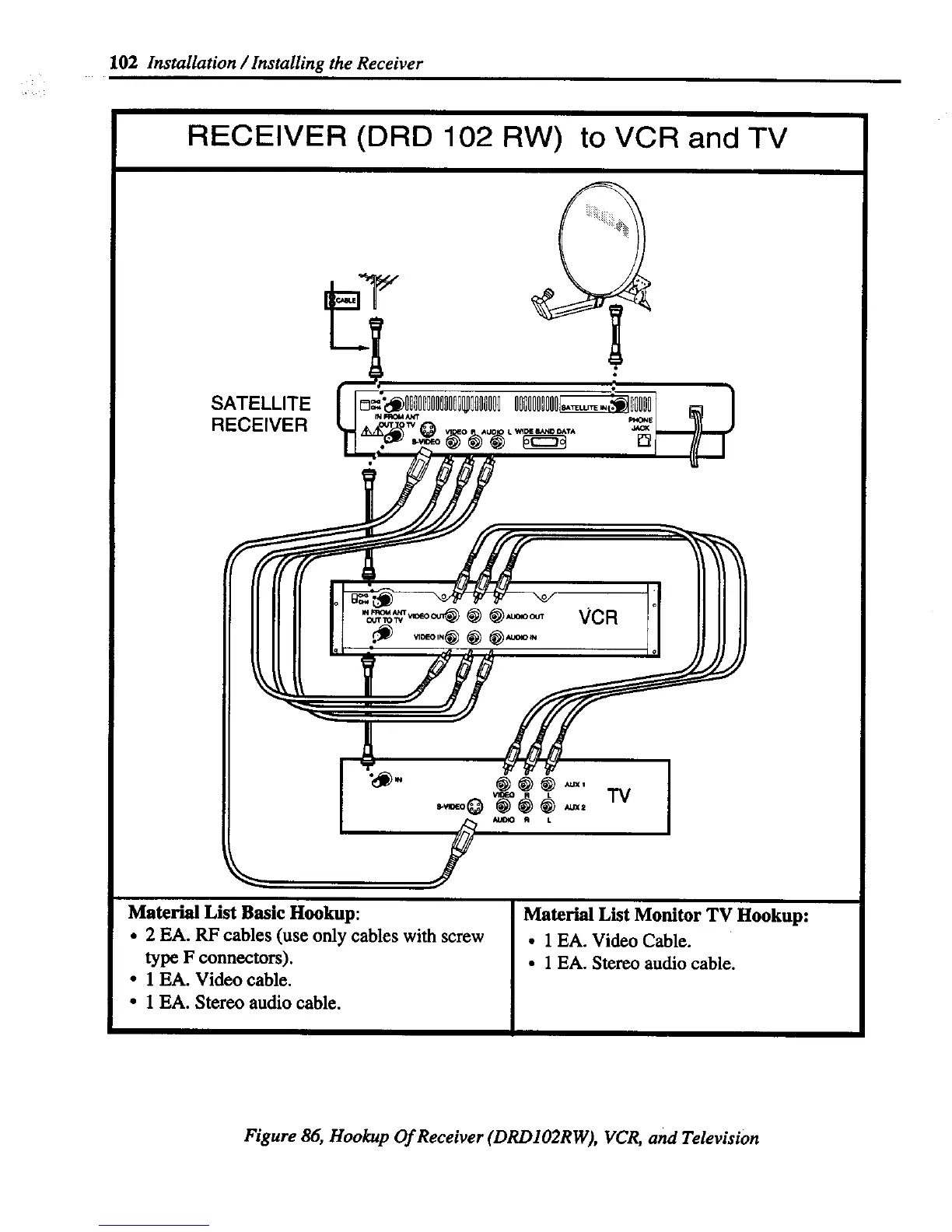

Figure 86, Hookup Of Receiver (DRDIO2RW), VCR, and Television
