RCA DRD102RW - Deck Railing

62 Installation/Mounting the Dish
DECK RAILING
Material List:
5 Ii
• 4 EA. /16 x 1112"
Wood lag screws.
• 4 EA. 5/16"Flat
washers.
Tool List:
Drill.
• sit6" Twist drill
bit.
• Bubble level or
plumb line.
• Screwdriver.
• Pencil.
OUTSIDE/_ o "o
HOLES _ j o
OUTSIDE
i / HOLES

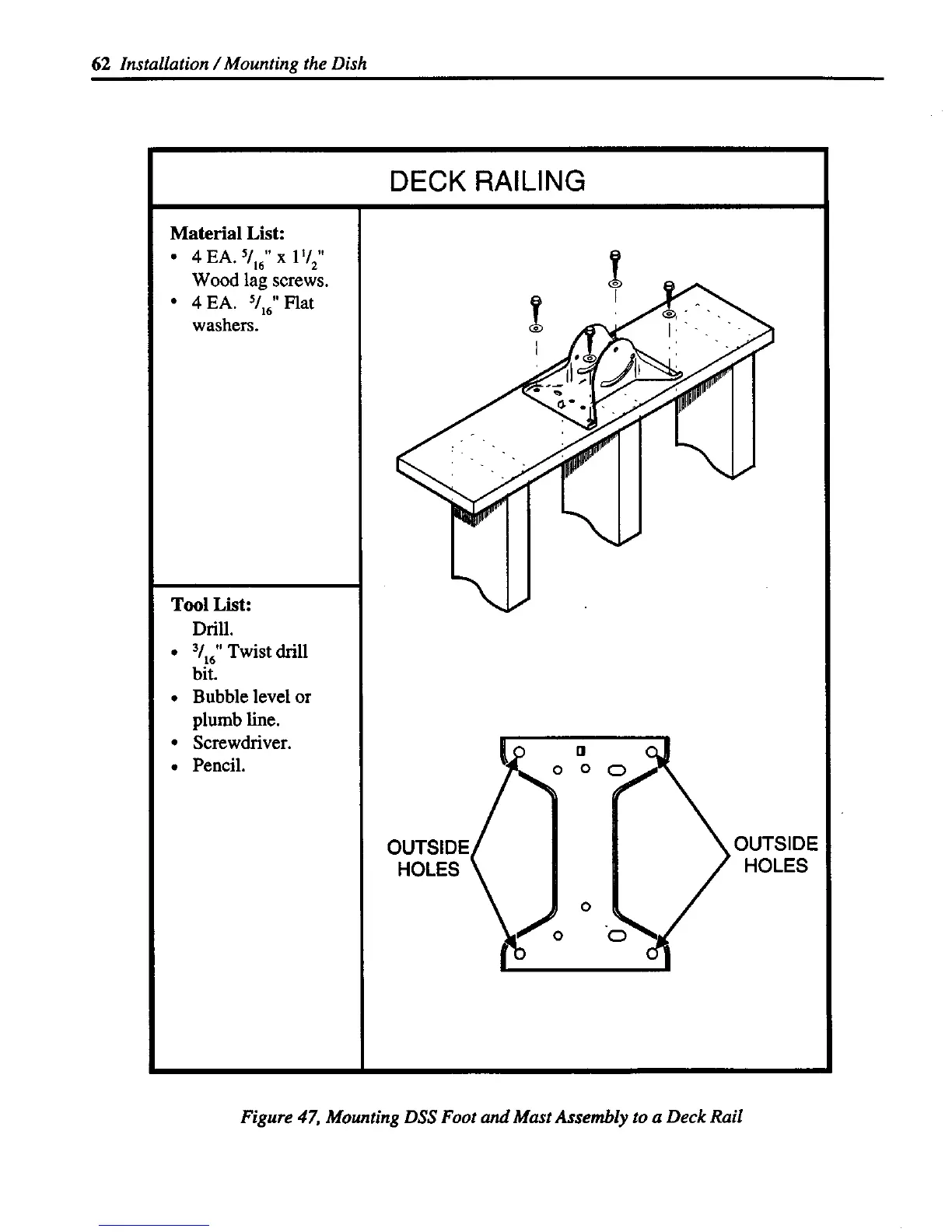

Figure 47, Mounting DSS Foot and Mast Assembly to a Deck Rail
