RCA DRD102RW - Roof

64 Installation/Mounting the Dish
ROOF INSTALLATION
Material List:
• 2 EA. 1/4" x 3" lag
screws.
• 4EAS16"x 11/2''
lag screws.
• 2 EA. 1/4"Flat
washers.
• 4 EA. 516"Flat
washers.
• Roof Sealant.
Tool List:
• Drill.
• V8"Twist drill bit.
• 3/16"Twist drill
bit.
• Bubble level or
plumb line.
• 7/16"Box or open
end wrench.
• 3/8" Box or open
end wrench.
• Ladder.
• Pencil.
CENTER
HOLE
_._ii i_ j- RAFTER
OUTSIDE/ I I NOUTS DE
HOLES _ I/ HOLEs
i i\
, , CENTER
HOLE

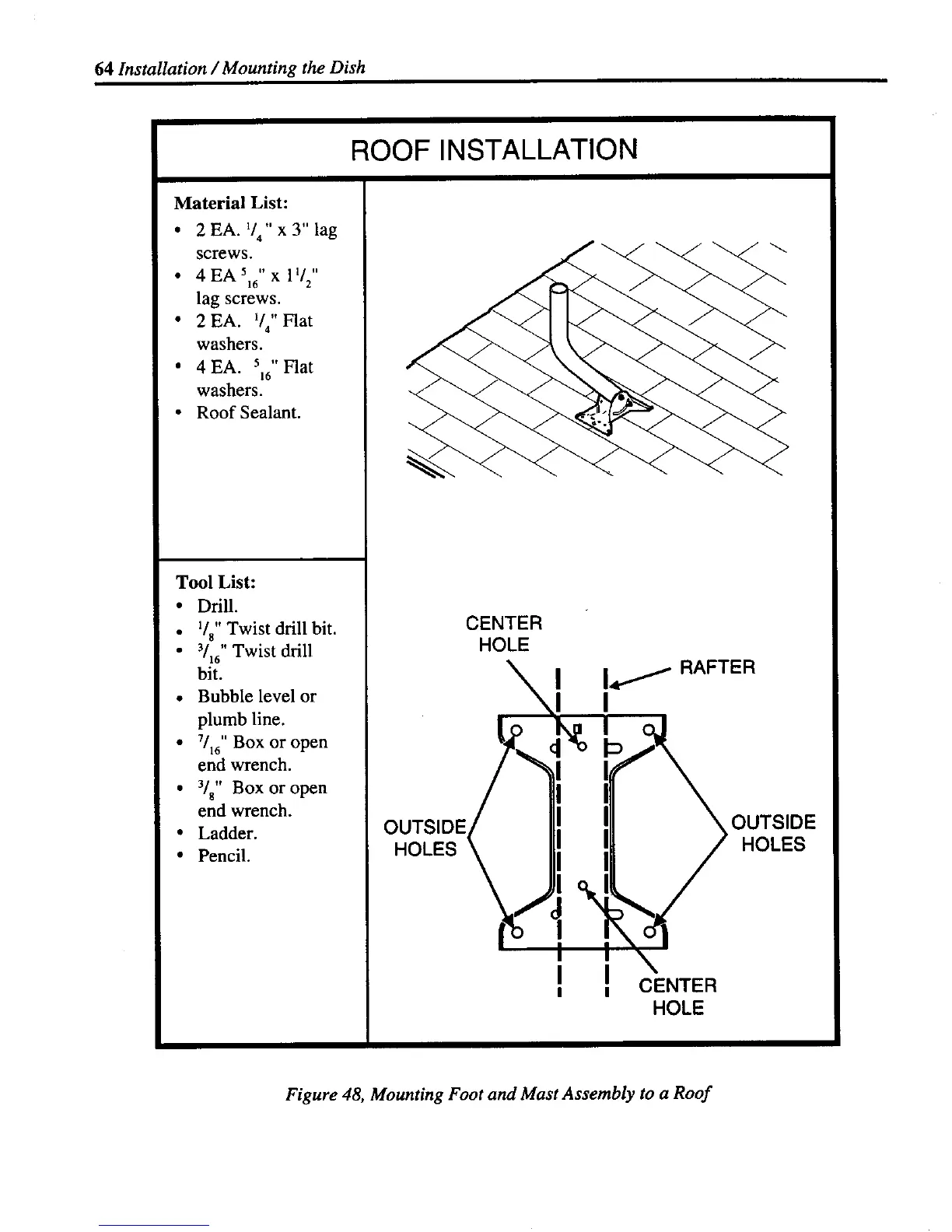

Figure 48, Mounting Foot and Mast Assembly to a Roof
