78 Installation/Dish Assembly
DISH ASSEMBLY
Material List:
• RG6 coax cable.
• Coax cable ground
block.
• "F" fittings for RG6
coax cable.
• Ground Conductor
(No. 10 copper or
No. 8 aluminum
wire).
• Telephone wire
(minimum two
conductor).
• RJll/14 telephone
plugs.
• Coax cable sealant.
• Silicon sealant.
• Cable clips.
Tool List:
• Drill.
• 1/2"Twist drill bit.
• Adjustable wrench.
• Phillips head screw-
driver.
• Hammer.
• Coax cable wire
stripers.
• Crimp tools (for
RG6 "F" fittings and
modular plugs).
• Pencil.
INSTALL
LNB
l ASSEMBLE
_" DISH
.if
INSTALL
LNB CABLE
CONNECT
k °-"'° ,

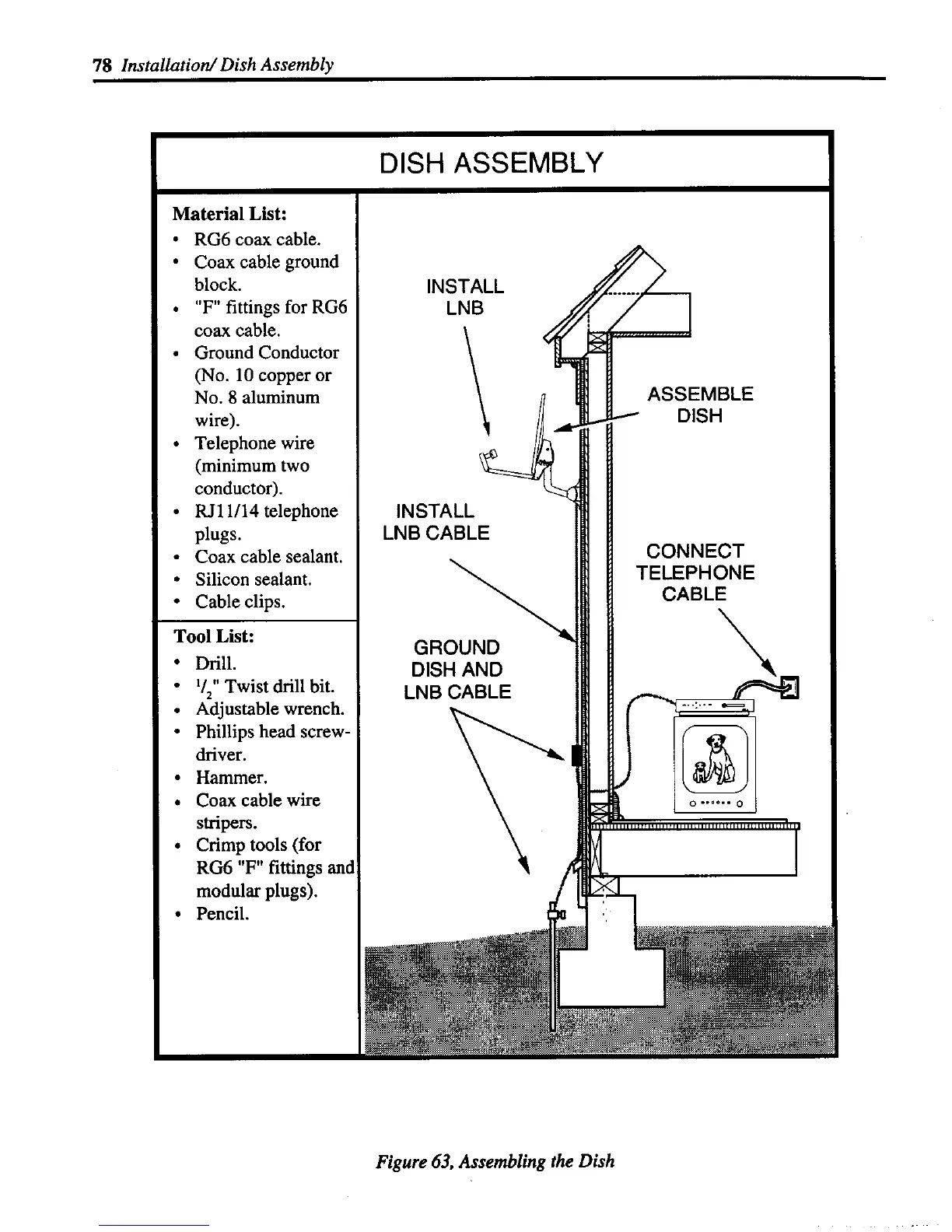

Figure 63, Assembling the Dish
