ADJUST
lns_l_tion 37
t

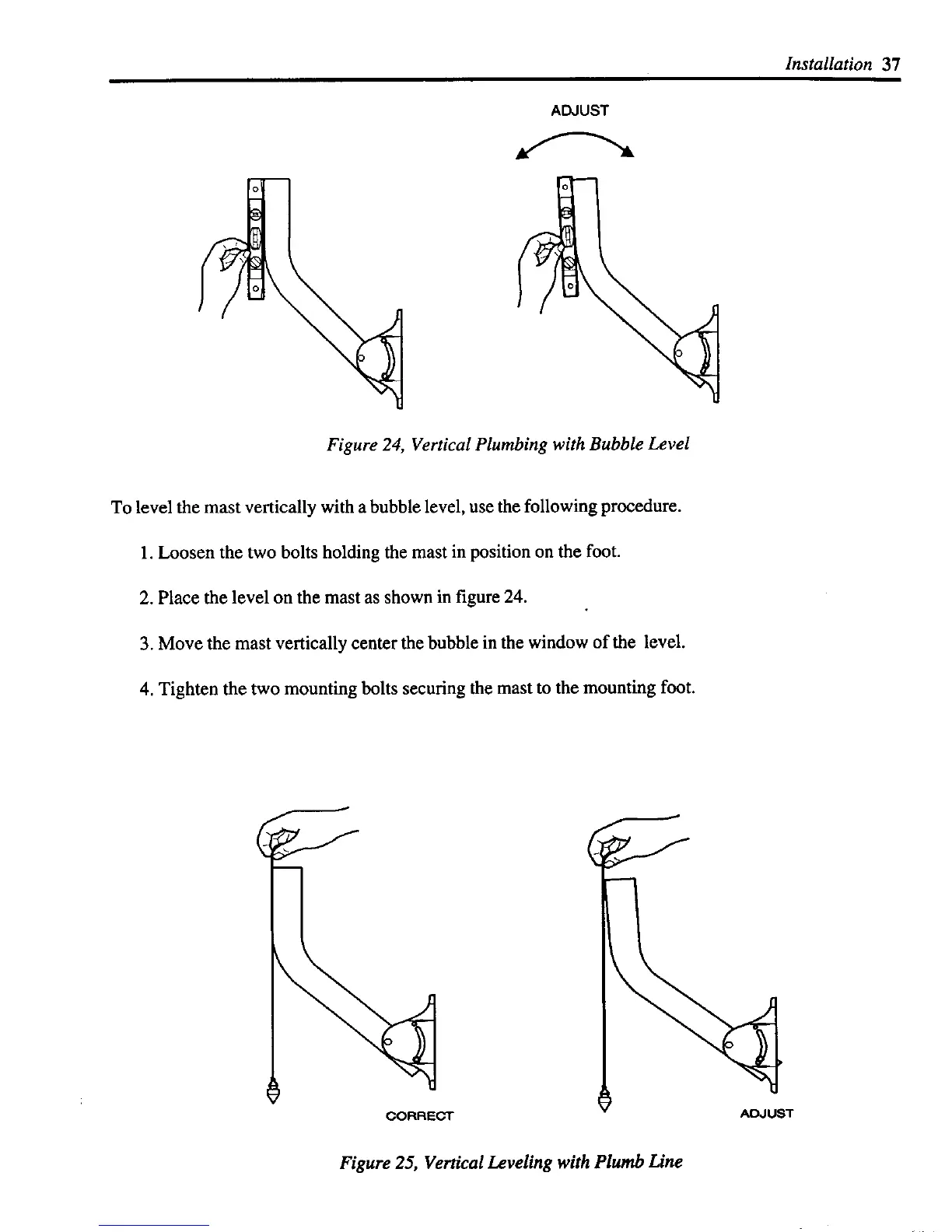

Figure 24, Vertical Plumbing with Bubble Level
To level the mast vertically with a bubble level, use the following procedure.
1. Loosen the two bolts holding the mast in position on the foot.
2. Place the level on the mast as shown in figure 24.
3. Move the mast vertically center the bubble in the window of the level.
4. Tighten the two mounting bolts securing the mast to the mounting foot.
CORRI_CT
Figure 25, Vertical Leveling with Plumb Line
