42 Installation/Mounting the Dish
PANEL SIDING
Material List:
• 2EA. I "x3"
/4 Lag
screws.
5 II
• 4EA /16 xlV2"Lag
screws.
• 2EA. 1-
/4 Flat washers.
• 4 EA. 5/is" Flat wash-
ers
Tool List:
• Drill.
• l/s" Twist drill bit.
3/16"Twist drill bit.
• Bubble level or plumb
line.
• 7/16"Box or open end
wrench.
• 3/s" Box or open end
wrench.
• Pencil.
STUD
__ WOOD PANEL
I
CENTER
HOLE
_1 I/sTuD
OUTSIDE/ I I NOUTSIDE
HOLES(_k I ] / HOLES
! I CENTER
HOLE

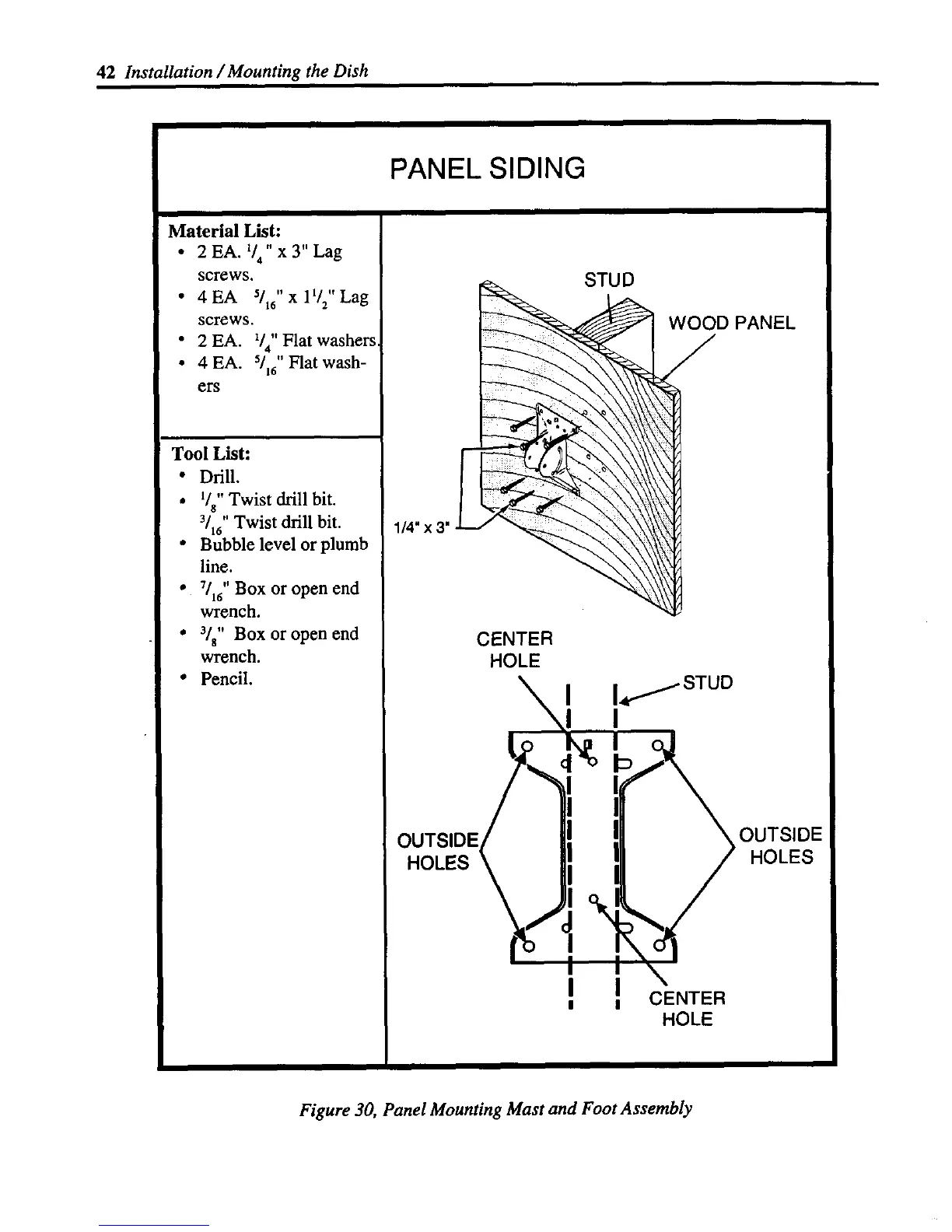

Figure 30, Panel Mounting Mast and Foot Assembly
