54 Installation/Mounting the Dish
1 3/4"
DEPTH BRICK
(MINIMUM) J

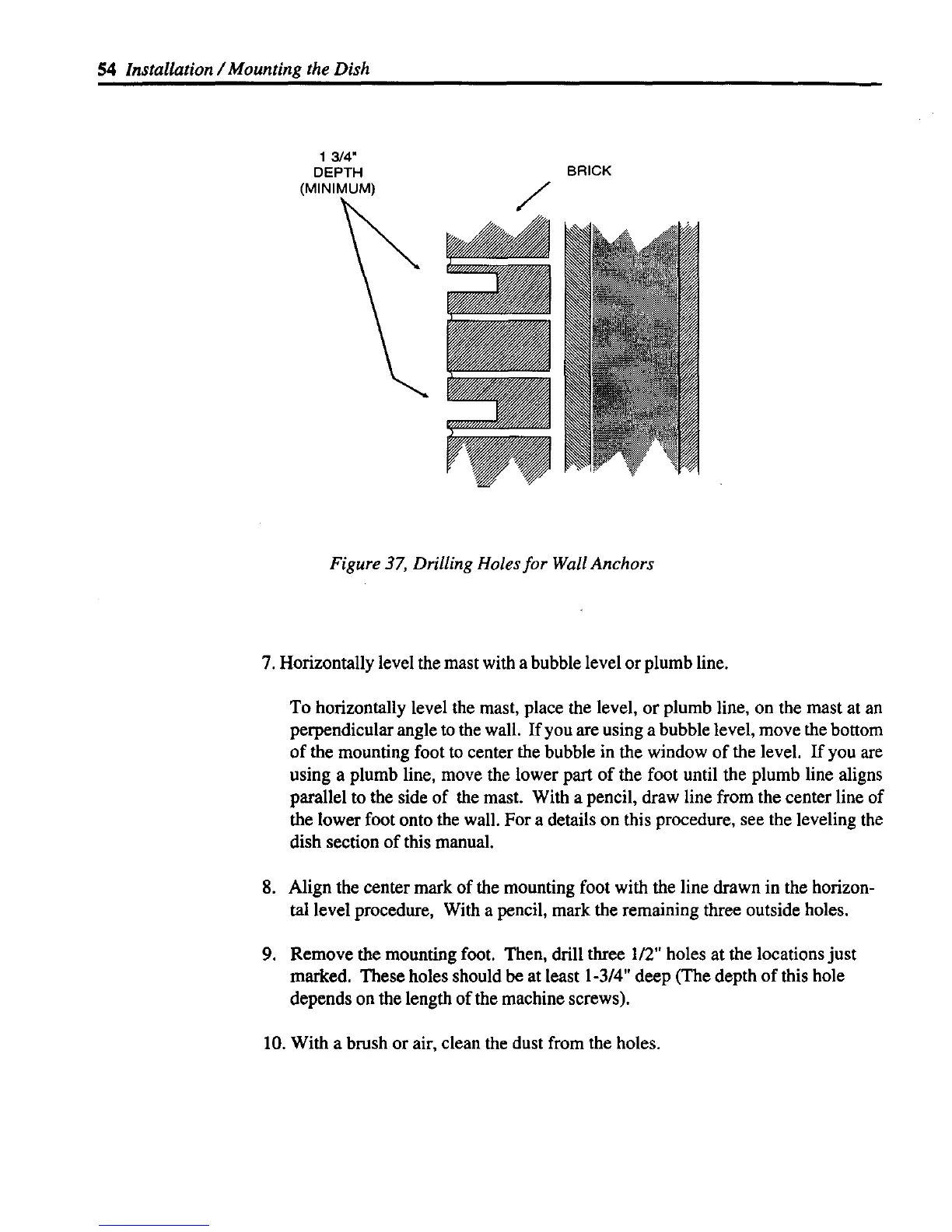

Figure 37, Drilling Holes for Wall Anchors
7. Horizontally level the mast with a bubble level or plumb line.
To horizontally level the mast, place the level, or plumb line, on the mast at an
perpendicular angle to the wall. If you are using a bubble level, move the bottom
of the mounting foot to center the bubble in the window of the level. If you are
using a plumb line, move the lower part of the foot until the plumb line aligns
parallel to the side of the mast. With a pencil, draw line from the center line of
the lower foot onto the wall. For a details on this procedure, see the leveling the
dish section of this manual.
8. Align the center mark of the mounting foot with the line drawn in the horizon-
tal level procedure, With a pencil, mark the remaining three outside holes.
9. Remove the mounting foot. Then, drill three 1/2" holes at the locations just
marked. These holes should be at least 1-3/4" deep (The depth of this hole
depends on the length of the machine screws).
10. With a brush or air, clean the dust from the holes.
