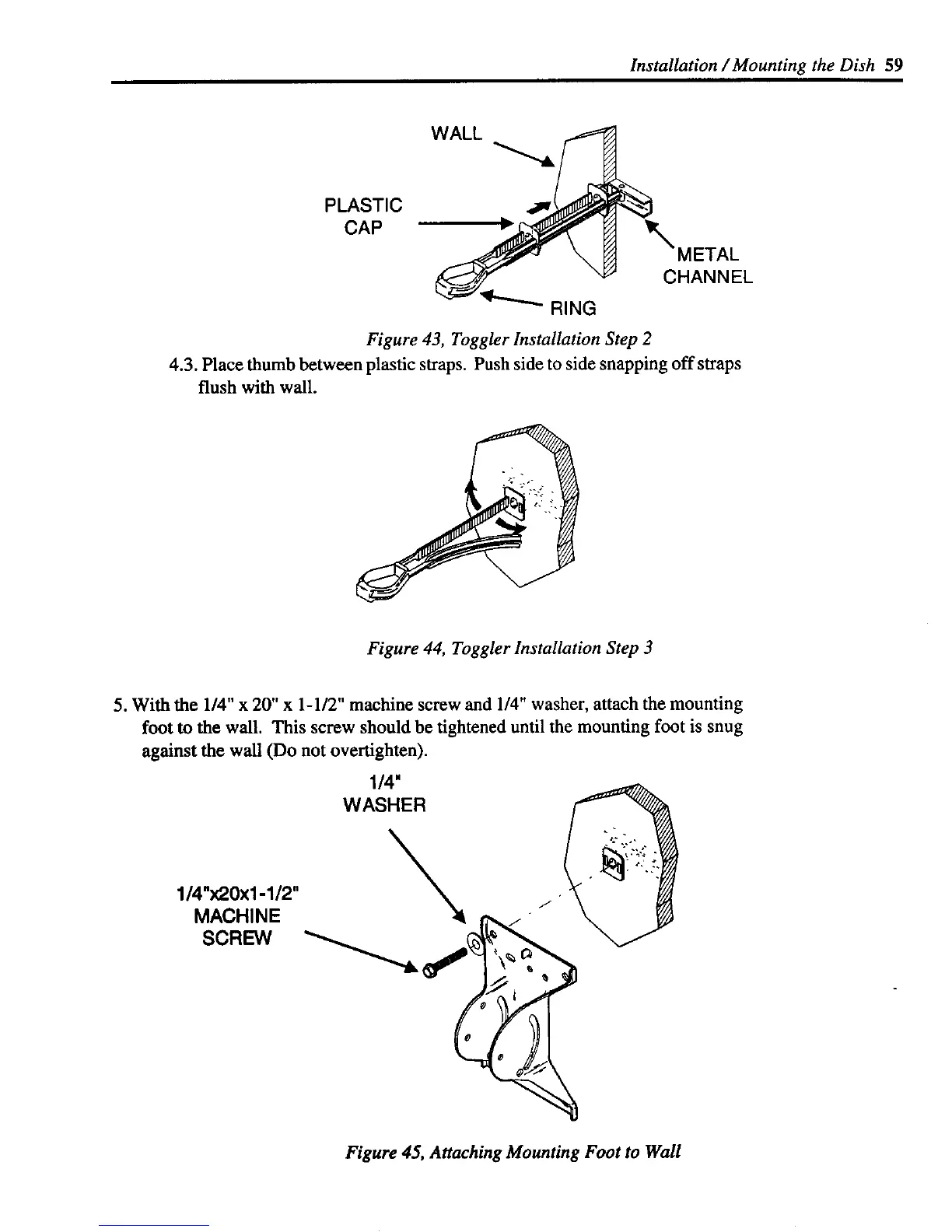

Installation/Mounting the Dish 59
WALL
PLASTIC
CAP
RING
CHANNEL
Figure 43, Toggler Installation Step 2
4.3. Place thumb between plastic straps. Push side to side snapping off straps
flush with wall.
Figure 44, Toggler Installation Step 3
5. With the 1/4" x 20" x 1-1/2" machine screw and 1/4" washer, attach the mounting
foot to the wall. This screw should be tightened until the mounting foot is snug
against the wall (Do not overtighten).
1/4"
WASHER
l/4"x20x1-1/2"
MACHINE
SCREW
Figure 45, Attaching Mounting Foot to Wall
