74 Installation/Mounting the Dish
Before climbing a ladder, assemble the chimney mount kit. To do this, use the
following steps:
1. From the chimney mount kit, locate the straps and chimney bracket. Each metal
strap in the chimney mount kit has a pre-attached eyebolts. Insert both strap's
eyebolts in the appropriate hole in the chimney bracket.
2. Thread anut on the eyebolts and tighten it to about 1/2" from the end ofthe eyebolt.
3. Repeat steps 1 and 2 for the second metal strap.
4. Locate the remaining eyebolts in the chimney mount kit. Insert these eyebolts in
the chimney bracket.
5. Thread a nut on the eyebolts and tighten to about 1/2" from the end of the eyebolt.
6. Locate the foot and mast assembly. Align the mounting foot's four outside holes
with the four holes of the chimney bracket.
EYEBOLTS
\
STRAPS
BRACKET

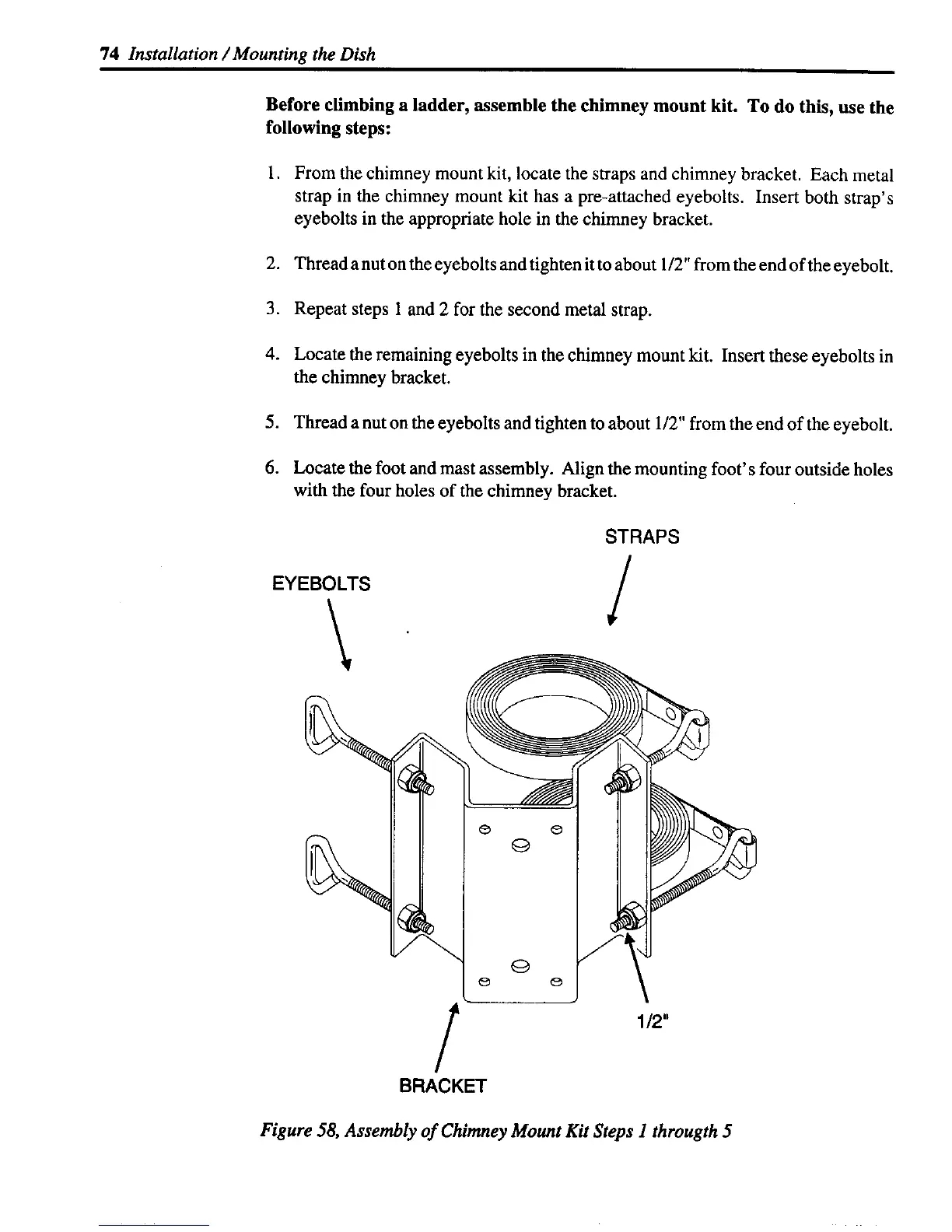

Figure 58, Assembly of Chimney Mount Kit Steps 1 througth 5
