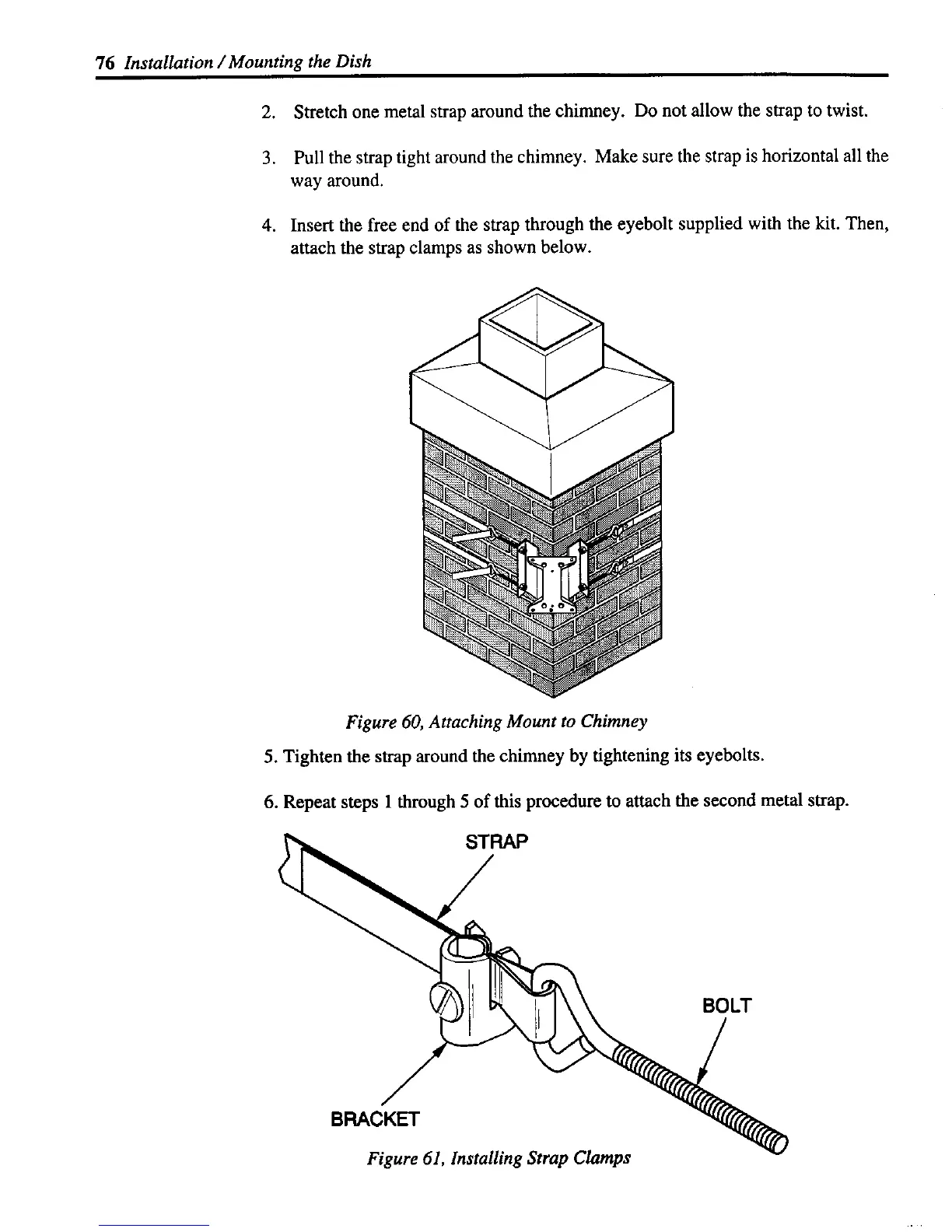

76 Installation/Mounting the Dish
2. Stretch one metal strap around the chimney. Do not allow the strap to twist.
3. Pull the strap tight around the chimney. Make sure the strap is horizontal all the
way around.
4. Insert the free end of the strap through the eyebolt supplied with the kit. Then,
attach the strap clamps as shown below.
Figure 60, Attaching Mount to Chimney
5. Tighten the strap around the chimney by tightening its eyebolts.
6. Repeat steps 1 through 5 of this procedure to attach the second metal strap.
STRAP
BOLT
BRACKET
Figure 61, Installing Strap Clamps
