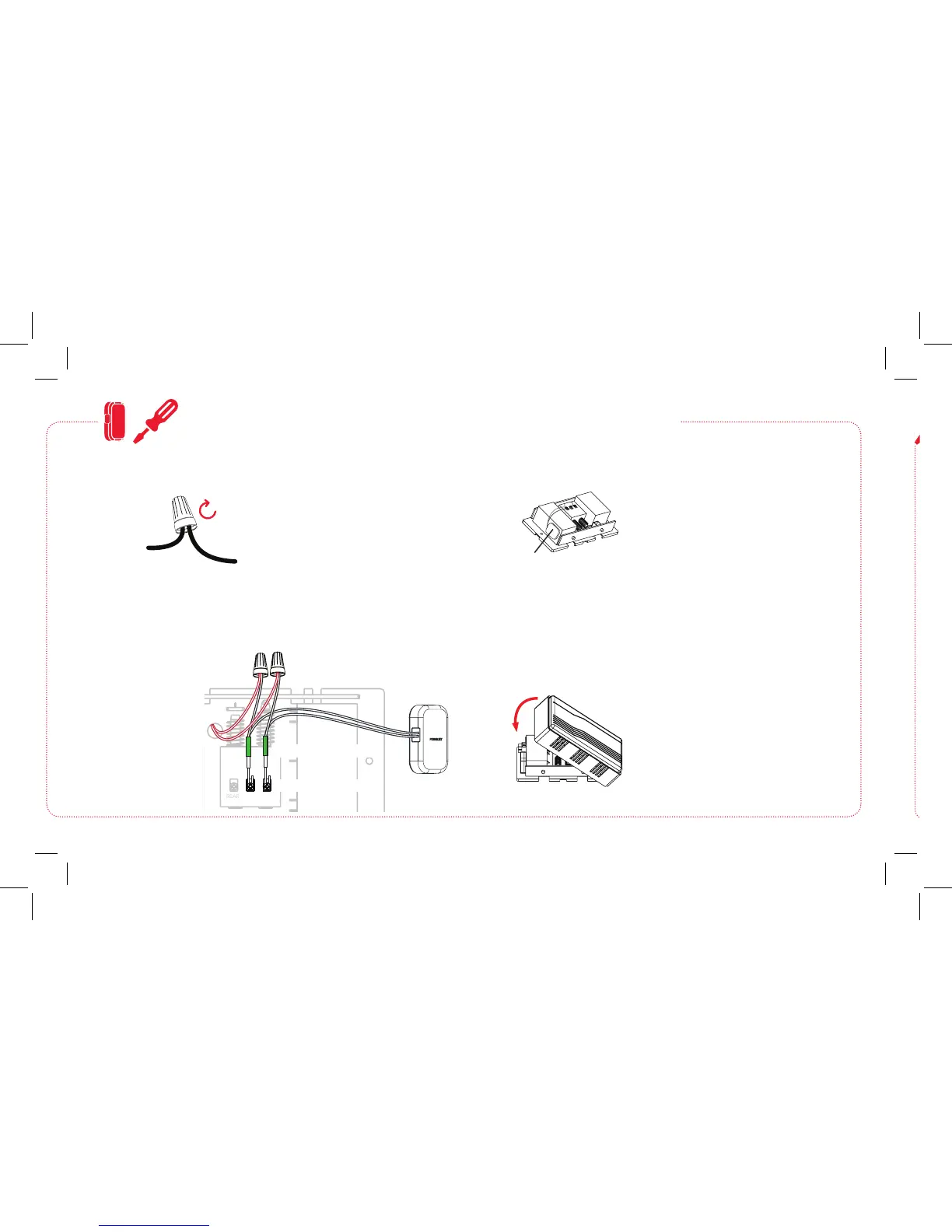

CONNECT & MOUNT THE POWER KIT (continued)
Join the power kit connection wires and the old
chime leads.
6
Remove the sheaths covering the ends
of the stranded-wire leads from the
power kit.
Put the ends of one power kit wire lead
and one old chime lead together and
insert them into a wire nut. Then twist the
wire nut until you feel tension. Repeat
with the other set of leads and wire nut.
The end result will look something like
the diagram below.
Chime lead
Wire nut
Twist
Power kit
wire lead
Mount the power kit to the side of the chime box.
7
Find a spot on the side of the chime box
where the power kit will t when the
chime box’s cover is put back on.
Peel the cover off the top of the adhesive
strip on the bottom of the power kit. Put
the power kit where you want to mount it
and press it in place until it’s secure.
Put the cover from your doorbell’s chime box back
in place
8
Put your chime box’s cover back on.
REAR TRANS FRONT
Chime leads
Wire nuts
Chime box terminals
Power kit wire leads
Power kit
Power kit
