Chapter 1: Connections and Setup

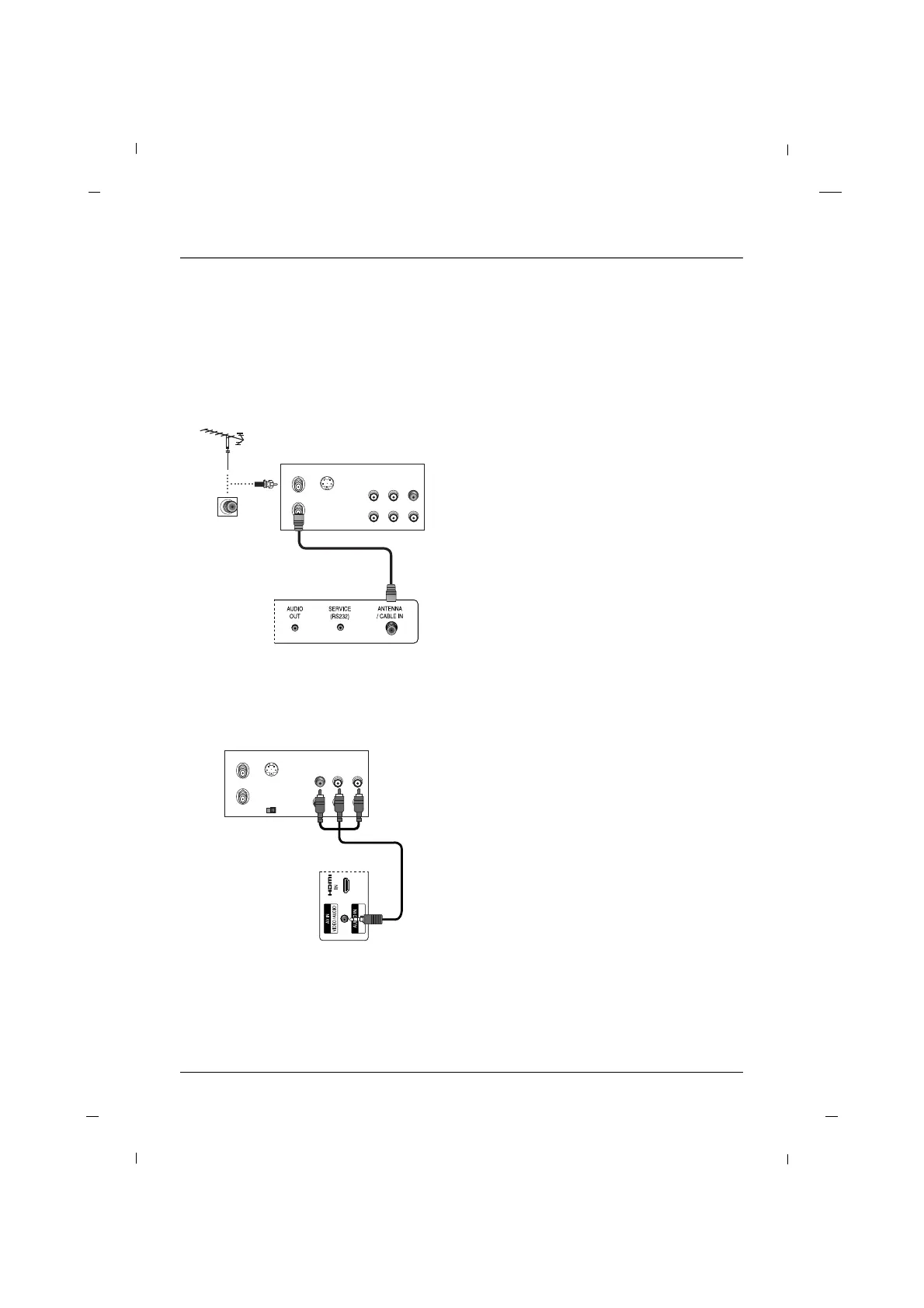

VCR Connection
A
When connecting with an antenna
ANT IN
ANT OUT S-VIDEO
IN
OUT
(R) AUDIO (L) VIDEO
1. Connect the Antenna out socket of the VCR to
the Antenna input socket on the TV.
2. Power up the VCR and Television.
3. Tune the TV to the channel output by the VCR.
(typically ch.3 or 4.)
4. Refer to the VCR manual for operating instruc-
tions.
VCR
Rear panel of the set
- To avoid picture noise (interference), leave an adequate distance between the TV and the VCR.
A
When connecting with an RCA cable
ANT IN
ANT OUT S-VIDEO
IN
OUT
(L) AUDIO (R)VIDEO
OUTPUT
SWITCH
3
1. Connect the AUDIO/VIDEO port between TV and
VCR.
2. Insert a video tape into the VCR and press PLAY
on the VCR.
3. Select the AV input source using the INPUT but-
ton on the remote control.
4. Refer to the VCR manual for operating instruc-
tions.
VCR
Side panel of
the set
