When connecting with a HDMI cable
HDMI-DTV OUTPUT
RJ45
3
1. Connect the HDMI output of the digital set-top
box to the HDMI/DVI IN1 or HDMI IN2 port on
the set.
2. Turn on the digital set-top box.
3. Select HDMI1, HDMI2 or HDMI3 input source
using the INPUT button on the remote control.
4. Refer to the digital set-top box manual for oper-
ating instructions.
Digital Set-top Box
Rear panel of the set
Chapter 1
Chapter 1: Connections and Setup
- This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box.
However, if you do receive Digital signals from a digital set-top box or other digital external device, refer
to the figure as shown below.

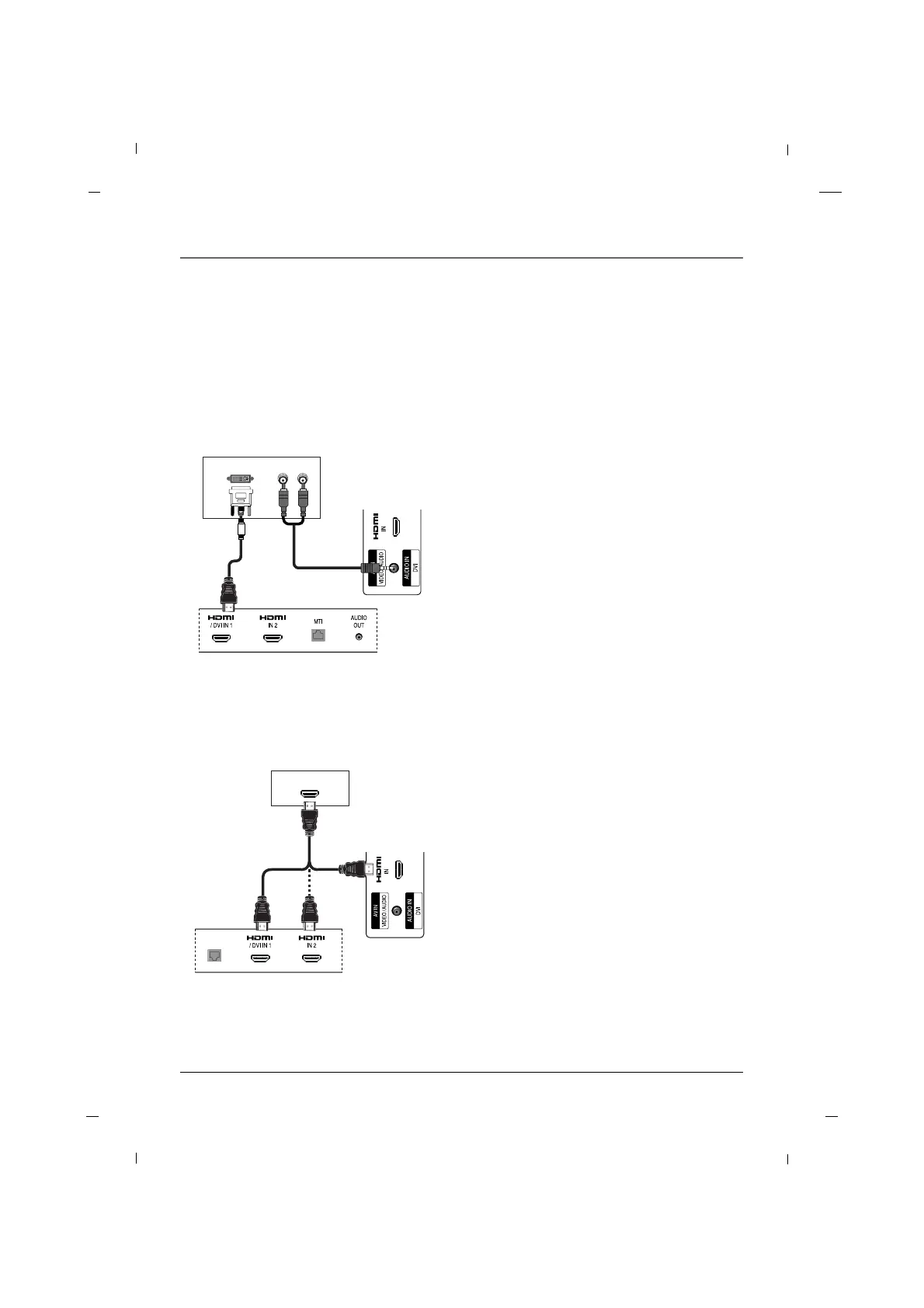

HDSTB Connection
A
When connecting with a HDMI to DVI cable
DVI-DTV OUTPUT
(R) AUDIO (L)
3
1. Connect the DVI output of the digital set-top box
to the HDMI/DVI IN1 port on the set.
2. Connect the audio outputs of the set-top box to
the AUDIO IN (DVI) port on the set.
3. Turn on the digital set-top box.
4. Select HDMI1 input source using the INPUT but-
ton on the remote control.
5. Refer to the digital set-top box manual for oper-
ating instructions.
Digital Set-top Box
Rear panel of the set
Side panel of
the set
Side panel of
the set
