Connections and Setup Chapter 1 9
Mounting TV to Wall
To mount your TV to the wall you need to purchase a VESA wall mount
Model L22HD31
Purchase a VESA 100 x100, Size M4 screw
The VESA number is the horizontal and vertical measurement of the mounting holes. For example,
100x100 means the mounting measurements are 100mm horizontally and 100mm vertically.
Follow the directions included with the wall mount to mount the TV to the wall.
Caution: Your wall mount
must bear a minimum of
five times the TV’s net
weight without causing
damage.
Step 3

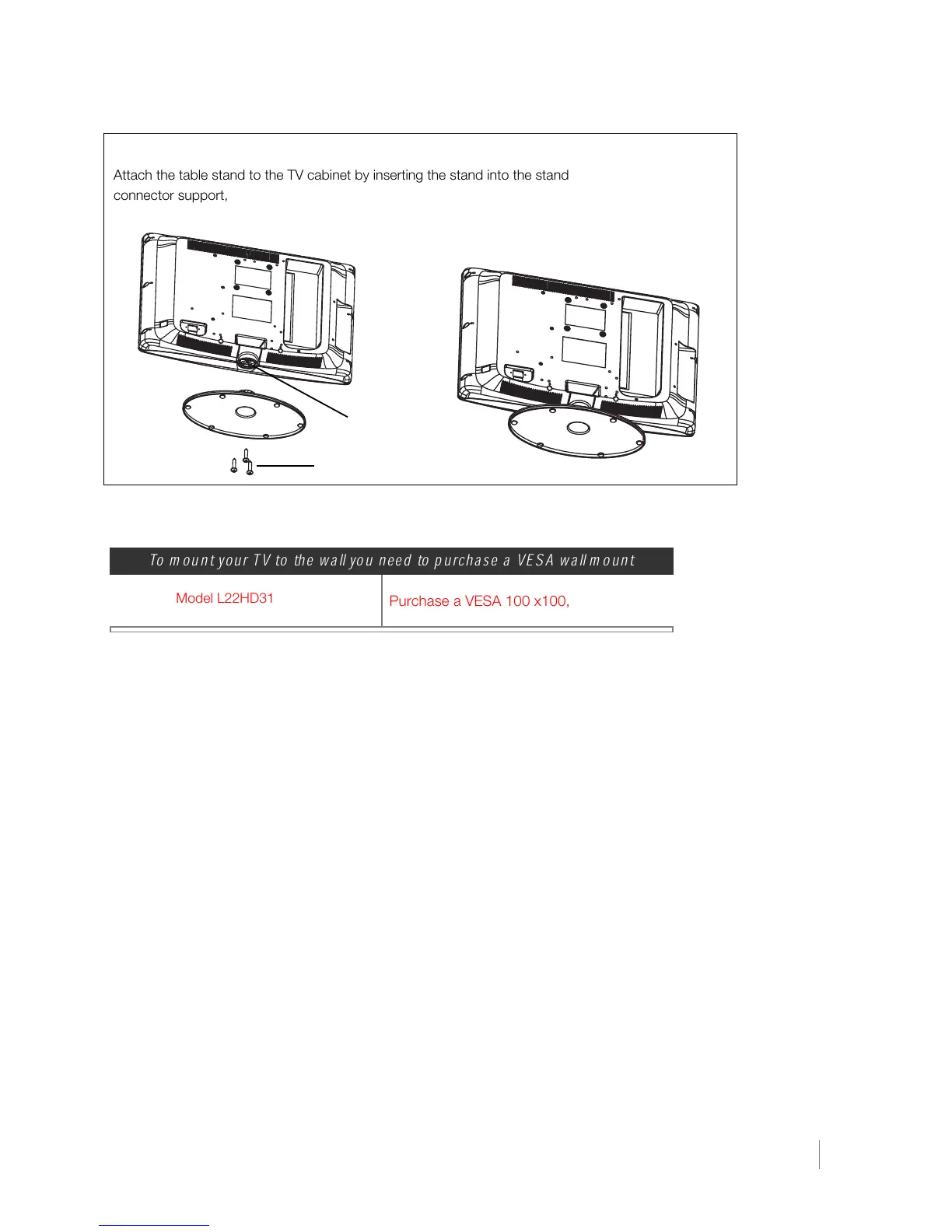

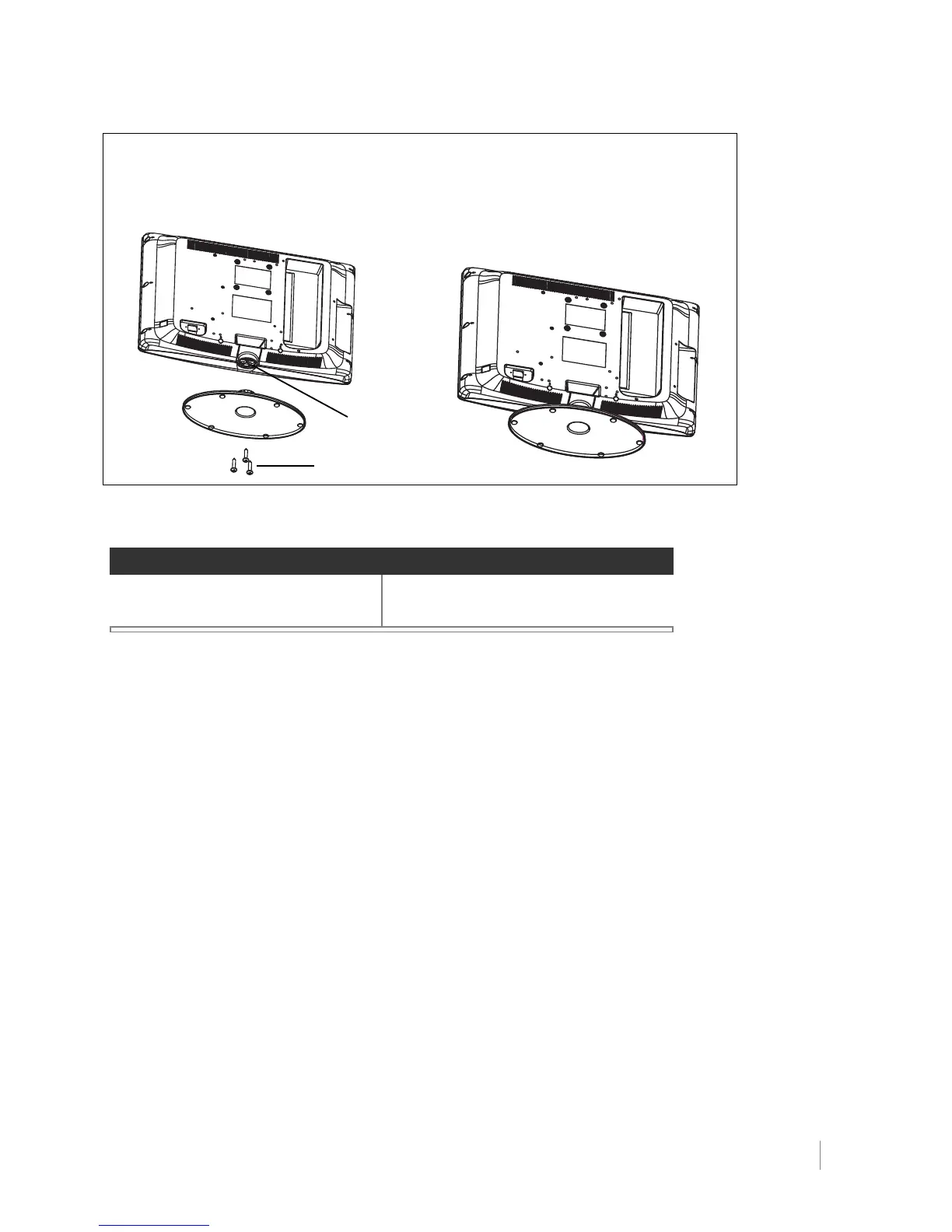

Attach the table stand to the TV cabinet by inserting the stand into the stand
connector support, and aligning the three screw holes, from the bottom, tighten-
ing three M4 St-screws with a screwdriver.
3 size M4 St-screws
Stand Connector Support
To Next Page
