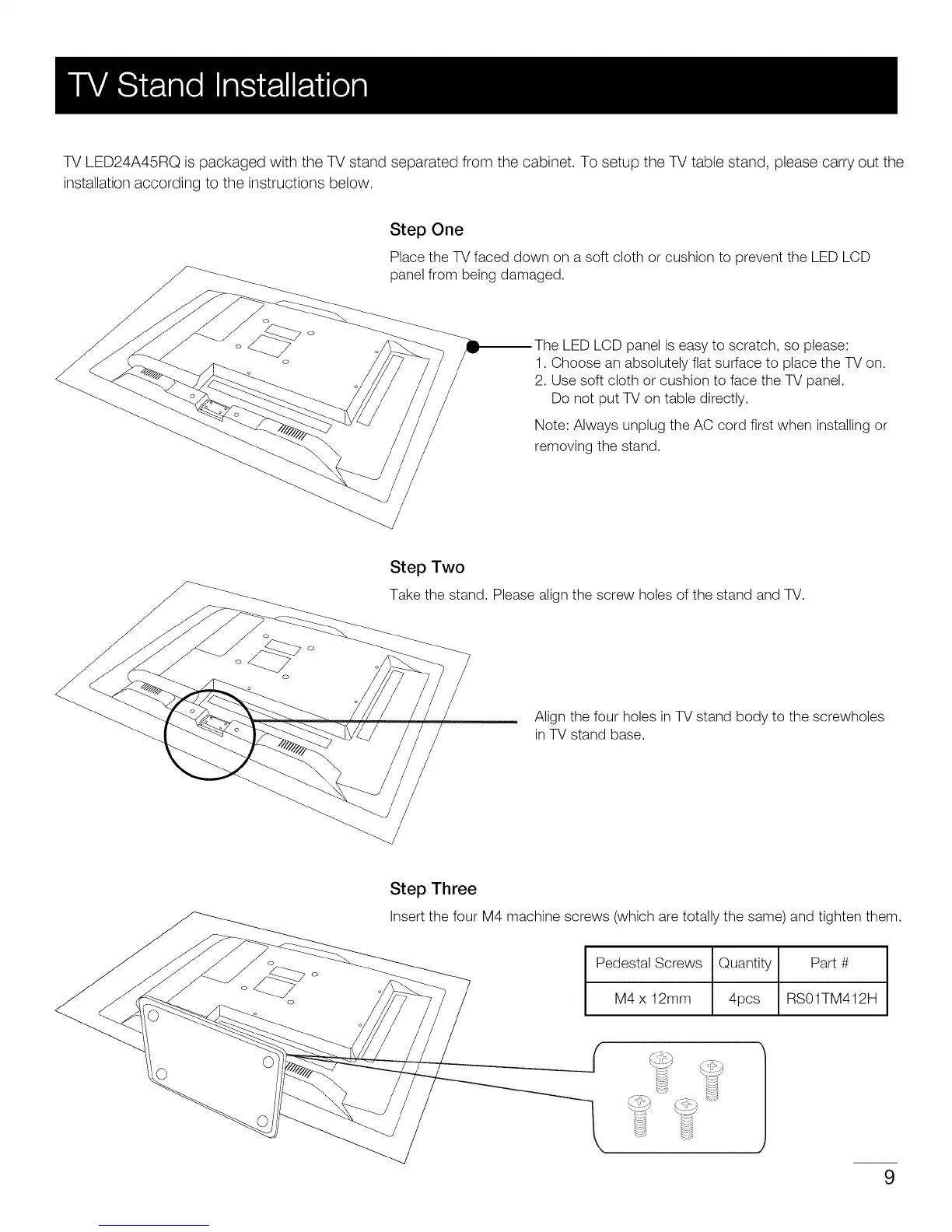

TV LED24A45RQ is packaged with the TV stand separated from the cabinet. To setup the TV table stand, please carry out the
installation according to the instructions below.
Step One
Place the TV faced down on a soft cloth or cushion to prevent the LED LCD
panel from being damaged.
The LED LCD panel is easy to scratch, so please:
1. Choose an absolutely flat surface to place the TV on.
2. Use soft cloth or cushion to face the TV panel.
Do not put TV on table directly.
Note: Always unplug the AC cord first when installing or
removing the stand.
Step Two
Take the stand. Pleasealign the screw holes of the stand and TV.
Align the four holes in TV stand body to the screwholes
in TV stand base.
Step Three
Insertthe four M4 machine screws (which are totally the same) and tighten them.
Pedestal Screws Quantity Part #
M4 x 12mm 4pcs RS01TM412H
1
9
