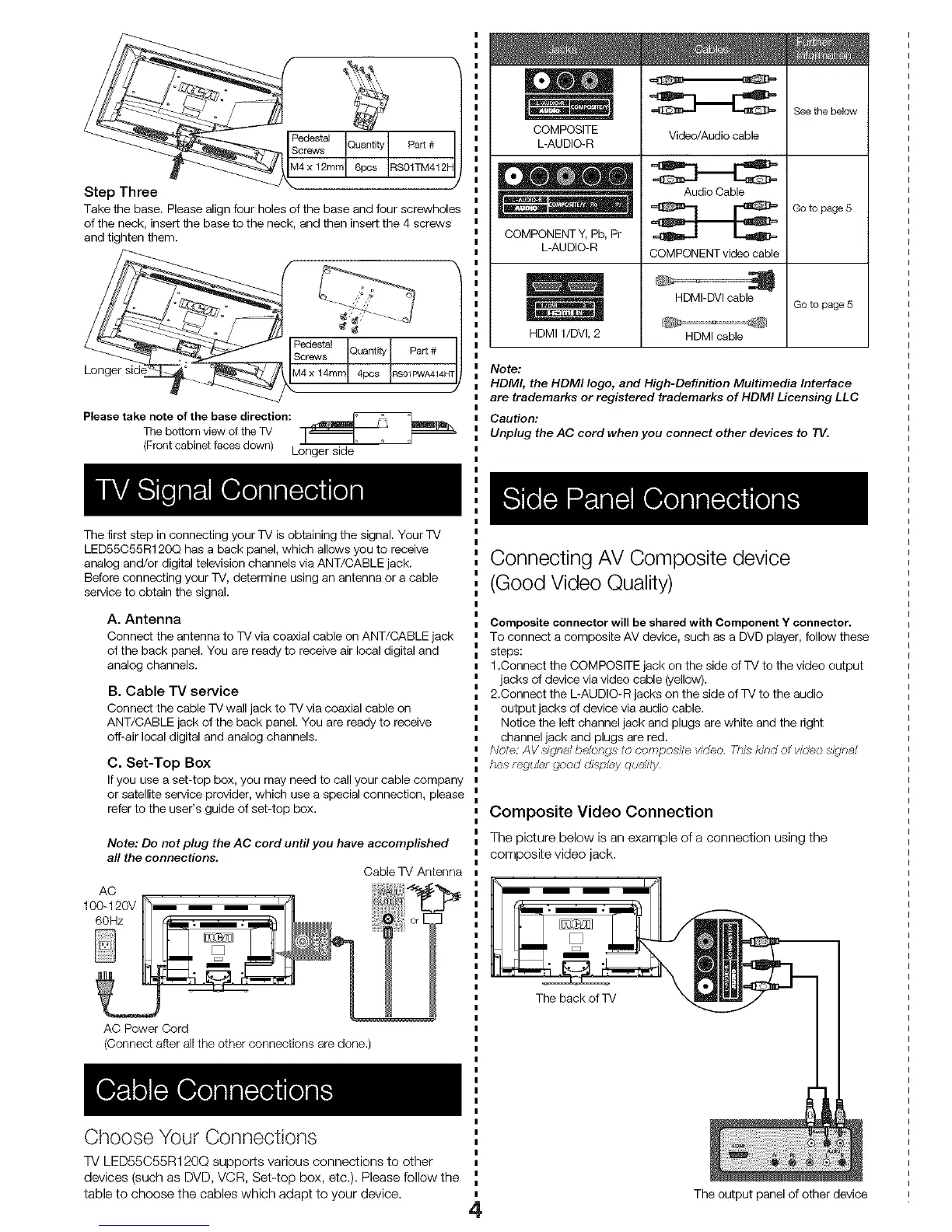

Take the base. Please align four holes of the base and four screwholes i
of the neck, insert the base to the neck, and then insert the 4 screws
and tighten them.
_e_t_l IQuantml Pa_#
L°n___1_r:14rnml 4pcs i......... ,
Please take note of the base direction: I
The bottom view of the 1V
(Front cabinet faces down) Longer side
The first step in connecting your TV is obtaining the signal. Your TV
LED55055R120Q has a back panel, which allows you to receive
analog and/or digital television channels via ANT/CABLE jack.
Before connecting your TV, determine using an antenna or a cable
service to obtain the signal.
A. Antenna
Connect the antenna to TV via coaxial cable on ANT/CABLE jack
of the back panel. You are ready to receive air local digital and
analog channels.
B. Cable TV service
Connect the cable TV wall jack to TV via coaxial cable on
ANT/CABLE jack of the back panel. You are ready to receive
oft-air local digital and analog channels.
C. Set-Top Box
If you use a set-top box, you may need to call your cable company
or satellite service provider, which use a special connection, please
refer to the user's guide of set-top box.
Note: Do not plug the AC cord until you have accomplished
all the connections.
Cable TV Antenna
COMPOSITE
L-AUDIO-R
COMPONENTY, Pb, Pr
L-AUDIO-R
HDMI 1/DVl, 2
Video/Audio cable
Audio Cable
COMPONENT video cable
HDMI-DVI cable
HDMI cable
See the below
Go to page 5
Go to page 5
Note:
HDMI, the HDMI logo, and High-Definition Multimedia Interface
are trademarks or registered trademarks of HDMI Licensing LL C
Caution:
Unplug the AC cord when you connect other devices to TV.
Connecting AV Composite device
(Good Video Quality)
Composite connector will be shared with Component Y connector.
To connect a composite AV device, such as a DVD player, follow these
steps:
1.Connect the COMPOSITE jack on the side of TV to the video output
jacks of device via video cable (yellow).
2.Connect the L-AUDIO-R jacks on the side of TV to the audio
output jacks of device via audio cable.
Notice the left channel jack and plugs are white and the right
channel jack and plugs are red.
Note: AV d_'#nal belongs to cos"lposi/e vi#ee. Tbi_ kfld of vkJeo si_?eal
has rerjular rjood disp/ay qaal#y.
Composite Video Connection
The picture below is an example of a connection using the
composite video jack.
AC Power Cord
(Connect after all the other connections are done.)
Choose "YourConnections
TV LED55C55R120Q supports various connections to other
devices (such as DVD, VCR, Set-top box, etc.). Please follow the
table to choose the cables which adapt to your device.
4
The back of TV
The output panel of other device

RCA LED55C55R120Q Specifications

General

Comb filter	3D
Screen shape	Flat
Response time	6.5 ms
Display diagonal	54.6 \
Native aspect ratio	16:9
Supported video modes	480i, 480p, 720p, 1080i, 1080p
Contrast ratio (typical)	5000:1
Viewing angle, horizontal	176 °
Motion interpolation technology	-
Tuner type	Analog & digital
Analog signal format system	NTSC
Digital signal format system	ATSC
Sound modes	Dynamic, Standard
RMS rated power	16 W
Number of speakers	2
Product color	Black
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	1 W
Power consumption (typical)	89 W
Composite video in	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Certification	UL / FCC
Number of OSD languages	3
On Screen Display (OSD) languages	ENG, ESP, FRE
Package depth	200.66 mm
Package width	1356.36 mm
Package height	812.8 mm
Package weight	24200 g

Weight and Dimensions

Depth (with stand)	269.24 mm
Height (with stand)	805.18 mm
Depth (without stand)	106.68 mm
Width (without stand)	1264.92 mm
Height (without stand)	746.76 mm
Weight (without stand)	21200 g
