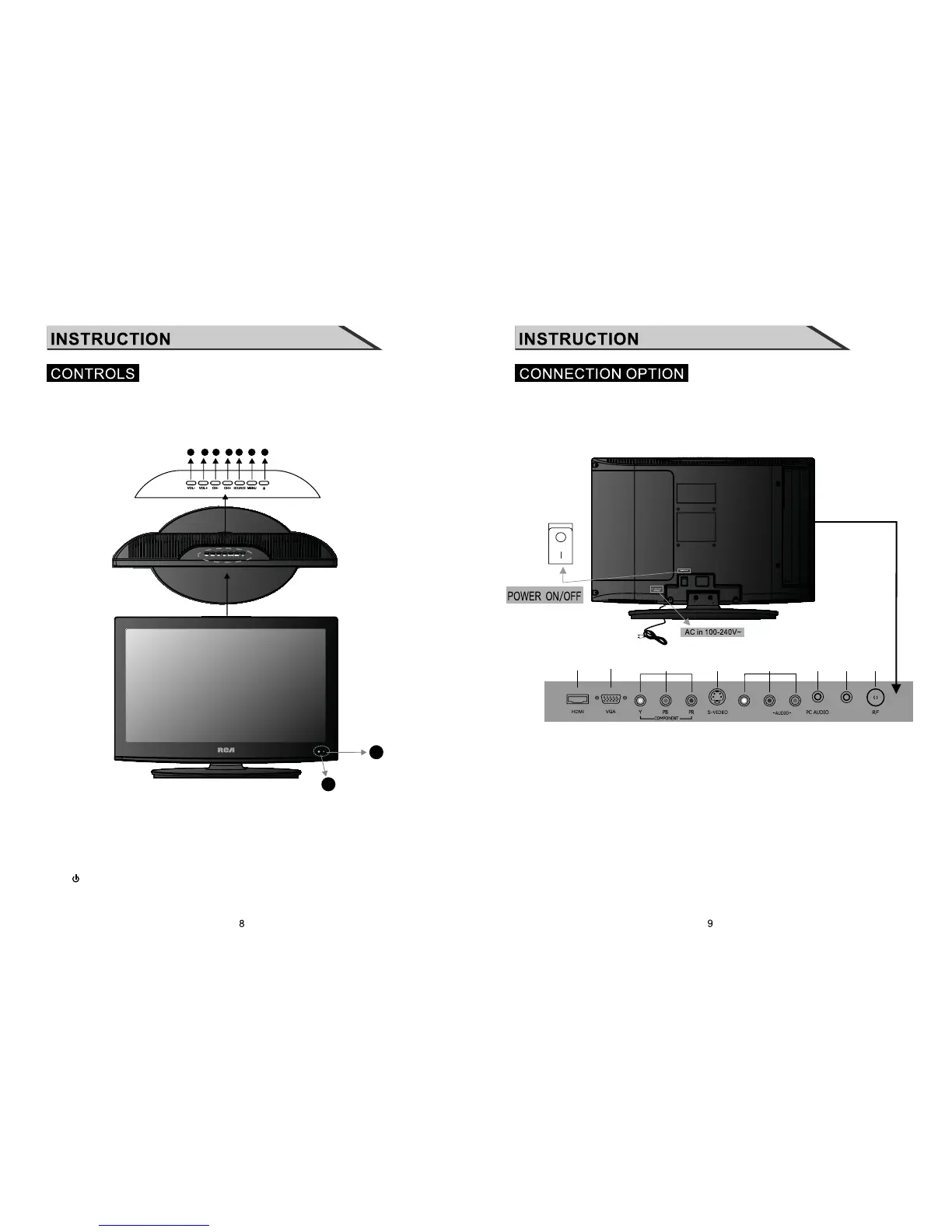

Back Connection Panel
This is the back panel LCD TV
■ This is a simplified representation of a back panel.
Here shown may be somewhat different from your TV.
This manual explains the features available on the model of 19 inch LCD TV.
Front Panel Controls
■ This is a simplified representation of a front panel. Here shown may be somewhat
different from your TV.
(1): (VOL-) Press Volume- to decrease the volume.
(2): (VOL+) Press Volume+ to increase the volume.
(3): (CH-) Press the button to down the channel.
(4): (CH+) Press the button to up the channel.
(5): (SOURCE) Press this button to select AV source or TV source.
(6): (MENU) Press this button to display the OSD menu.
When the OSD menu is on, press this button to exit the menu.
(7): ( ) Press this button to standby mode.
(8): Indicator.
(9): Remote control sensor window.
(01) HDMI Input: Connect HDMI signal.
(02) PC VGA Input: Connect PC VGA signal output.
(03)
YPBPR(Y:GREEN, PB:BLUE, PR:RED) Video Input: Connect the component image output
of your AV devices here. Then Connect audio output of your AV devices to R and L.
(04) S-VIDEO Input: Connect S-video output of your AV device.
(05) AV Input: Connect composite video output of your AV device and Connect
the audio output of your AV devices to R and L.
(06) PC AUDIO Input: Connect PC audio input.
(07) EARPHONE output: Connect to headphone output(
3.5mm).
(08) RF: Antenna Input (75 ohm).
(09) AC100~240V: AC 100~240V to this input.
(10) POWER
ON/OFF: (Main Power Switch) Power turn on/off.
L R
EARPHONE
9
8
2
1
3
6
4
7
5
VIDEO
1
2
3
4
5
6
7
8
/
9
10
