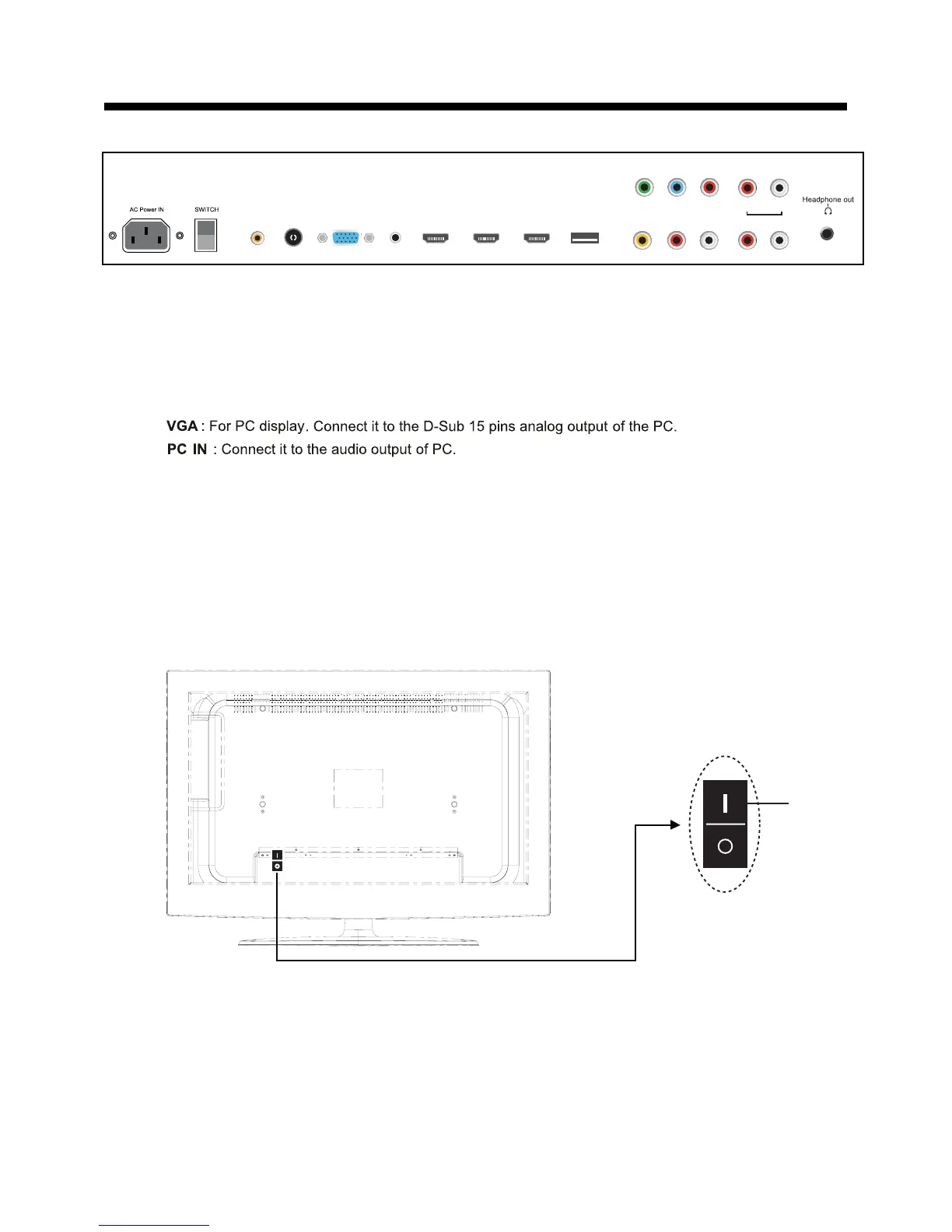

2. Rear View
Headphone out
: Connect it to your headphone or audio equipments.
RF
: Connect antenna or cable 75 Ohm coaxial to receive TV signal.
COAX : Digital audio output.
: Connect it to the HDMI output of video device.
HDMI1/2/3
L/R in
: Connect them to audio output of video device.
(Shared with YPbPr)
AUDIO L/R out
: Connect them to audio equipments.
VIDEO : Connect it to video output of video device.
USB(Service)
: For service use only.
AC POWER IN: Connect it to AC100-240V~ 50/60Hz power supply with the mains cable.
SWITCH:
SWITCH
POWER ON/OFF and need to enlarge the position of this power switch to alert users to power on
this switch first prior to operate the product.
Coax RF VGA PC-IN HDMI1 HDMI2 HDMI3
USB
(Service)
R in L inVideo
R
AUDIO OUT
L
YPb Pr
RL
YPbPr : Connect them to the video output terminal of DVD.
L/R : Connect them to the audio output terminal of DVD
6
ON
After you connect the power cord into the power socket, make sure the power cord is
fully inserted into the unit. Then press the power ON/OFF switch to “ON” position as
shown left.
