RCA RLDED3230A-RR

CONTROL REFERENCE GUIDE

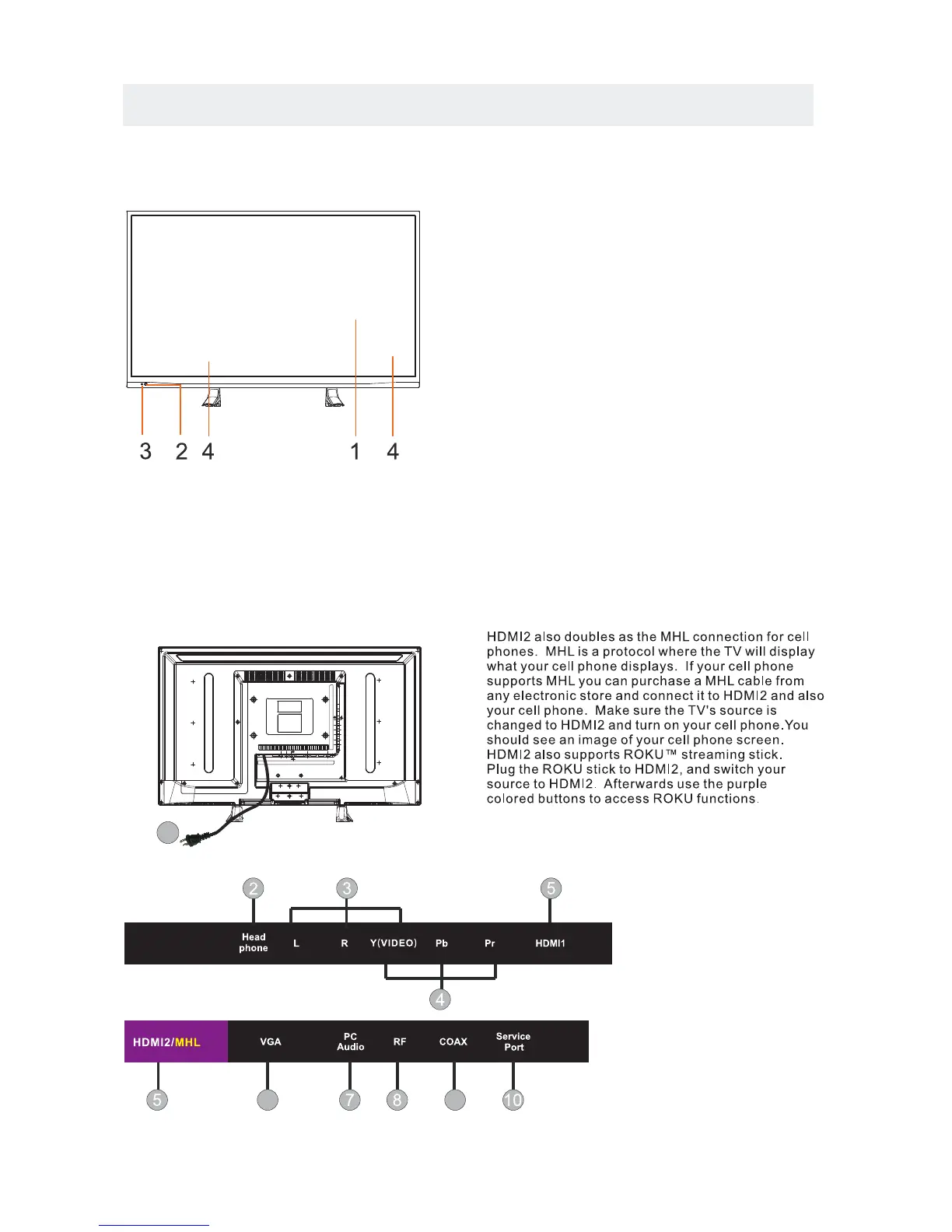

FRONT VIEW
6
BACK VIEW
1.Color Screen
2.Remote Sensor
Do not block this sensor or the
remote control will not work.
3.Standby Indicator
Indicates whether the unit is ON
or in STANDBY (OFF) mode.
Light in red: The unit is in STANDBY.
Light in blue:The unit is turned ON.
4. Speakers
1.Power Cor
2.Headphone Jack
3.AV IN Jack
4.COMPONENT IN Jack
5.HDMI IN Jacks
6.VGA IN Jack
7.PC ADUIO IN Jack
8.TV ANTENNA Terminal
9.Coax OUT Jack
10.Service Port
