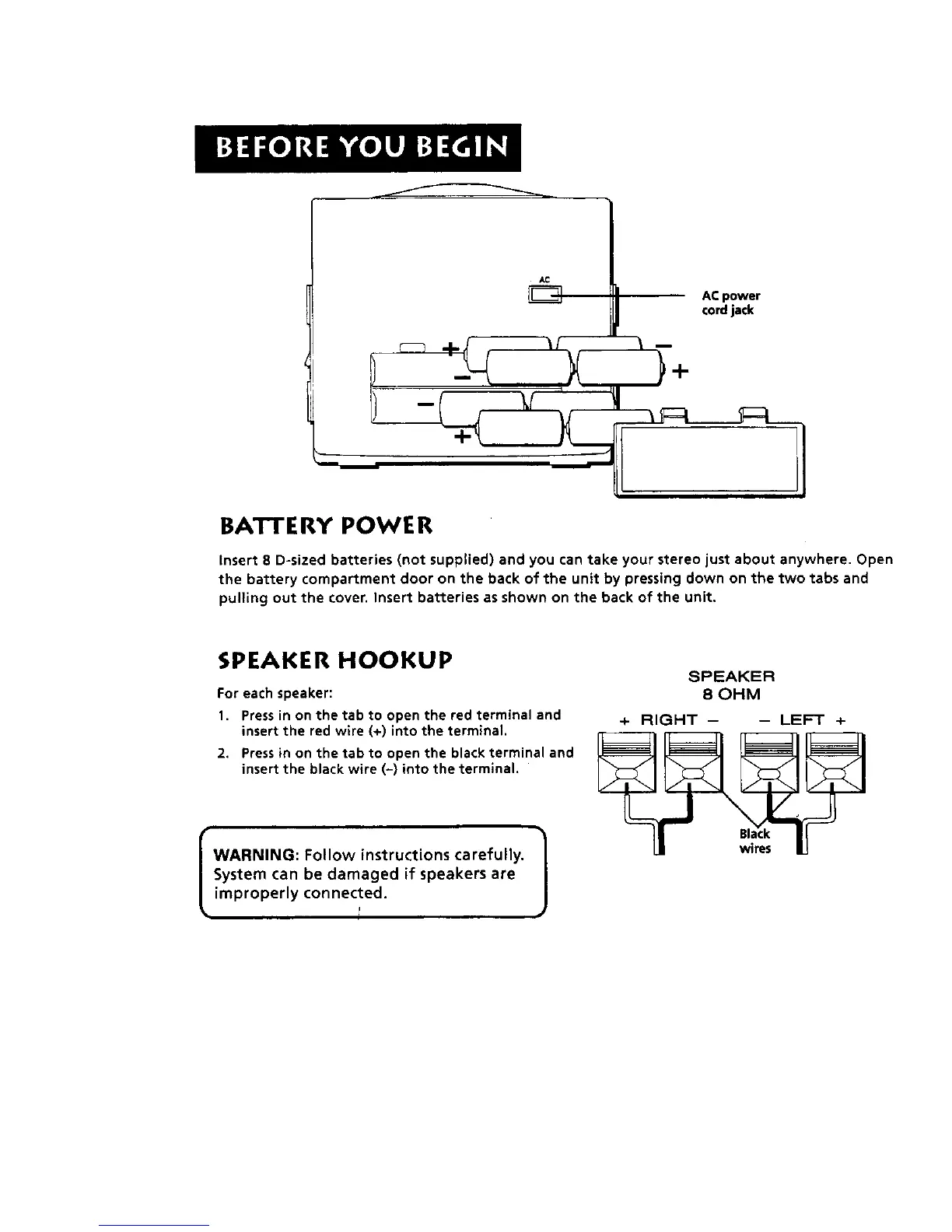

AC power
cordjack
BATTERY POWER
Insert 8 D-sized batteries (not supplied) and you can take your stereo just about anywhere. Open
the battery compartment door on the back of the unit by pressing down on the two tabs and
pulling out the cover. Insert batteries as shown on the back of the unit.
SPEAKER HOOKUP
For each speaker:
1. Press in on the tab to open the red terminal and
insert the red wire (+) into the terminal.
2. Press in on the tab to open the black terminal and
insert the black wire (-) into the terminal.
WARNING: Follow instructions carefully. 1
System can be damaged if speakers are
improperly connected.
SPEAKER
8 OHM
+ RIGHT -- -- LEFT +
__\wi_s
