RCA RPJ106

Connect VGA Show The Image On Projector Screen
Please refer to the following table to adjust the output signal from computer
NOTE: In order to get the sound from the unit, please connect AV IN cable when
you connect VGA input.
Type R
Frequency Field Frequency
PC
VGA 640x480
31.5 60
34.7 70
37.9 72
37.5 75
SVGA 800x600
31.4 50
35.1 56
37.9 60
46.6 70
48.1 72
46.9 75
XGA 1024x768
40.3 50
48.4 60
56.5 70
12

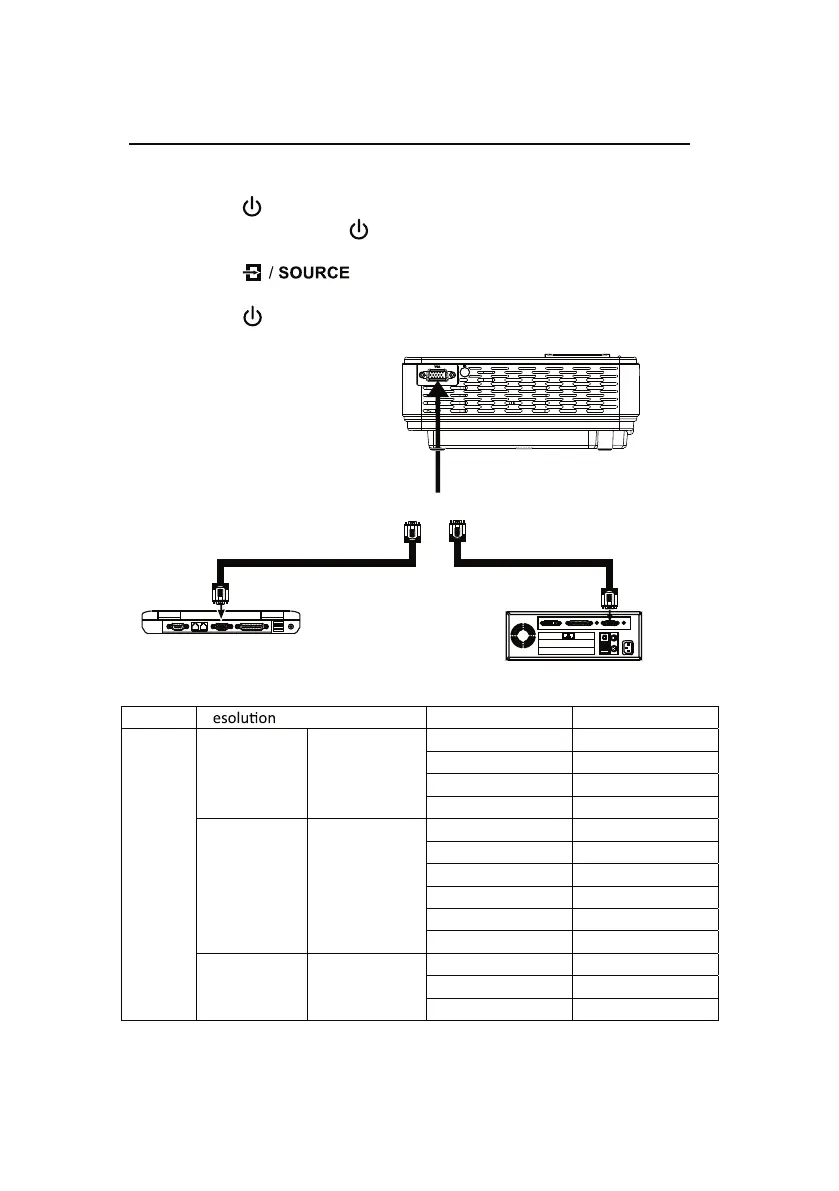

Follow below picture to connect VGA cable and device.
1. Turn off the unit before connect VGA cable.
2. Press the button to turn off power of your projector before connection.
3. After connect, press the button to turn on unit and power indicator will
light GREEN
4. Press the button to select VGA mode and the video of
VGA device will show on projector screen
5. Press the button to turn off unit power.
To VGA PORT
NOTE BOOK
DECK TOP
OR
COMPUTER CABLE
COMPUTER CABLE
VGA
IR
