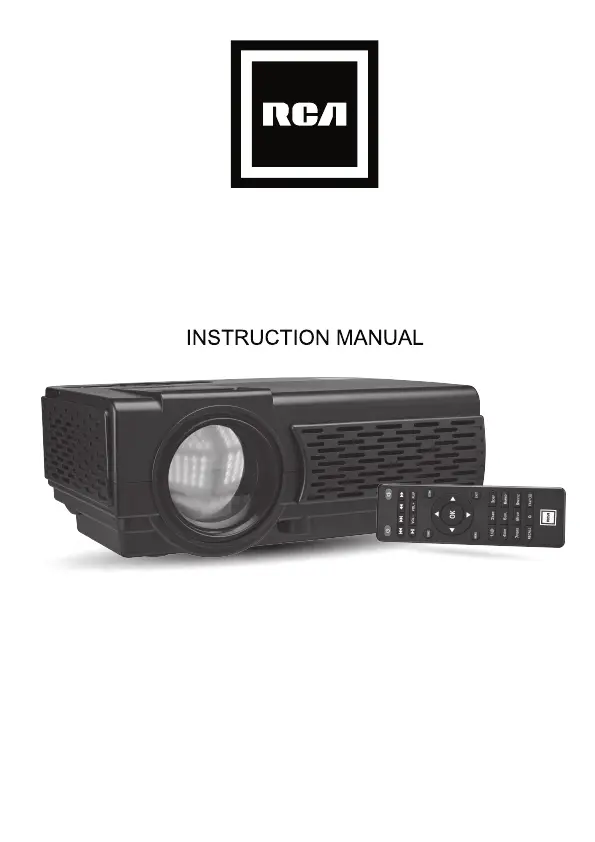

RCA RPJ107-BLACK - User Manual

To Next Page

1. Read these Ins

2. Keep these I

3. Heed all Warnings.

4. Follow all ins

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any

openings. Install in accordance with the

manufacturer’s ins

8. Do not install near any heat sources such as radiators, heat registers, stoves, or

other apparatus (including ampliﬁer) that product heat.

9. Protect the power cord from being walke

convenience receptacles, and the point where they exit from the apparatus.

10. Only use a

chments/accessories speciﬁed by the manufacturer.

11. Unplug this apparatus during lightning storms or when unused for long periods

12. Refer all servicing to qualiﬁed service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is

damaged, liquid has been spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does not operate normally, or

has been dropped.

13. Use only with a cart, stand, tripod, bracket, or table speciﬁed by

the manufacturer or sold with the apparatus. When a cart is

to avoid injury fr .

MODEL NO.

RPJ107-BLACK

Home Theater Projector with Bluetooth

PLEASE READ BEFORE OPERATING THIS EQUIPMENT

This product is manufactured and sold by Curtis International Ltd.

RCA, the RCA logo, the two dogs (Nipper and Chipper) logo, are registered

trademarks or trademarks of RCA Trademark Management and are used

under license by Curtis International Ltd. Any other product, service,

company, trade or product name and logo referenced herein are neither

endorsed nor sponsored by RCA Trademark Management or its affiliates.

Ideal for dark viewing environments for optimal performance.

Please note:Projector brightness is measured in ANSI lumens.

Your viewing environment is the deciding factor on how many lumens

your projector needs.

Warnings and P

1. Do not look directly into the projector light.

2. Don’t touch the project lens.

3. Mains adapter is used as disconnect device and it should remain readily

operable during intended use. In order to disconnect the apparatus from

the mains completely, the mains plug should be disconnected from the

mains socket outlet completely.

4. CAUTION: Use of controls or adjustments or performance of procedures

other than those specified may result in hazardous radiation exposure.

5. WARNING: Changes or modified to this unit not expressly approved by

the party responsible for compliance could void the user’s authority to

operate the equipment.

6. WARNING: Use of this unit near fluorescent lighting may cause

interference regarding use of the remote. If the unit is displaying erratic

behavior move away from any fluorescent lighting, as it may be the

cause.

7. WARNING: Shock hazard - Do Not Open.

8. Caution and marking information is located at the rear or bottom of the

apparatus.

9. WARNING: To reduce the risk of fire or electric shock, do not expose this

apparatus to rain, moisture, dripping, or splashing.

10. Objects filled with liquids, such as vases, shall not be placed on the

apparatus.

FCC Warning

FCC ID: 2ANH7696PJ28BT

This device complies with Part 15 of the FCC rules. Operation is subject to the

following two conditions: (1) this device may not cause harmful interference,

and (2) this device must accept any interference received, including

interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for

a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or more of

the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

In The Box

Remote

Main unit

Lens Cover User ManualAC Power Adapter

ABC

DEF

GHI

JKL

MNO

PQRS

TUV

WXYZ

LIP

EXIT

FAV/

RECAL L

Table of Contents

Important Safety Instructions - - - - - - - - - - - - - - - - - - - - - - - - - - - - P1

Additional Warnings and Precautions - - - - - - - - - - - - - - - - - - - - - - P2

FCC Warning - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P3

In The Box - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P3

Table of Contents - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P4

Remove & Close the Lens Cover - - - - - - - - - - - - - - - - - - - - - - - - - P5

Placing Your Projector - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P5

To Reduce Image Distortion - - - - - - - - - - - - - - - - - - - - - - - - - - - - P6

Distance Between The Projector And Screen - - - - - - - - - - - - - - - - P6

Installing your Projector in the Ceiling - - - - - - - - - - - - - - - - - - - - - P6

Adjust the Vertical Location

- - - - - - - - - - - - - - - - - - - - - - - - - - - - P7

Adjust the Focus and Keystone - - - - - - - - - - - - - - - - - - - - - - - P7

Controls of Remote - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P8

Install / Remove Battery Of Remote - - - - - - - - - - - - - - - - - - - - - - - P8

Controls of Projector - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P9

Install Power Adapter - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P10

Main Button Operation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P10

Connect HDMI Show the Image On Projector Screen

Connect AV Show The Image On Projector Screen - - - - - - - - - - - -

P11

Connect VGA Show The Image On Projector Screen - - - - - - - - - - - P12

Connect Audio Output (Aux Out / Line Out / Earphones) - - - - - - - - P13

Install USB Device And Micro Sd Card “TF” - - - - - - - - - - - - - - - - - P13

Using TF Card and USB Playback (Media Player) - - - - - - - - - - - - P14

Using Bluetooth Playback - - - - - - - - - - - - - - - - - - - - - - - - P15

Using Projector Menu 1.0 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P16

Using Projector Menu 2.0 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P17

Using Projector Menu 3.0 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P18

Specification

Warranty Card

s - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

P19

P20

- - - - - - - - - P11

Remove & Close The Lens Cover

Placing Your Projector

Your projector can be installed in four different configurations (see picture below):

Remove the lens cover before using

Close the lens cover when unit not using

Front Ceiling

Rear Ceiling

Rear Table

Front Table

Front Table:

Select this location with the projector placed near

the floor in front of the screen. This is the most

common way to position the projector for quick

setup and portability.

Rear Table:

Select this location with the projector placed near

the floor behind the screen.

NOTE: That a special rear projection screen is

required.

Front Ceiling:

Select this location with the projector suspended

upside-down from the ceiling in front of the screen.

NOTE: A projector mount is required to install the

projector in a ceiling.

Rear Ceiling:

Select this location with the projector suspended

upside-down from the ceiling behind the screen.

NOTE: A projector mount is required to install the

projector in a ceiling.

A special rear projection screen is required.

LENS COVER

REMOVE

LENS COVE R

To Reduce Image Dist

Distance Between The Projector And Screen

Measure the distance between the projector and where you want to position

the screen. This is the projection distance.

Installing your Projector in the Ceiling

SCREEN SIZE

DISTANCE

Distance

1.16m

1.35m

1.51m

1.81m

2.15m

Screen Size

37 inch

45 inch

50 inch

60 inch

72 inch

• Move the projector as close to the center of

the screen as possible.

• The light beam from the projector should be

perpendicular to the screen for a rectangular

or square image.

When installing the projector in the ceiling, please purchase a projector mount

recommended by an installation professional and follow the instructions that

come with the mount.

Before installing the projector in the ceiling, please check to make sure the

ceiling structure can support the weight of the projector and the mount. If in

doubt, please ask the advice from an installation professorial.

NOTE: Projector mount and screw(s) not included

Adjust The V

Follow below picture to adjust the vertical location.

Adjust The Focus And Keystone

SCREEN

PROJECTOR

VERTICAL

DIMENSION

VERTICAL

DIMENSION

SCREEN

PROJECTOR

VERTICAL

DIMENSION

SCREEN

PROJECTOR

HDMI USB VGA

Adjust this knob ( ANGLE ADJ. knob)

to ﬁne- tune the display angle to higher.

KEYSTONE ADJ. KNOB

FOCUS ADJ. KNOB

Then sharpen the image

by rotating focus knob.

Follow below picture to adjust the focus and trapezoidal screen.

Adjust the focus by turning the knob while observing the image pixels near the

center of the screen. Optimal focus is obtained when the pixels are clearly

visible. Depending on the projected screen size, the focus near the screen

edges may be less sharp than the screen center.

Keystone image is created when the projector lens is projected from above or

below the center of the screen. Keystone correction restores the distorted

image to a rectangular or square shape.

Controls Of Remote

Install / Re Of Remote

NOTES:

BATTERY DOOR

Remove the battery compartment cover on the back of your remote by carefully

sliding to open. The battery cover can then be lifted away. Fit the correct

batteries (not included), referring to the polarity markings. Finally, replace the

cover.

• Batteries shall not be exposed to

excessive heat such as placing under

the sunlight or near a fire.

• Please make sure the batteries are

installed with their correct polarities.

• Do not mix old and new batteries.

• Use only the same type of batteries.

• Do not dispose of the batteries in fire,

battery may explode or leak.

• Do not recharge a non-rechargeable

battery

ABC1/

DEF

GHI

JKL

MNO

PQR S

TUV

WXY Z

LIP

MEN U

EXIT

FAV/

RECALL

EXIT

1. LENS

2. ANGEL ADJ. Knob

3. VGA IN Port

4. IR Sensor

5. FOCUS ADJ. Knob

6. TRAPEZOIDAL ADJ. Knob

9. POWER Indicator

10.

Controls Of Projector

11. R

12. s

13. M

14. S

15. EAR PHONE Jack

16. AV IN Jack

17. TF Card Slot

18. HDMI 1 & 2 Ports

19. USB Port

20. DC IN Jack

VGA

HDMI 2

DMI 1

USB

17 18

Install Power Adapter

Follow below picture to connect power adapter

Connect small end of adapter FIRST. Plug the adapter body to power outlet.

- Press the button to turn on unit, press again to turn off.

/ SOURCE - Press the button to select input source.

/ MENU - Press the button to enter projector menu.

- Press the buttons to navigate and select screen item of menu.

/ EXIT - Press the button to return to previous status or exit the menu.

- Press the buttons to fast search forward and rewind on USB / TF.

- Press the buttons to search next or previous file on USB / TF.

VOL+ / VOL - Press the buttons to select the sound level.

- Press the button to play/pause the playback of file on USB / TF card.

FLIP - Press the button to rotate / mirror projector screen

ZOOM - Press the button to select image scale.

- Press to mute the audio. Press again to resume.

WARNING:

Before connecting to the power supply, ensure that

the supply corresponds to the information on the

rating label at the back of the apparatus.

TF CARD

HDMI 1

HDMI 2

DC IN

USB

Refer to the following picture to connect a set top box, a BD/DVD player or a

streaming player to the HDMI input.

1. Turn off the unit before connect HDMI cable.

2. After connection, press the button to turn on unit and power indicator

will light GREEN

3. Press the button to select HDMI 1 or HDMI 2 and the

video from the connected device will be shown on projector screen.

4. Press the button to turn off unit power.

Follow below picture to connect AV cable and device.

1. Turn off the unit before connect AV cable.

2. Use AV cable to connect follow below figure

3. After connect, press the button to turn on unit and power indicator will

light GREEN

4. Press the button to select AV mode and the video of AV

device will show on projector screen

5. Press the button to turn off unit power

Important Note:

If there is no sound from the internal speakers when playing media

contents from a set top box, BD/DVD or streaming players connecting to

the HDMI input, please check the set top box or the player's digital audio

settings and make sure it is set to "PCM Stereo" mode.

Connect HDMI

Show The Image On Projector Screen

Connect AV

Show The Image On Projector Screen

VIDEO CABLE

LEFT CHANNEL

RIGHT CHANNEL

F CARD

DMI 1 HDM I 2

DC I

USB

HDMI CABLE

CABLE NOT INCLUDED

Video Player

F CARD

DMI 1 HDMI 2

DC I

USB

HDMI Stre aming player (n ot included)
