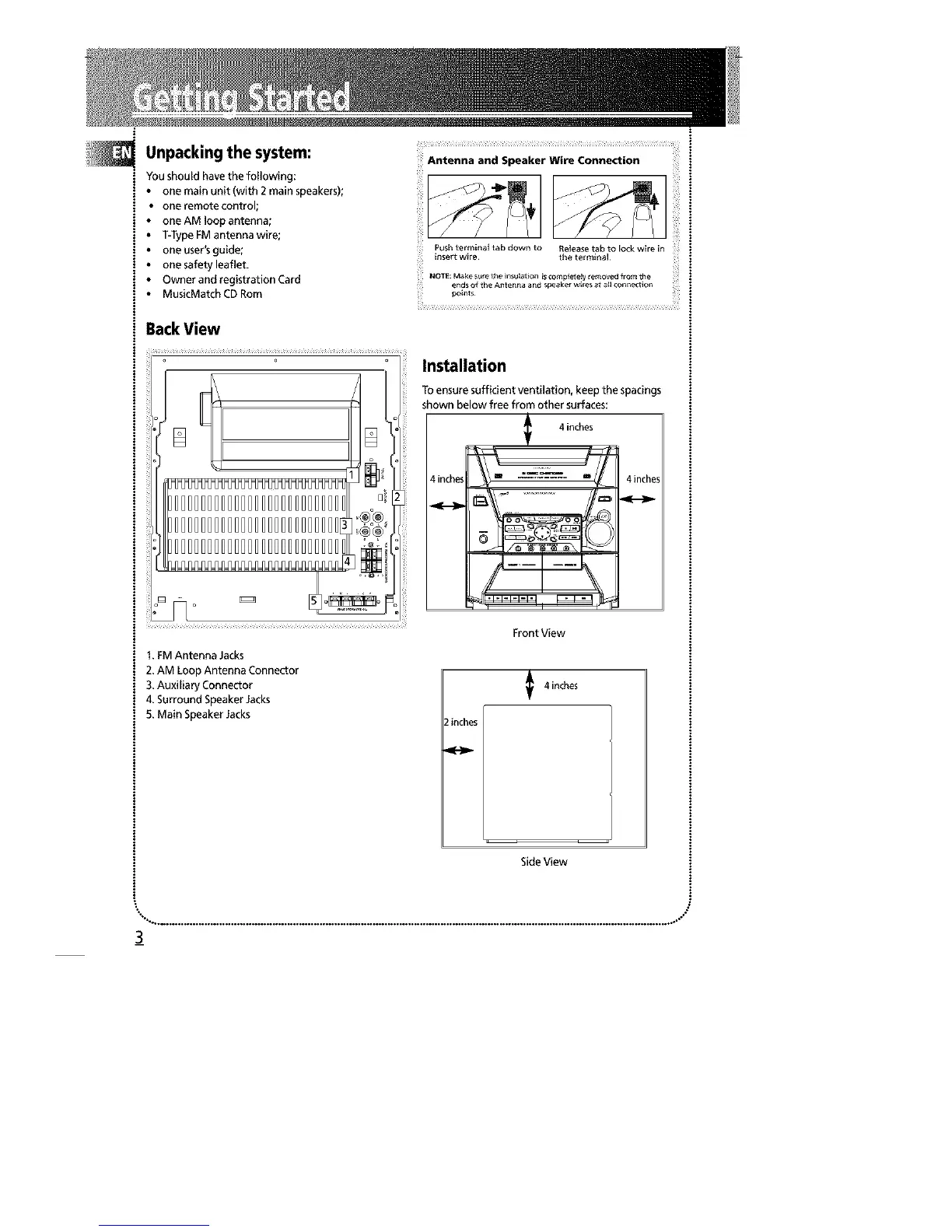

Unpacking the system:
You should have the following:
one main unit (with 2 main speakers);
one remote control;
one AM loop antenna;
T-TypeFMantenna wire;
one user's guide;
one safety leaflet.
Owner and registration Card
MusicMatch CD Rom
BackView
[
Di
Antenna and Speaker Wire Connection
Push terminal tab down to Release tab to lock wire in
insert wire the terminal
i
NOTE: Make sure the iflsulation is cornplelely removed from the
ends of the Antenna and speak_ wires at all connection
points¸
Installation
Toensure sufficient ventilation, keep the spacings
shown below free from other surfaces:
4inches
4 inches "--_ .... 4inche!
o_o
I. FM Antenna Jacks
2.AM Loop Antenna Connector
3.Auxiliary Connector
4. Surround SpeakerJacks
5.Main Speaker Jacks
Front View
4 inches
! inches
SideView
3_
