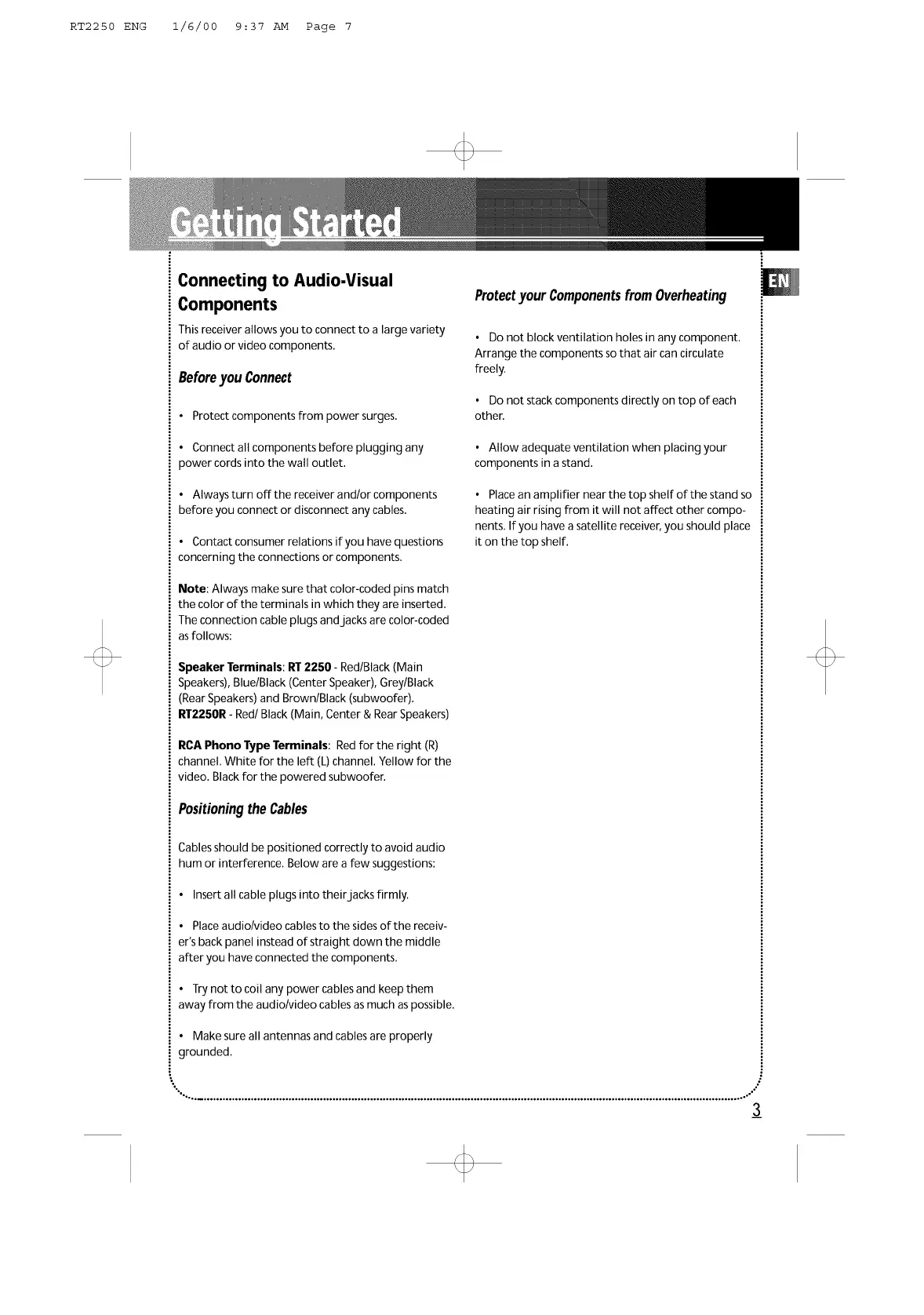

Connecting to Audio-Visual
Components
This receiver allows you to connect to a large variety
of audio or video components.
BeforeyouConnect
• Protect components from power surges.
• Connect all components before plugging any
power cords into the wall outlet.
• Always turn off the receiver and/or components
before you connect or dmconnect any cables.
• Contact consumer relations if you have questions
concerning the connections or components.
Note.' Always make sure that color-coded pins match
the color of the terminals in which they are inserted.
The connection cable plugs andjacks are color-coded
asfollows:
Speaker Terminals: RT 2250- Red/Black(Main
Speakers),Blue/Black (Center Speaker), Grey/Black
(RearSpeakers) and Brown/Black (subwoofer).
RT2250R - Red/Black (Main, Center & Rear Speakers)
RCAPhono Type Terminals: Red for the fight(R)
channel. White for the left (L) channel. Yellow for the
video. Black for the powered subwoofer.
PositioningtheCables
Prote tyourComponentsfromOverheating
• Do not block ventilation holes in any component.
Arrange the components sothat air can circulate
freely.
• Do not stack components directly on top of each
other.
• Allow adequate ventilation when placing your
components in a stand.
• Race an amplifier near the top shelf of the stand so
heating air rising from it will not affect other compo-
nents. If you have a satellite receiver, you should place
it on the top shelf.
Cables should be positioned correctly to avoid audio
hum or interference. Below are a few suggestions:
• Insert all cable plugs into their jacks firmly.
• Place audio/video cables to the sides of the receiv-
er's back panel instead of straight down the middle
after you have connected the components.
• Try not to coil any power cables and keep them
away from the audio/video cables as much as possible.
• Make sure all antennas and cables are properly
grounded.
"., ....................................................................................................................... oO-"
3
