NOTES:
• One loading of batteries will last for 1 year under normal use.
• If you do not intend to use the remote controller for a long period of time, remove them
to avoid damage due to leakage.
• Do not use old and new batteries together.
• The batteries (battery pack or batteries installed) shall not exposed to excessive heat
such as sunshine, fire or the like.
External Connection

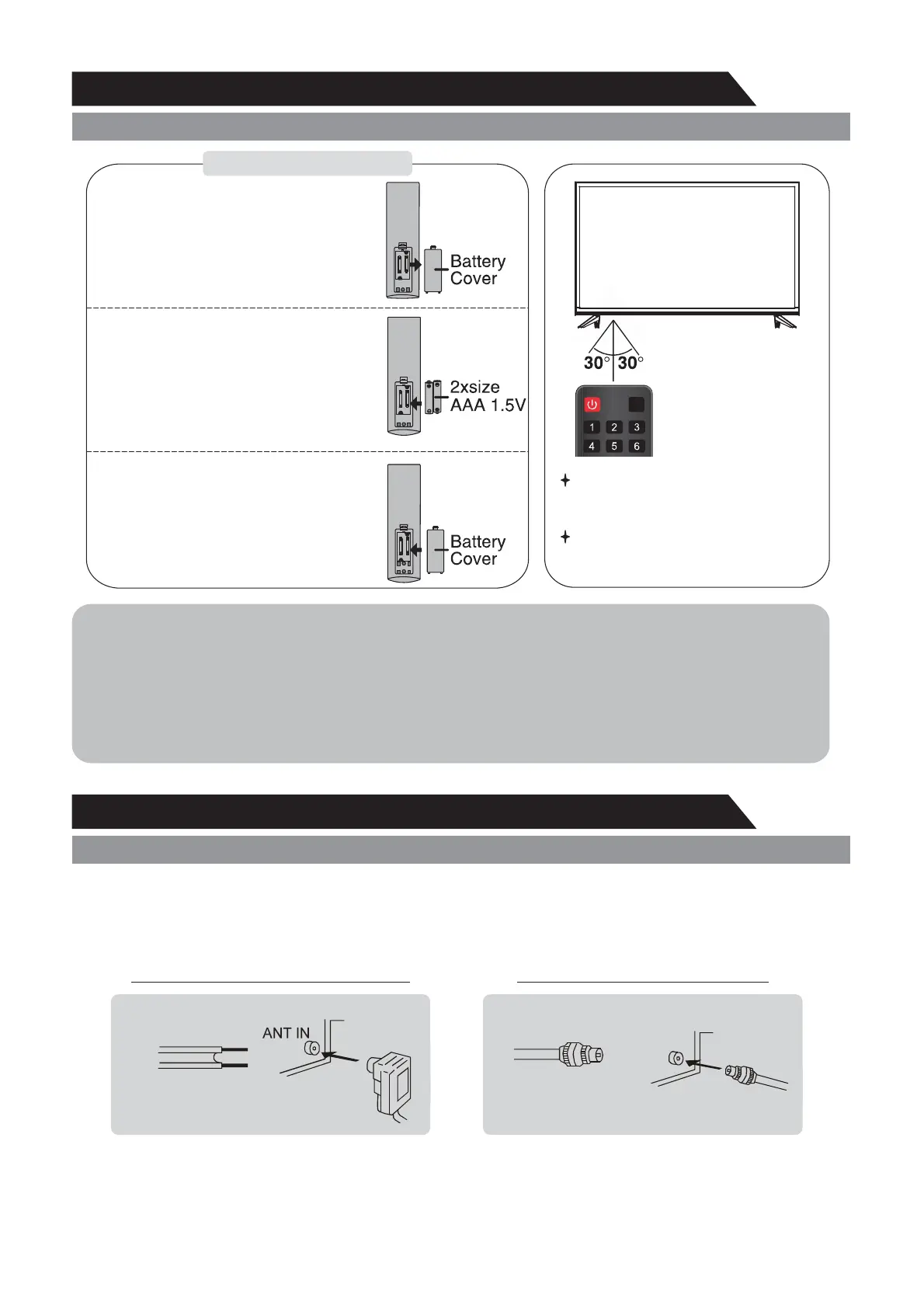

Antenna connection
Antenna input impedance of this unit is 75ohm. VHF/UHF 75ohm coaxial cable can be connected
to the antenna jack directly, if the antenna cable is 300ohm parallel flat feeder cable, you need to
use the 300ohm/75ohm converter to connect the antenna cable to the antenna jack. For details
Please refer to the following drawing.
75ohm coaxial cable
Antenna cable
Antennas with 300 flat twins Leads: Antennas with 75 Round Leads:
Use a 75ohm - 300ohm converter
300ohm coaxial cable
Antenna feeder
General Description
Installing Batteries in the Remote Control
Installing Batteries
1
Open the battery compartment
cover on the back side.
2
Insert two 1.5V AAA size batteries
in correct polarity. Don´t mix old or
used batteries with new ones.
3
Closed the cover.
Point the remote towards the remote control
sensor of the TV and use it within 8 meters.
Put the used batteries into the recycling bin
since they can negatively affect the
environment.
