RCA Spectra 70 Training Manual
4
of 1
of 1 rating
63 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...

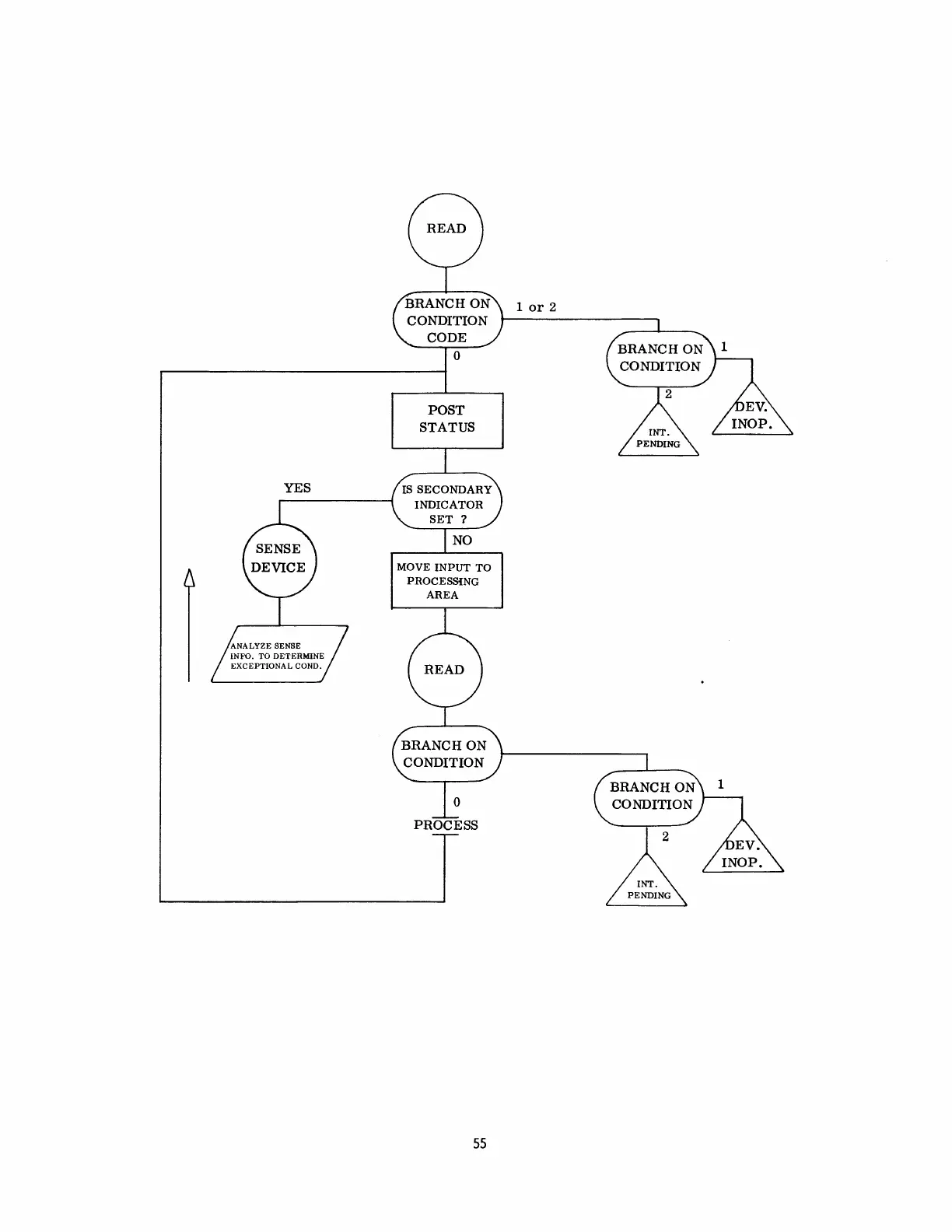

YES
POST
STATUS
MOVE
INPUT
TO
PROCESSfNG
AREA
PROCESS
55
1
or
2
60
62
Table of Contents
Table of Contents
4
General Description
7
High-Speed Memory
9
Introduction
9
HSM Addressing
9
Hexadecimal Numbering System
10
Exercise
11
Data and Instruction Format
12
Data Formats
12
Unpacked Format
12
Edited Format
12
Machine Instruction Format
13
Exercise
13
Interrupt
15
Introduction
15
Programming States
15
Processing State
15
Interrupt State
15
Types of Interrupt
15
I/O Interrupt
15
Operation Code Trap
16
Arithmetic Overflow and Divide Exception
16
Elapsed Timer Interrupt
17
Inhibiting Interrupt
17
Exercise
17
Summary of Interrupt Logic
18
Elapsed Time Clock
19
Introduction to the RCA 70/25 Assembly Language
20
Format Requirements
20
Addressing
20
Self-Defining Values
22
Expressions
22
Implied Lengths
23
Assembler Controlling Codes
23
Define Storage (DS)
24
Origin Code (ORG)
24
Constant Definition (DC)
24
Program Linking Codes (ENTRY and EXTRH)
25
Run and Segment Controlling Codes (START, END, CSECT)
26
Equate Code (EQU)
27
Base Register Controlling Codes (USING, DROP)
27
Extended Mnemonic Instructions
27
Exercise
28
Instruction Complement
30
Data Movement Instructions
30
Move Character (MVC)
30
Exercises
31
Packing and Unpacking Data (PACK and UNPK)
32
Exercises
33
Decimal Arithmetic Instructions
35
Decimal Add (AP) and Subtract (SP)
35
Decimal Multiply (MP)
36
Decimal Divide (DP)
37
Exercises
37
Data Editing Instruction (ED)
39
Examples
40
Exercises
41
Comparison and Branching Instructions
43
Compare Logical (C LC)
43
Compare Decimal (CP)
43
Branch on Condition (BC)
44
Branch and Link (BAL)
44
Branch on Count (BCT)
45
Set P2 Register (STP2)
45
Exercises
45
Load and Store Instructions
47
Load Multiple (LM)
47
Store Multiple (STM)
47
Binary Arithmetic Instructions
48
Binary Add (AB) and Subtract (SB)
48
Exercise
48
Logical Instructions
51
Logical and (NC)
51
Logical or (OC)
51
Exclusive or (XC)
51
Use of Logicals
52
Test under Mask Instruction (TM)
53
Data Translation, Translate (TR)
53
Inputloutput
55
Introduction
55
Read Instructions (RDF) and (RDR)
55
Writing Data (WR) and (WRE)
56
Controlling Peripheral Devices
56
Error Recognition
57
Logic
59
Standard Device Byte
59
Sensing Exceptional Conditions
59
Peripheral Unit Sense Bytes
60
Summary of 1/0 Logic
61
Example of 110 Coding
62
Exercise
63
