3) Connect front bracket of the first HDL cabinet using 2 quick lock pins.
4) The baffle of the bottom box in a stacked array does not necessarily have to be parallel
to the stage or the array frame. It can be tilted up or downward if desired. In this way arced
arrays can be readily created from a ground stack position.
5) The bottom box in a stacked array can be tilted to obtain proper coverage patterns
(from+7,5° to -7,5°). Reverse and connect the 1 rear stacking bar bracket to the first
enclosure using the hole for the proper angle and quick lock pins.
Add HDL cabinets one by one as indicated for flown configurations. Up to four HDL
enclosures can be stacked and interlinked using the standard D LINE rigging components
and the D LINE subs as ground support.

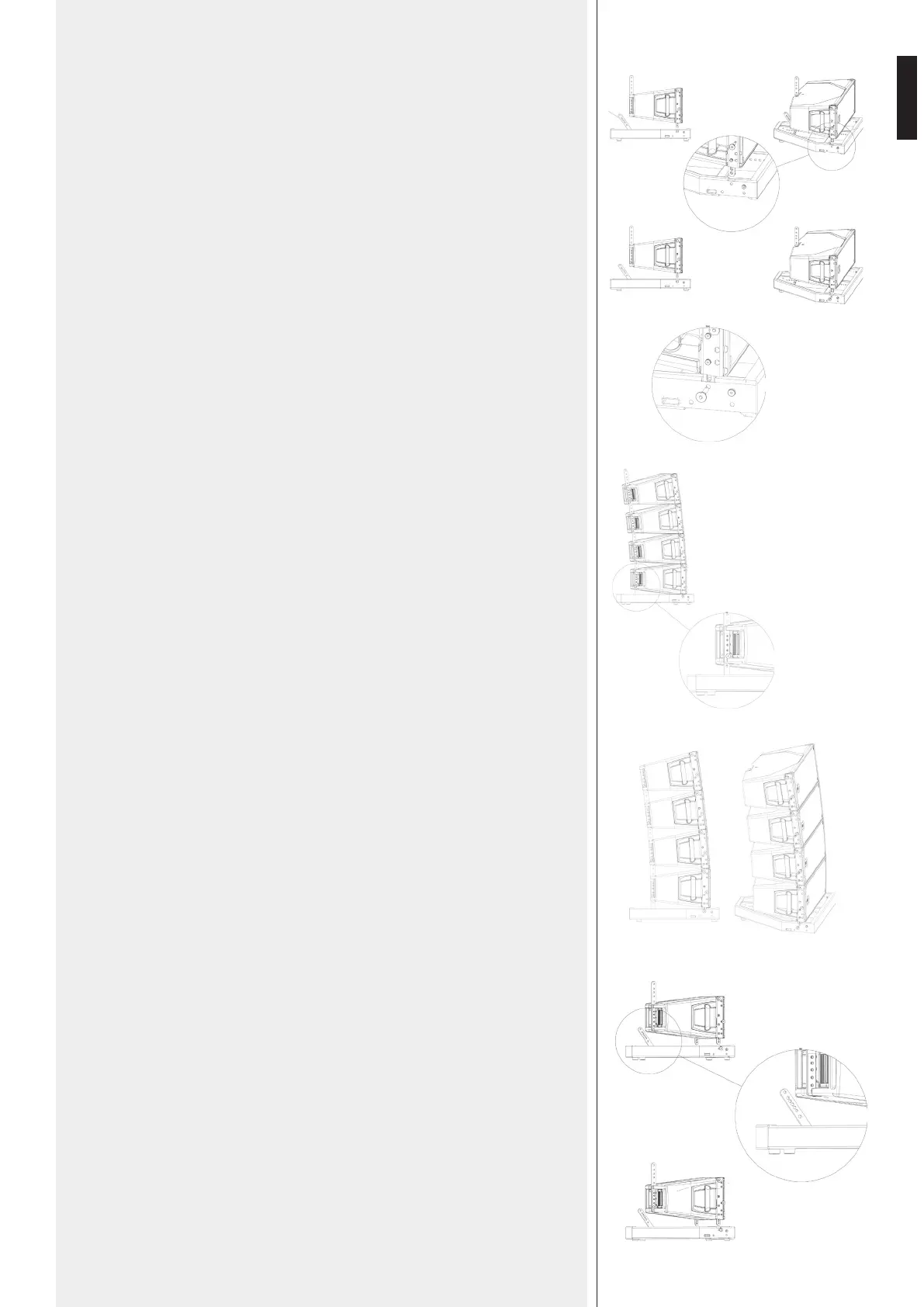

6) It is possible to stack HDL speakers on the ground using its own fly bar as shown in the
pictures.
