ENGLISH

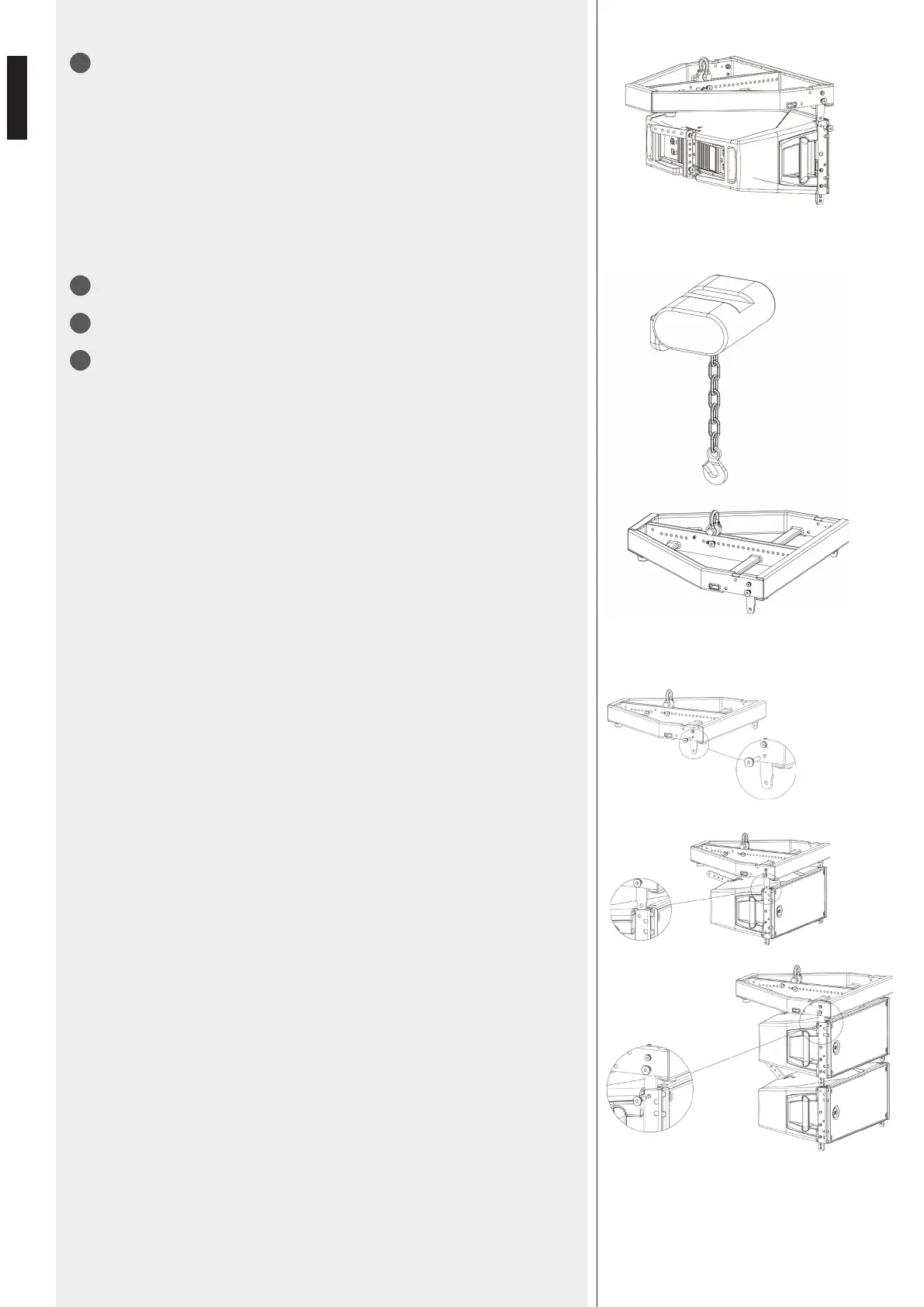

RIGGING PROCEDURE
H
S
F
Check that all the pins are secured and locked.
Rigging the system follow the procedure:
RIGGING CHAIN HOIST.
CERTIFIED SHACKLE.
FLY BAR.
1) Connect the fly-bar F to the chain hoist H (o motors) using the certified shackle.
Secure the shackle.
2) Connect the second pin on the front bracket to make sure that the connecting bracket
is vertical.
3) Connect the front bracket to the first HD cabinet using 2 quick lock pins.
USING THE FLY BAR HDL 20 LIGHT (P.N. 13360229) IT IS ALLOWED TO CONNECT A
MAXIMUM OF 4 HDL 20-A MODULES.
USING THE FLY BAR HDL 10 LIGHT (P.N. 13360276) IT IS ALLOWED TO CONNECT A
MAXIMUM OF 6 HDL 10-A MODULES.
H
S
F
8
