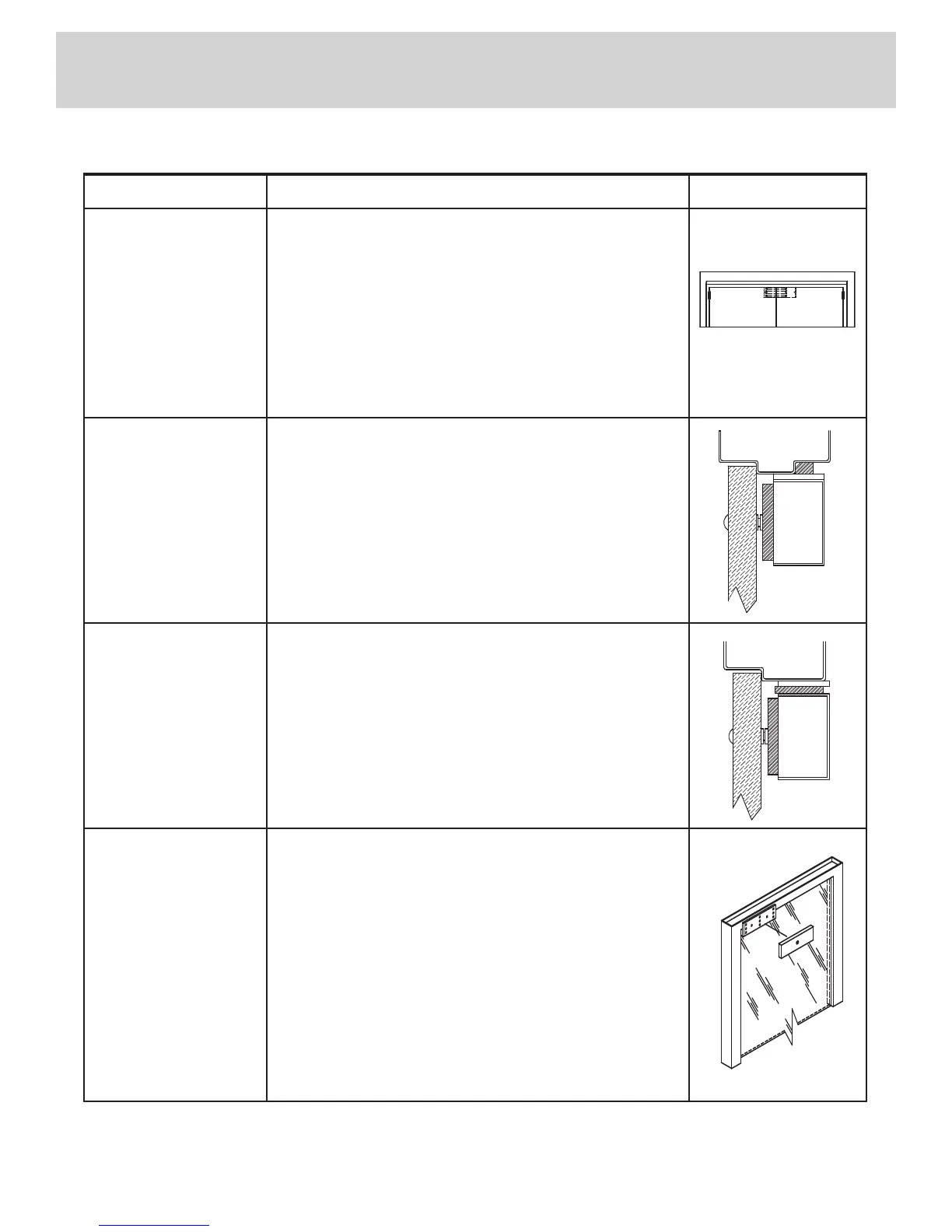

Product Accessories Guide Continued
Used for traffic control applications where two doors
are to be used with a single 8310 lock. The Split
Armature plates are half the length of a standard
armature. Each of these is mounted on one of a pair of
doors with an 8310 lock centered on the frame
between the doors.
Note: Use of split armature plates will reduce
holding force.
Used to provide extra mounting space in a hollow
metal or wood frame where the door stop of the frame
is not thick enough to allow a lock to be installed.
Available in several different heights and widths.
For use when an obstruction in the door prevents the
installation of the armature plate at a proper height. If
the armature plate needs to be lowered then a spacer
bar can be used to lower the lock from the frame.
Available in several different heights.
For use with doors that do not permit the armature
plate to be mounted low enough to meet the magnet
surface. Eg: Some aluminum framed commercial
glass doors. The armature holder can be mounted to
whatever frame is available and the armature plate in
turn mounted to the holder.
Available in both flat (shown) and pocket styles.
Split Armature
Plates
Filler Bars
Spacer Bars
Armature Holder
Part Usage Example
Also A
vailable
DSS Retrofit Kit- Allows a DSS option to be added to a lock that was not originally equipped with DSS. Cover Tamper Switch - Can be used to
monitor the opening of the lock cavity cover
.
Cover Security Scr
ew
- A spanner
-head security scr
ew to prevent the opening of the wiring cavity
cover. Requires a special security driver to open the cavity. (Sold Separately)
