RCS Technology TZ45R - Thermostat Operation Interface; Main Thermostat Screen Layout; Minimized Display Mode

DCN: 140-01773-03 Page 10
Operation Guide
Model TZ45R
Z-Wave Thermostat
MENU
COOL
MODE
72 H
AUTO
FAN
HOLD
75
2
75 C
4:30 PM
SYS OFF
ECON
HOLD
NO MSG
Temperature
Setting
Warmer
Cooler
Fan Mode
Selection
Heating/Cooling
Mode Selection
Run/Hold
Mode Selection
Menu
Selection
Room Temperature
Setpoints
Backlite Display

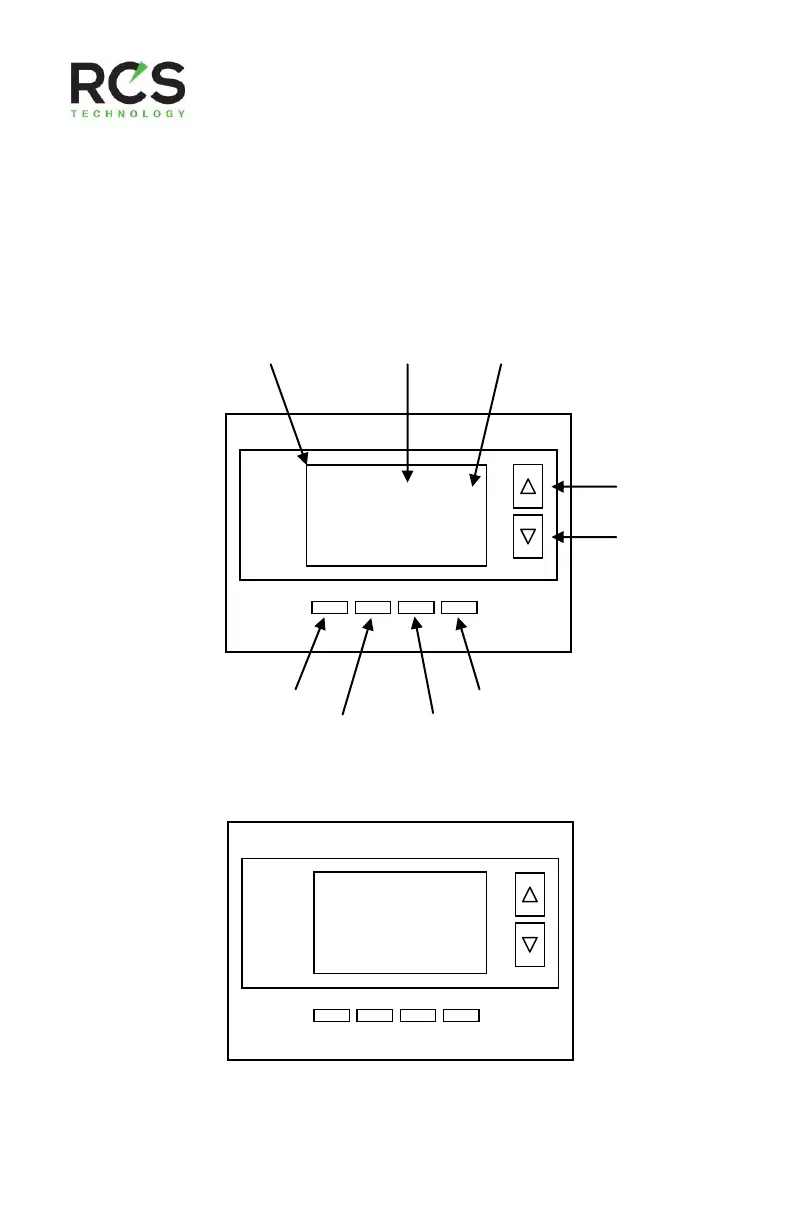

Main Thermostat Screen
Minimized Display
(displayed after screen timeout
Press any button to return to the main thermostat screen
75
