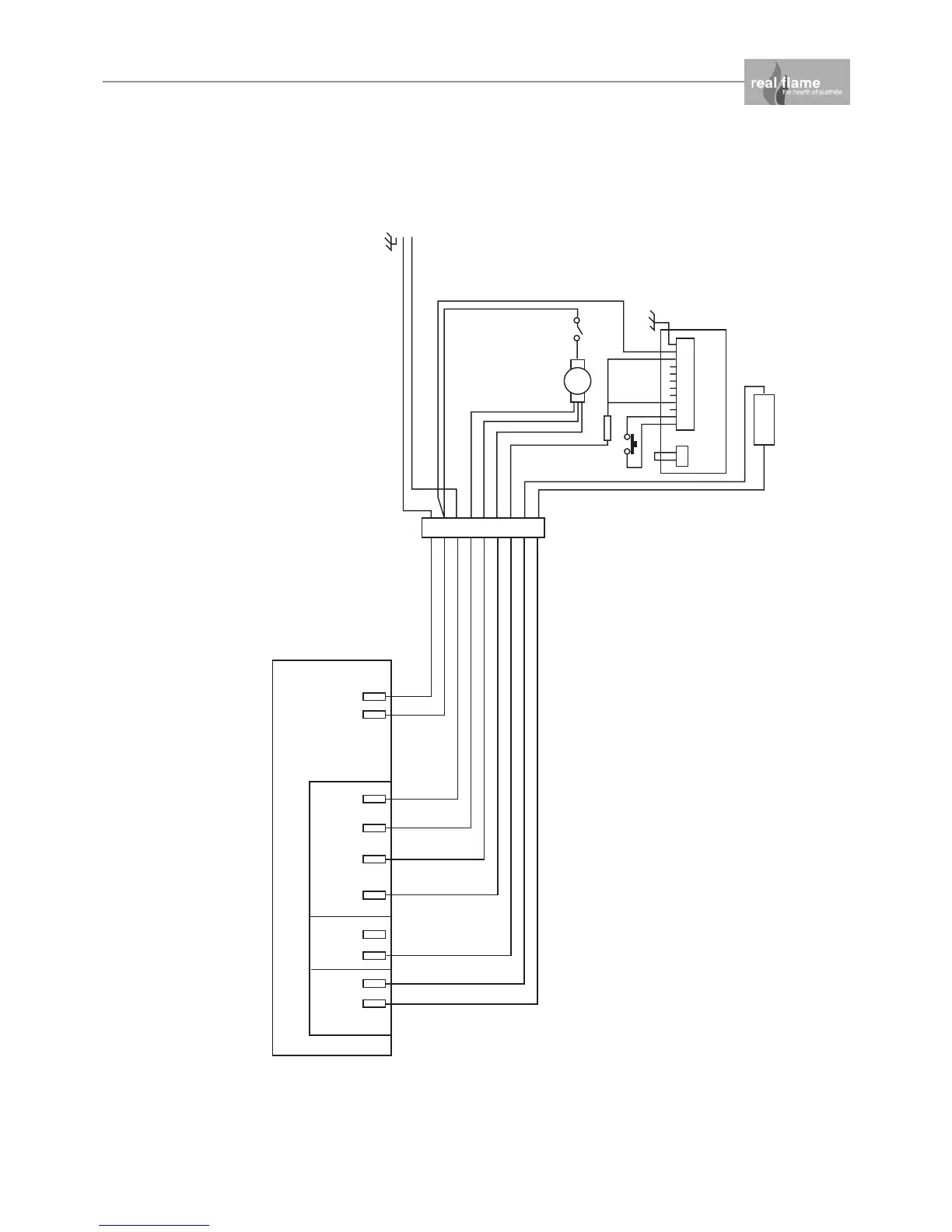

ELECTRICAL DIAGRAM
Modulating Coil
PCB
SIT Igniton Control
CON9
CON12
12 11 10 9 8 7 6 5 4 3 2 1 1
9 8 7 6 5 4 3 2 1
2
CON2
Reset Button
Fuse 1
MO MO
Ignitor
High Speed
Medium Speed
Low Speed
Neutral Neutral
Neutral Active Low Med High TH1 TH2 MOD1 MOD2
FAN SW
ACTIVE
THERM GAS VALVE
Active
Fan Motor
Thermodisc
