Real Flame Silverton G8600E - Step Three: Attaching Firebox Trims; Step Four: Attaching Firebox Trims

5

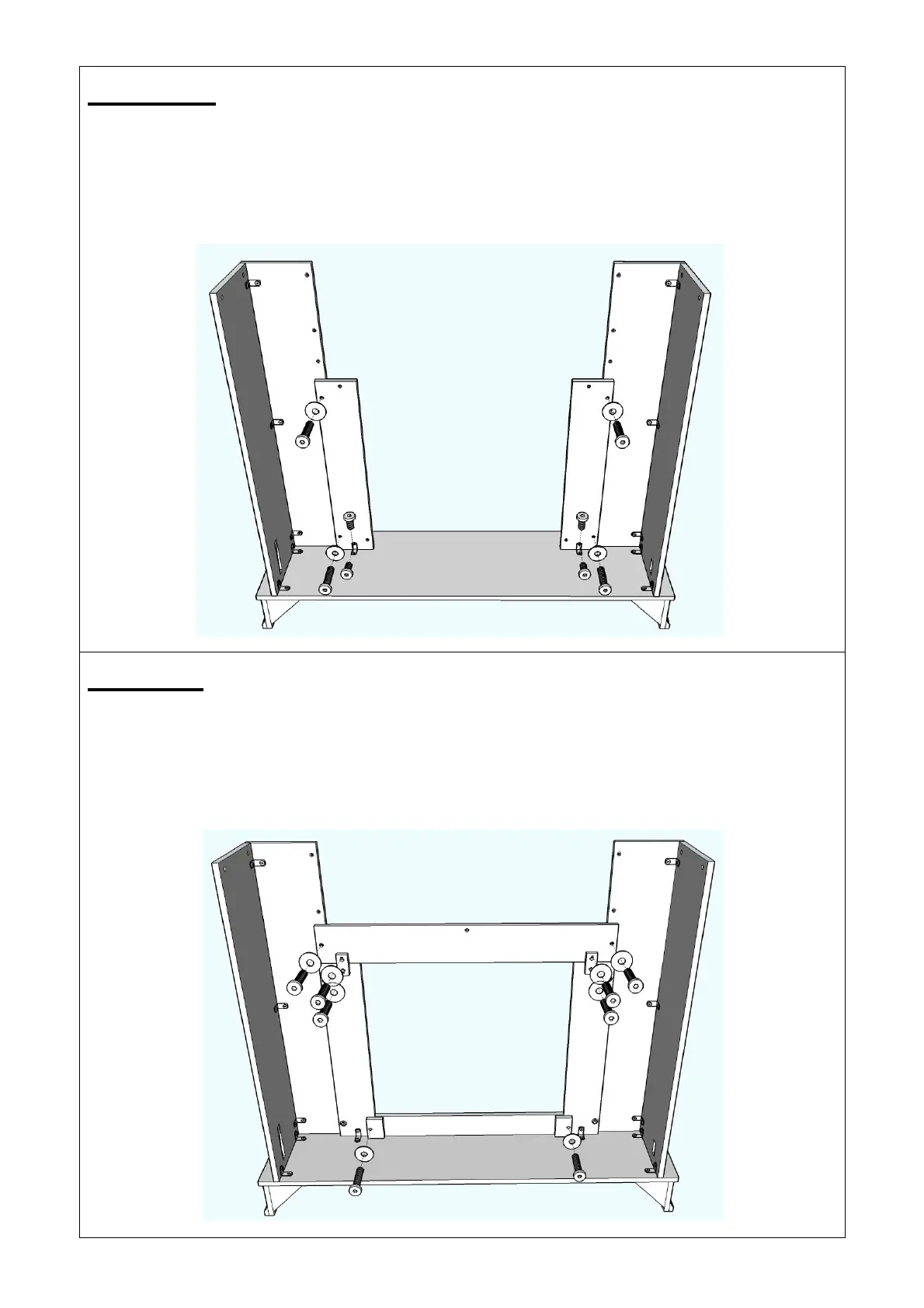

Step Three
-Attach left firebox trim (8) to left front panel (4) by securing 2 long allen screws (C) through 2
washers (D). Fit on base panel (1) by securing 2 short allen screws (C) through 1 L-bracket (B).
-Repeat with right firebox trim (9).
Step Four
-Attach lower firebox trim (10) to side firebox trim (8) , (9) by securing 2 long allen screws (C)
through 2 washers (D).
-Attach upper firebox trim (11) to front panel (4) , (5) by securing 2 long allen screws (C) through 2
washers (D). Fit on side firebox trim (8) , (9) by securing 4 long allen screws (C) through 4
washers (D) and 2 MDF boards (F).
