Assemble Your Rec Tec Grill
STEP 1 – Unpack and Prepare for Assembly
Remove and discard the 4 rubber bumpers from the grill lid and lid stopper.
These are for shipping
protection only. Remove all items from inside grill body and lay grill body on its back, with chrome towel
loop facing up. For ease of assembly, complete steps 1-5 below before standing grill upright.
STEP 2 – Attach Legs
Attach legs with fixed wheels 5 on the left side, with wheels facing outward. Attach legs with the
rotating casters 4 on the right side of the grill. All four legs attach using 8 long bolts (M10 x 40),

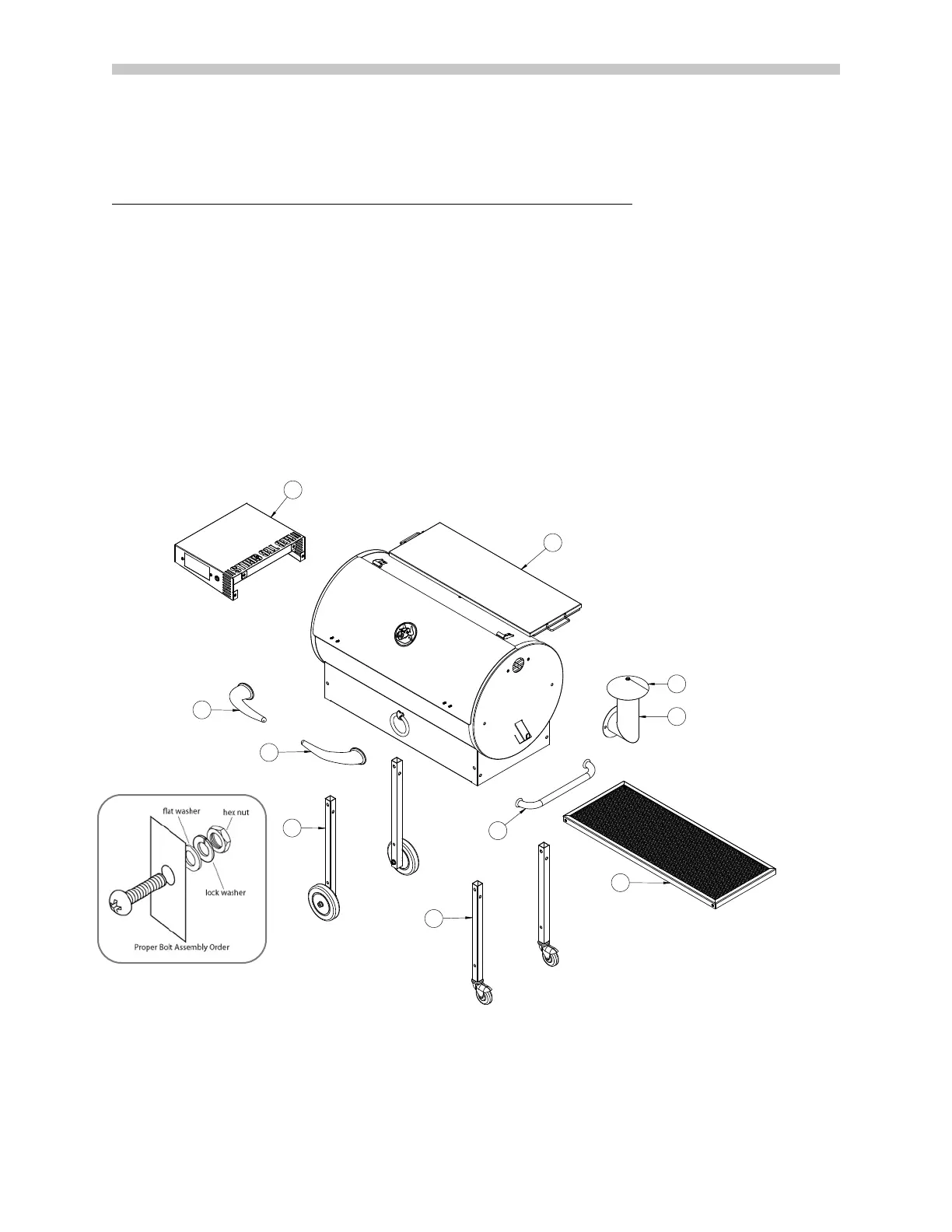

flat washers, lock washers and nuts. (See Bolt Assembly Order diagram)
STEP 3 – Attach Bottom Shelf
Align shelf 8 between grill legs and attach using 4 long (M10 x 40) bolts, flat washers, lock washers
and nuts.
STEP 4 – Attach Side Shelf
Attach shelf 9 to grill body with 4 short (M10 x 16) bolts, flat washers, lock washers and nuts.
