SIX POINT MOUNTING: REC ALPHA PURE
A six-point mounting configuration secures the panel on three continuous rails (or other support structures) with three clamps on each side of the
panel in the zones marked below:

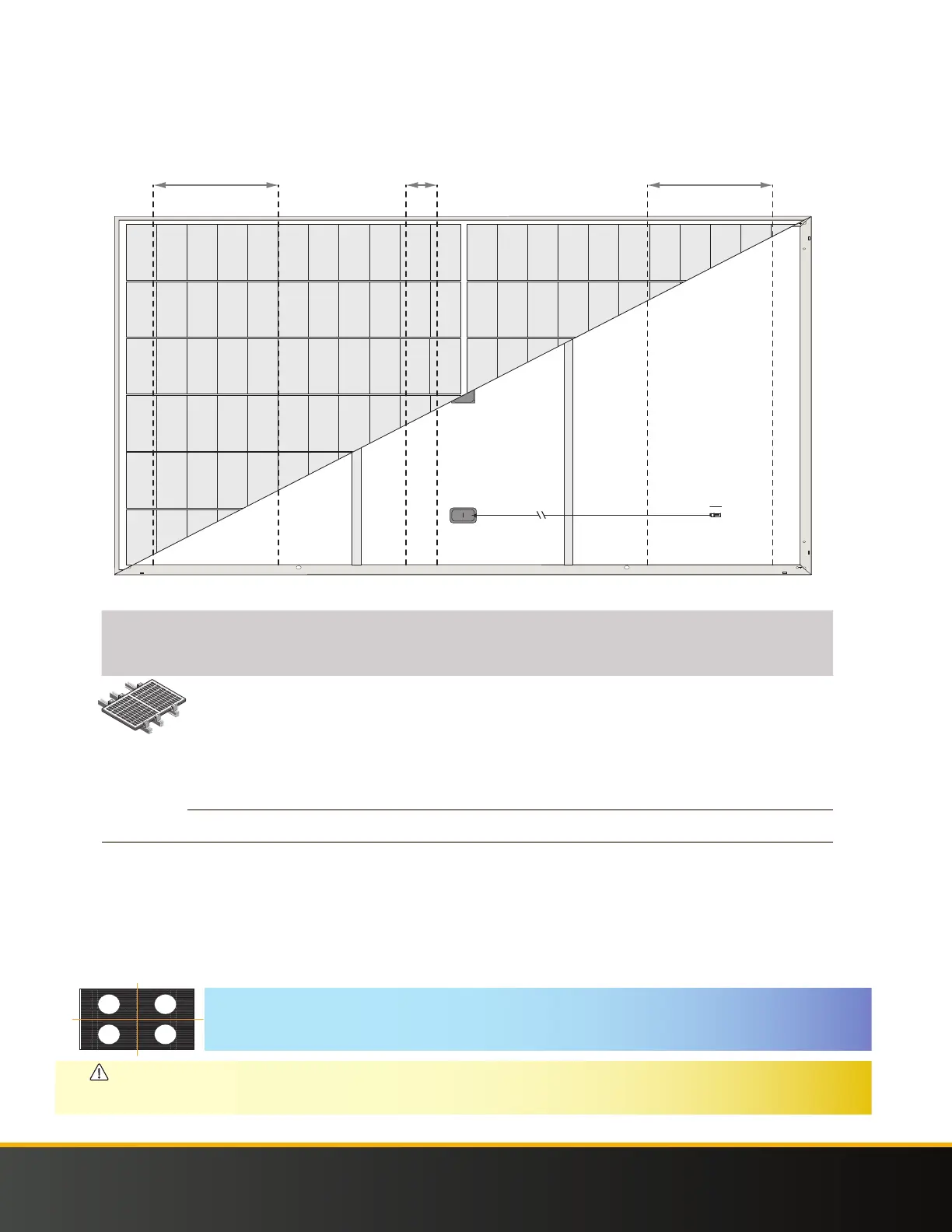

Six-point mounting configuration clamping zones: REC Alpha Pure Series
Rail positioning
NOTE
Once a module is secured in each of the  zones , additional clamps, i.e., ≥, may be freely located on panel frame without affecting the warran-
ty. Loads marked with a * were not certified as part of IEC / testing; these have been evaluated by REC’s internal testing process.
CAUTION
The middle rail must not be installed on the side of the junction box where the cables exit.
A total of three continuous rails (or other support structures) must be used to secure the panel.
The center point of each clamp and the minimum grip length must be fully located within the marked zone to be rated to the given value.
1
2
43
GR
GR
GR
GR
760 mm [29.9 in] - 840 mm [33.1 in]
100 mm [3.9 in] - 430 mm [16.9 in] 430 mm [16.9 in] - 100 mm [3.9 in]
Fig. -
