20

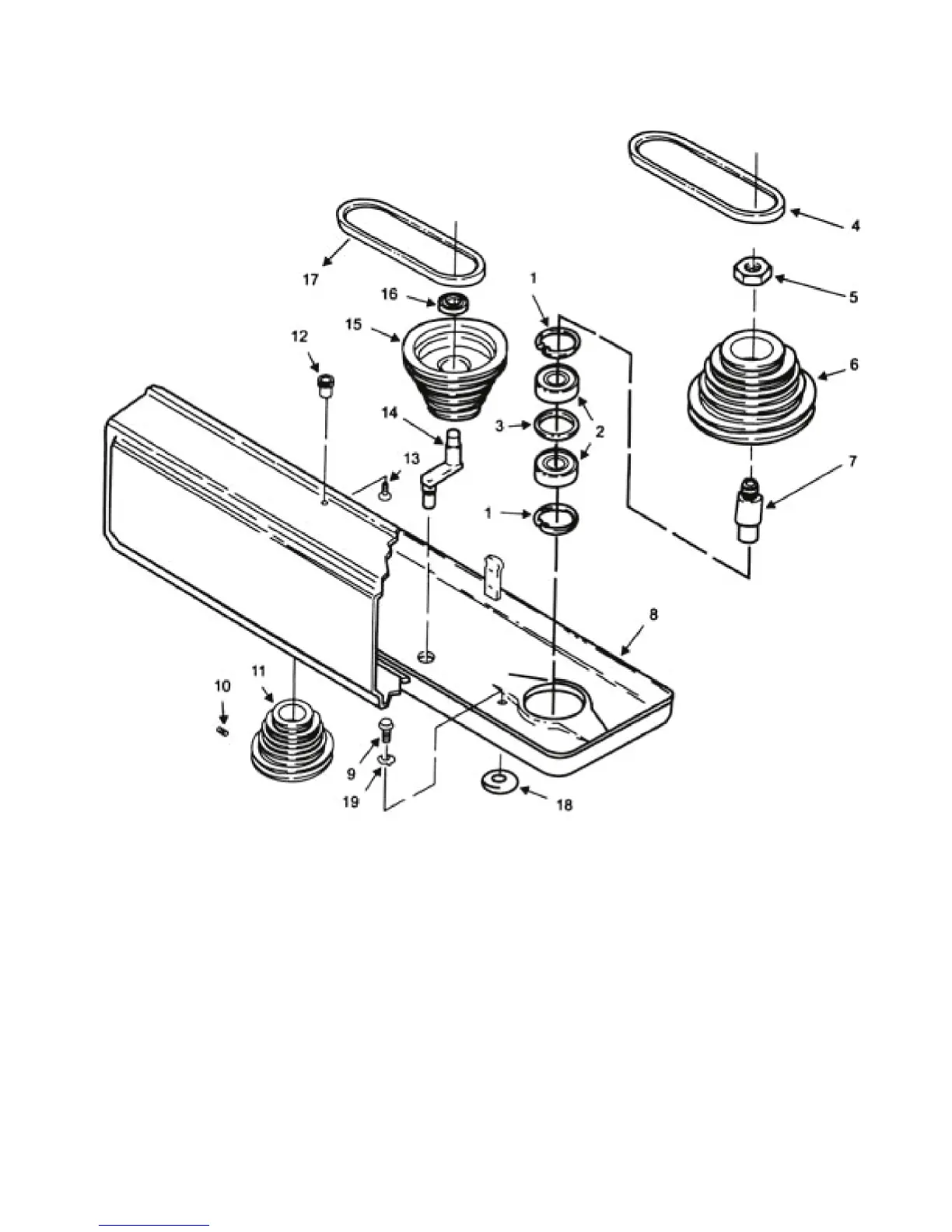

Spare Parts Diagram 3
3-1. Retaining ring
3-2. Bearing ball 25mm
3-3. Spacer
3-4. Belt “V” M25
3-5. Nut pulley
3-6. Pulley spindle
3-7. Insert spindle
3-8. Guard pulley w/labels
3-9. Screw RD HD Washer M6x1.0-16
3-10. Screw set M10x1.5-12
3-11. Motor pulley
3-12. Knob
3-13. Screw pan HD M5 x 0.8-12
3-14. Pivot idler
3-15. Pulley centre
3-16. Bearing ball 15mm
3-17. Belt “V” M26
3-18. Foam washer
3-19. Lock washer Ext. M6
Spare Parts List for Diagram 3
13. Parts Lists & Diagrams - Cont.
