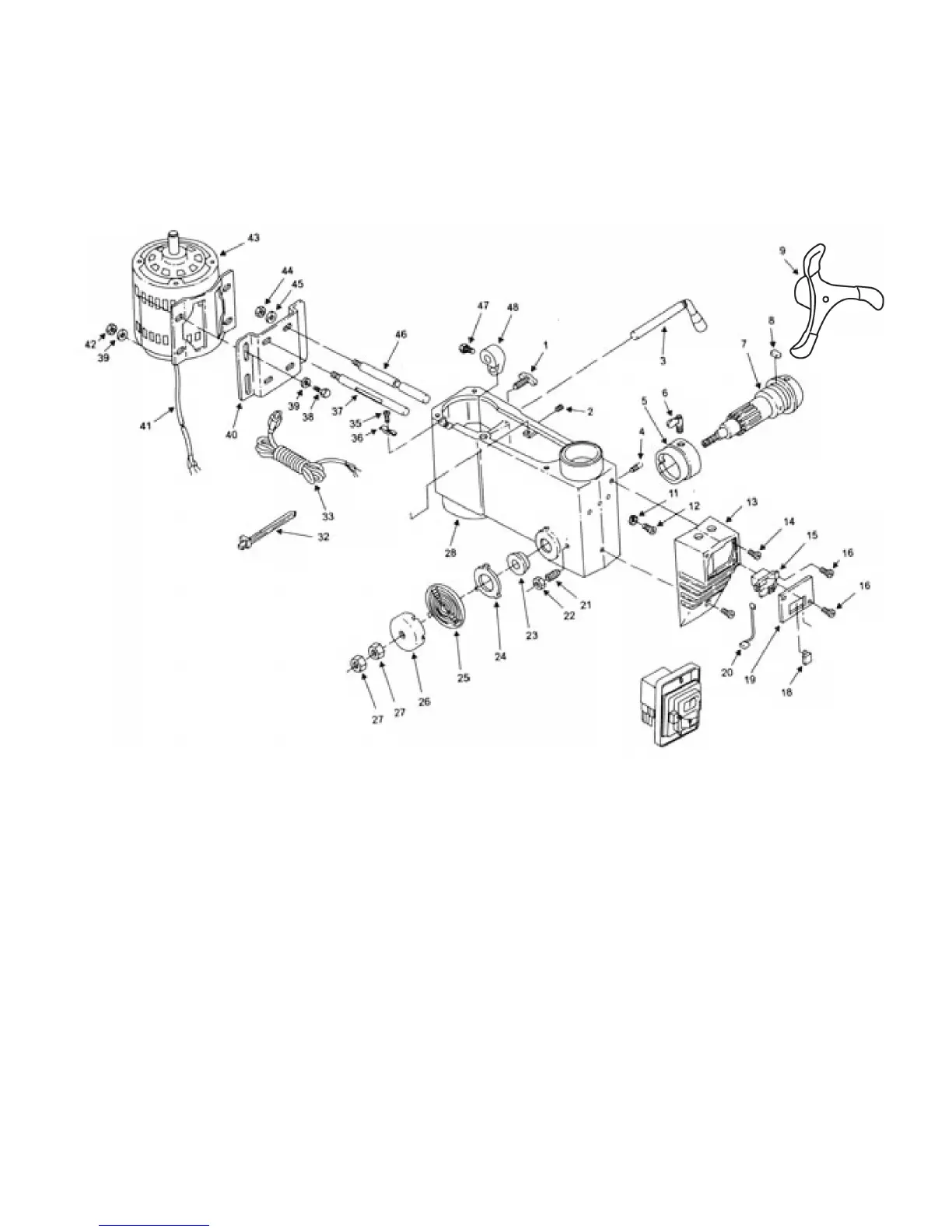

Spare Parts Diagram 4
13. 13. Parts Lists & Diagrams - Cont.
Spare Parts List for Diagram 4
17
4-1. Motor adjusting knob
4-2. Screw socket set M10 x 1.5-12
4-3. Handle belt tension
4-4. Pin stop
4-5. Ring depth stop w/scale
4-6. Depth screw lock
4-7. Hub
4-8. Guide scale
4-9. Feed handle
4-11. Lock washer Ext M5
4-12. Pan HD M5 x -0.8-8 screw
4-13. Box switch
4-14. Pan HD M5 x -0.8-16 screw
4-15. Locking switch
4-16. Pan HD M5 x -0.8-16 screw
4-17. NVR switch
4-18. Switch key
4-19. Switch plate Cover
4-20. Lead assembly. 3
4-21. Special screw set 10 x 1.5-27
4-22. Nut hex M10 x 1.5
4-23. Seat spring
4-24. Retainer spring
4-25. Spring torsion
4-26. Spring cap
4-27. Hex nut M12 x 1.5-8
4-28. Head w/pointer and trim
4-32. Tie wire
4-33. Power cable w/plug
4-35. Pan HD M6 x 1.0-12 screw
4-36. Cable clamp
4-37. Motor bracket support
4-38. Hex HD M8 x 1.25-20 screw
4-39. Washer 8 x 16 x 1.6
4-40. Motor mount
4-41. Motor cable
4-42. Hex M8 x 1.25 nut
4-43. Motor
4-44. Hex M12 x 1.74 nut
4-45. Locking washer 1/2
4-46. Support motor bracket
4-47. Screw hex HD M8 x 1.25-16
4-48. Adjusting lever
