12
Step 10

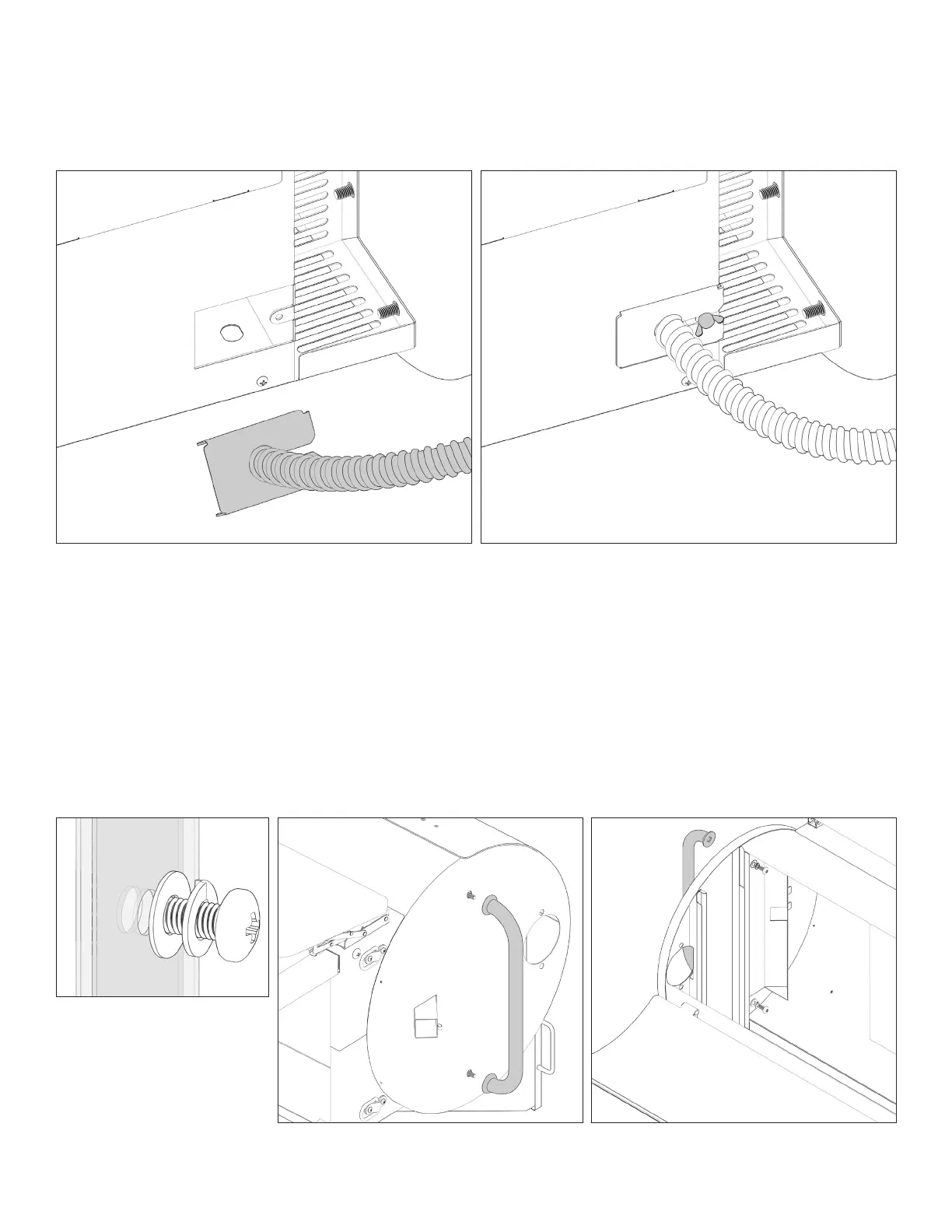

Install Pull Bar Handle
Attach the pull bar handle (6) using the two bolts that are screwed into the handle. The beauty ring
stays attached to the pull bar handle.
Hand tighten until all screws are in place.
Pull Bar
Grill Body
Step 9 cont.
Once the conduit is attached to the plate, insert the left side of the plate into the slot and tighten
down the right side with the provided wing nut.
To Next Page
