recteq RT-1250 - Install Wire Housing

11
Grill Side
Shelf Side
TYWE1S 1703181
RoHS
P/N:2.01.01.10004
FOC ID: 2AFNLTWYE18
V 1.6
2017. 10. 10
HOT
RTD
pt1000
FAN
AUG
IGN
COM
Wiring Harness

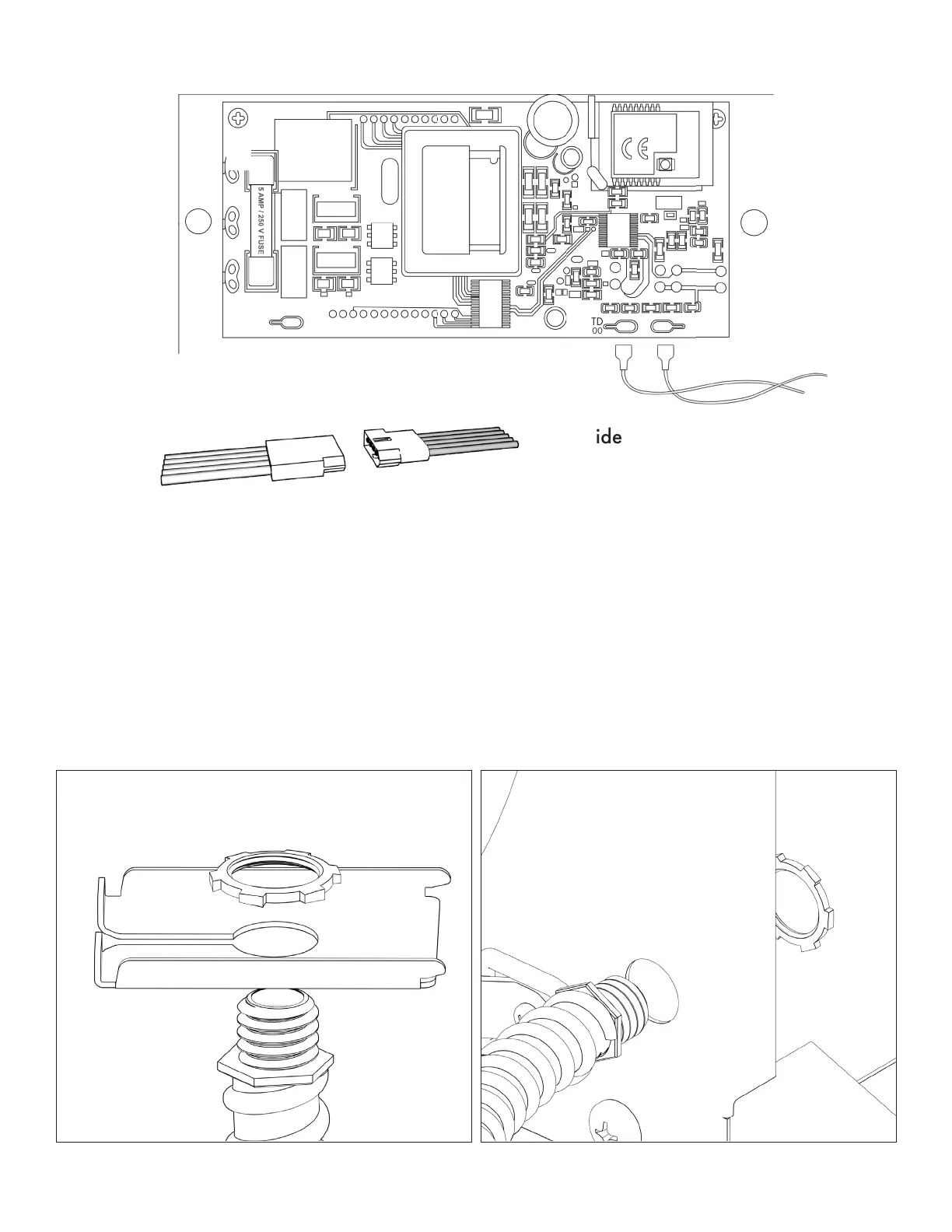

controller (back view)
Step 8 cont.
Install Wire Housing
Step 9
Take the wiring harness access plate (15) and wing nut out of packaging. Unscrew the conduit
locknut from controller side. Slide wires through the slit in the plate and screw the locknut back
down.
Screw down the locknut on the other end of the conduit to the grill body.
