Step 14

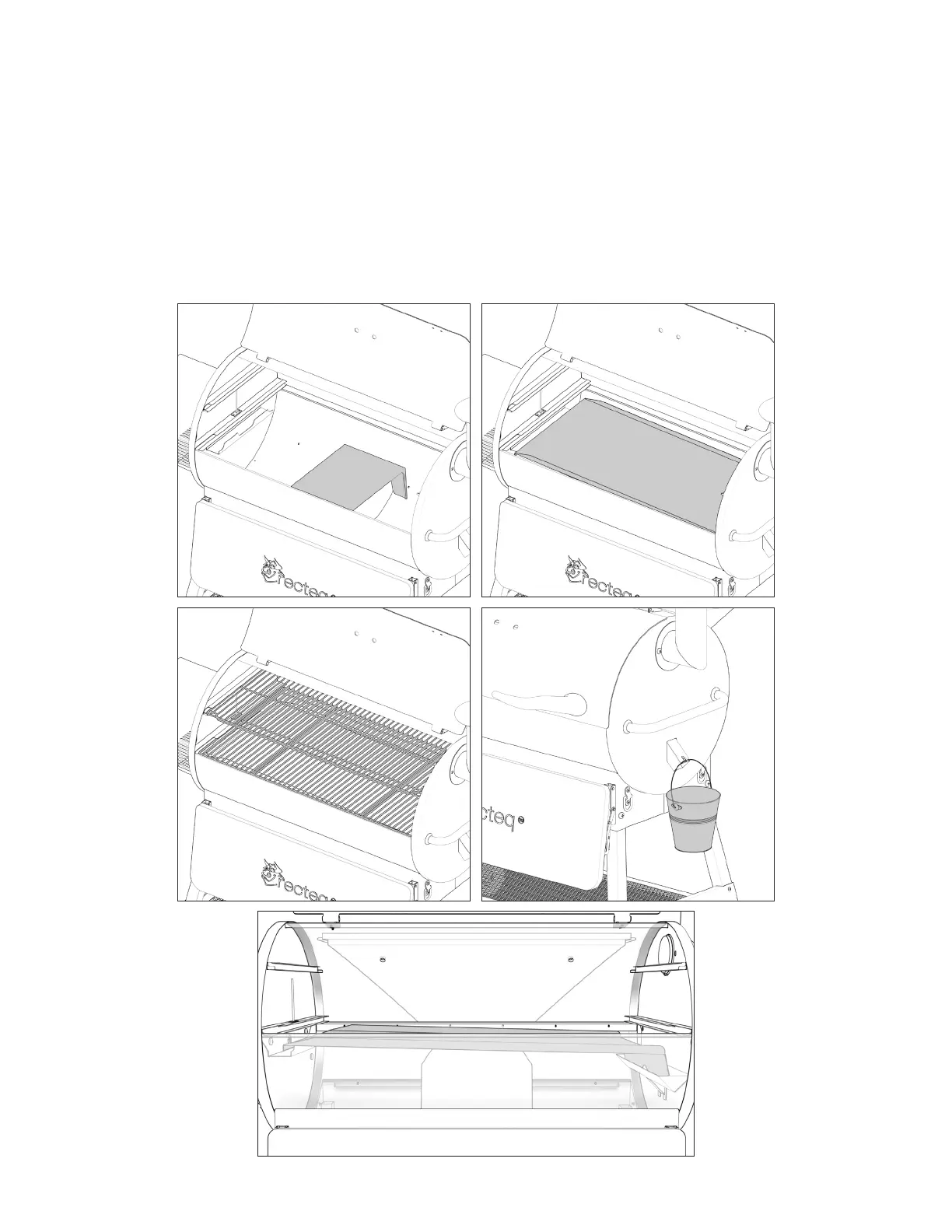

Lift the lid, align the notches in the heat deflector (9) with the small brackets in the front and back
of the barrel, and place the heat deflector over the fire pot. Install the drip pan (10) with the pan
sloping down to the right of the grill making sure to leave equal gaps between the pan and the
front and back of the chamber walls. Install the cooking grates (11 /12) by resting them flat on the
front and back ledges. Install the drip bucket (13) by clipping the handle to the hook on the spout.
Note: See last image for proper placement of drip pan.
Heat Deflector, Drip Pan, Cooking Grates, and
Drip Bucket
