6
RT-590 Assembly

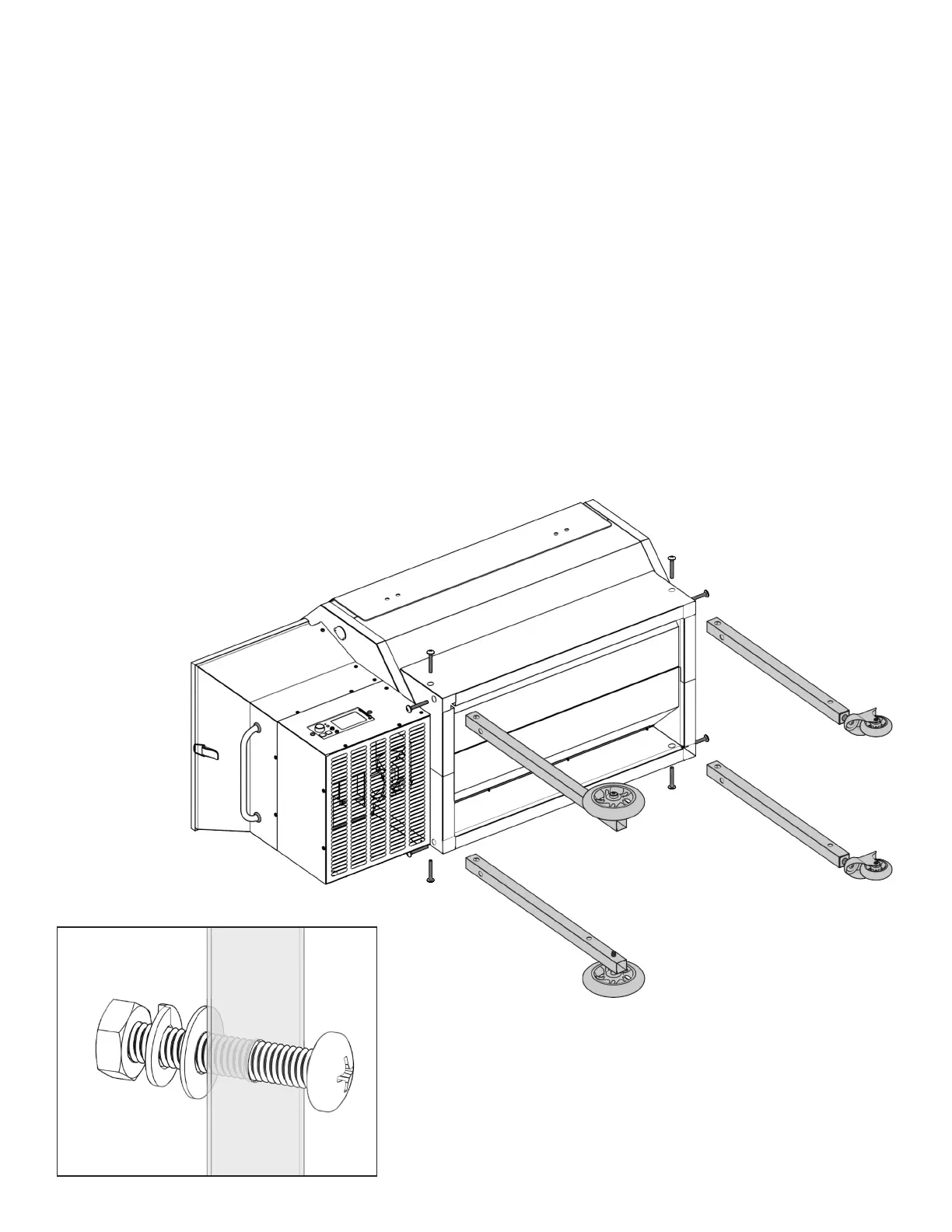

Start with grill on its backside.
On the left side, attach legs with fixed wheels (3) with wheels facing outward to the front of the grill.
Then on the right side, attach caster wheel legs (2).
Hand tighten all four legs using bolt assembly order pictured below.
Step 1
Unpack and Prepare for Assembly
With assistance, remove all items from inside grill body and lay grill body on its back.
Tip: Flatten the cardboard box out and lay everything on it. This serves as a good working area and it
helps prevent the grill from getting scratched or damaged during installation.
Step 2
Flip Grill and Attach Legs
