REPLACINGTHEDIAPHRAGM

ThediaphragmofyourOrbitpoolcleaneroperatesattherateofapproximately360

beatsperminute.IfyourOrbitoperatesdailyfor8hours,thediaphragmwillopenand

closeover60milliontimesinayear!Thedesignhasbeenperfectedovermanyyears

and,properlycaredfor,thediaphragmwilllastforseveralseasons.Intheeventthatit

doesbecomewornordamagedandneedstobereplaced,simplyfollowtheseeasy

steps:

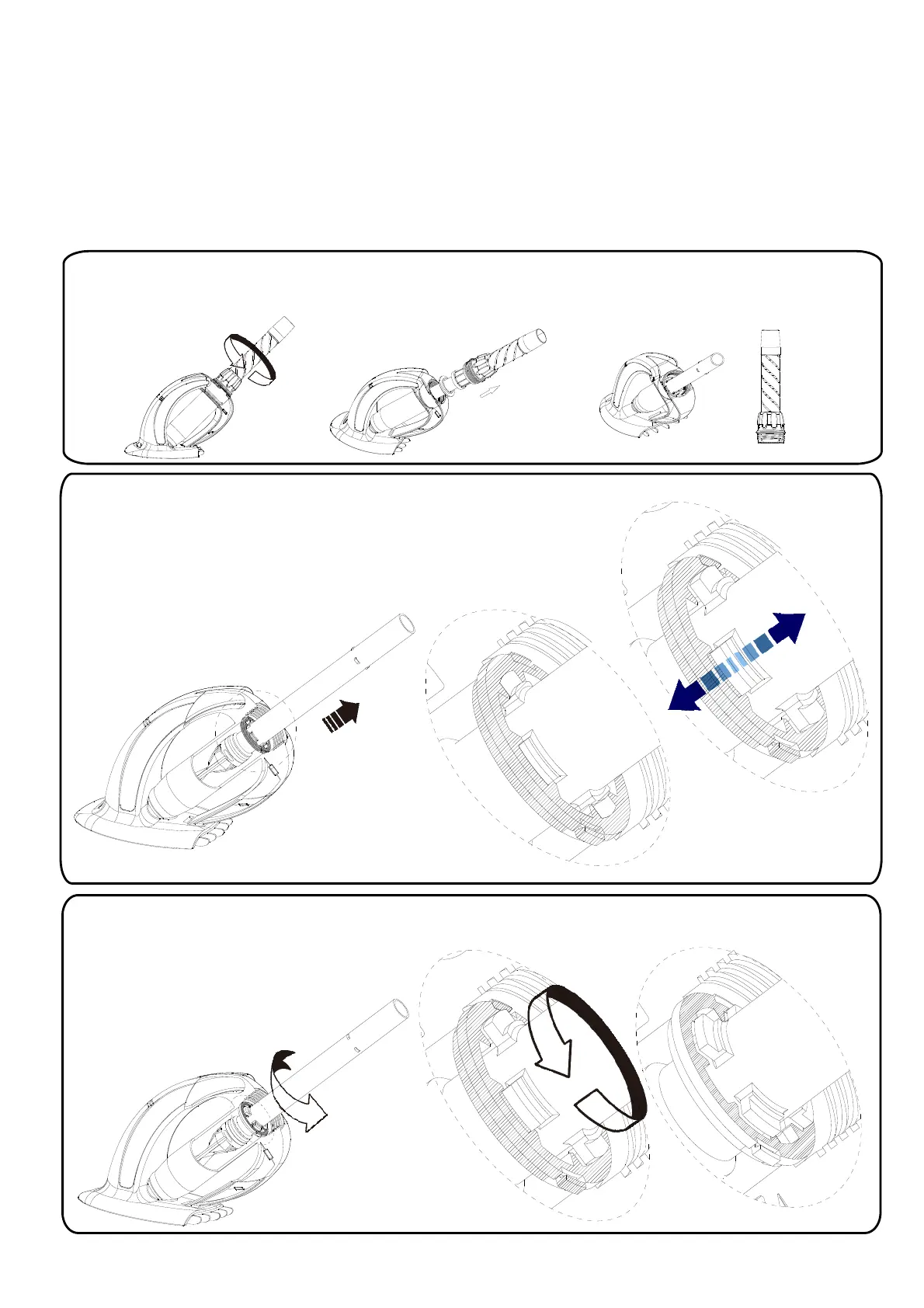

1.UnscrewtheHANDNUTandremoveit,togetherwiththeOUTEREXTENSIONPIPE

andtheTHRUSTWASHER.Placetheseitemstooneside.

2.HoldtheINNEREXTENSIONPIPE(IEP)andgentlypullittowardsyou.Thispulls

thetabsoutoftheirrecess.

3.TurntheINNEREXTENSIONPIPEsothetabslineupwiththeholesintheIEP

LOCATOR. DonotremovetheINNEREXTENSIONPIPEfromtheBODY

PAGE7
