Red Leopard Orbit - New Diaphragm Installation

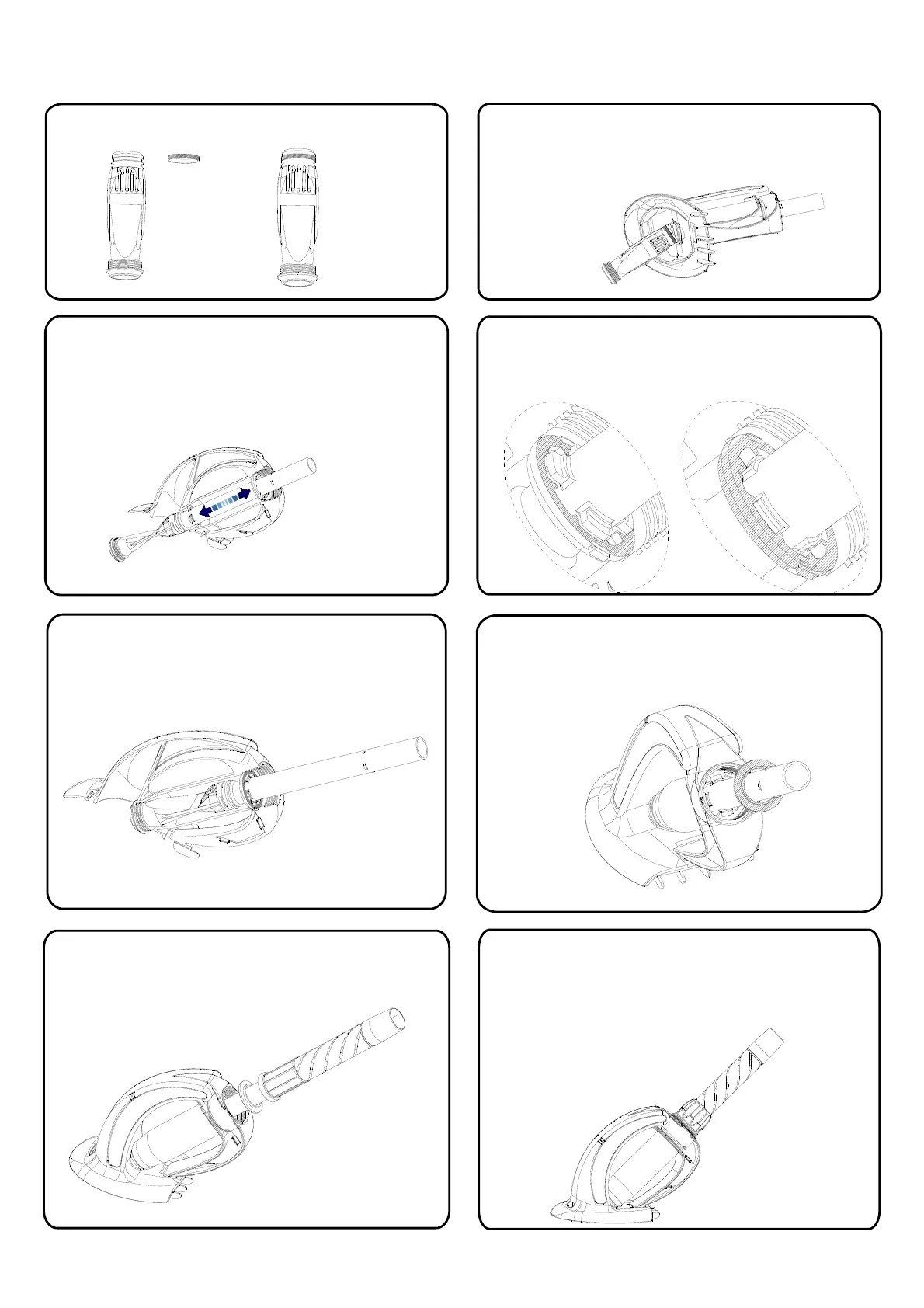

Toinstallanewdiaphragm,simplyreversetheprocess:
(a)FittheRETAININGRINGontothenew
DIAPHRAGM.
(b)PushtheDIAPHRAGMontotheINNER
EXTENSIONPIPE.Makesureitiscorrectly
locatedandfullyengaged.
(c)PulltheINNEREXTENSIONPIPEup
throughtheBODY,positioningthetabsso
theycanbepulledthroughtheholesinthe
IEPLOCATOR.
(d)GentleturntheINNEREXTENSIONPIPEso
thetabsarealignedwiththerecessesinthe
IEPLOCATOR.ReleasetheINNER
EXTENSIONPIPE.
(e)CheckthattheDIAPHRAGMiscorrectly
located.Ifithasbecometwistedduring
installation,simplyuntwistbyslightlyturning
theopenendoftheDIAPHRAGM.
(f)SlidetheTHRUSTWASHERovertheINNER
EXTENSIONPIPE.Theflatside(widest
diameter)oftheTHRUSTWASHERshould
facedown.
(g)PlacetheOUTEREXTENSIONPIPE
overtheINNEREXTENSIONPIPE.
(h)ScrewtheHANDNUTintoplace,tolockthe
assembly.
(i)CheckthattheOUTEREXTENSIONPIPE
swivelsfreely.
Becarefulnottoover-tightenthe
Handnut.
PAGE9
