6

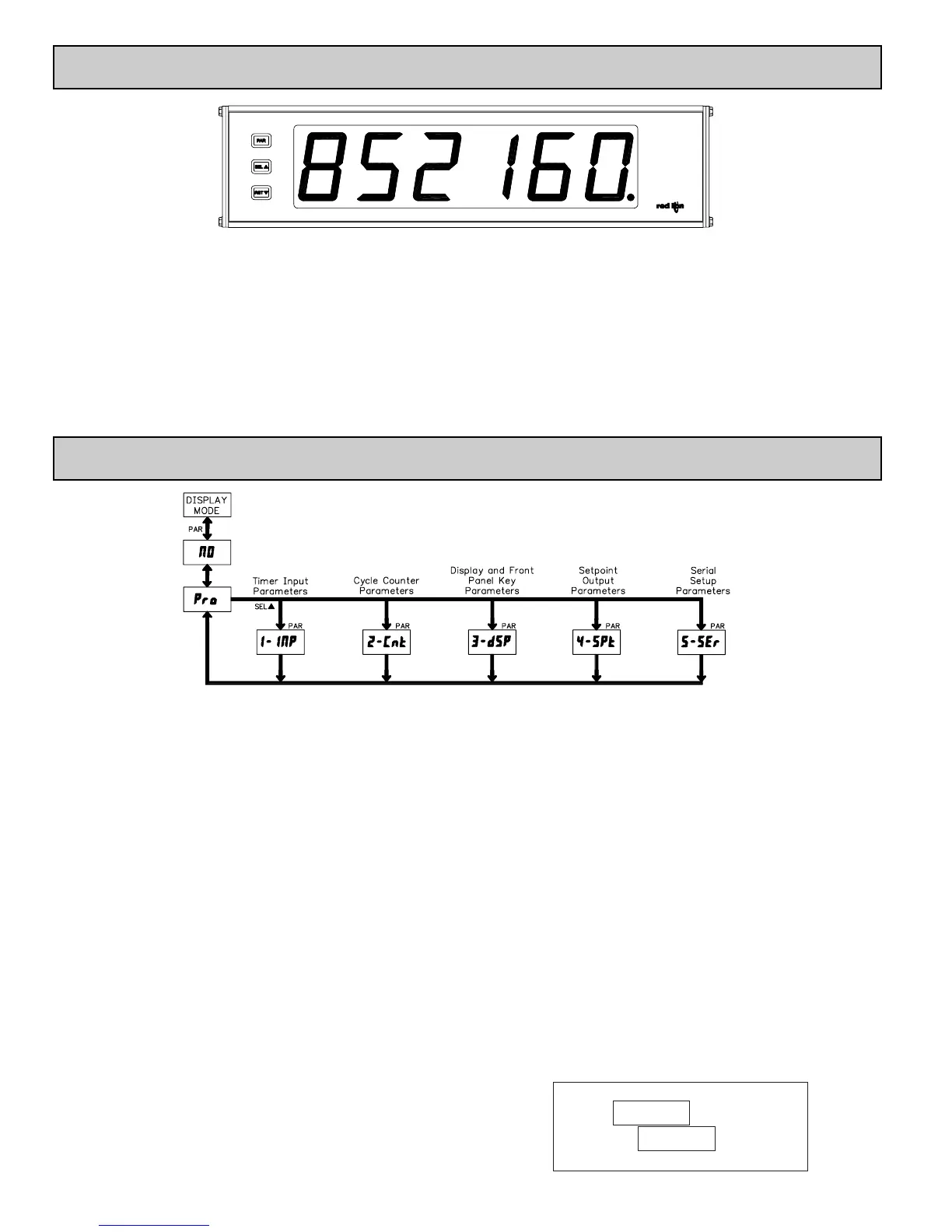

4.0 REVIEWING THE FRONT PANEL KEYS AND DISPLAY
PROGRAMMING MODE ENTRY (PAR KEY)
It is recommended all programming changes be made off line, or before
installation. The meter normally operates in the Display Mode. No parameters
can be programmed in this mode. The Programming Mode is entered by
pressing the PAR key. If it is not accessible, then it is locked by either a security
code or a hardware lock (See Module 3).
MODULE ENTRY (SEL
!
& PAR KEYS)
The Programming Menu is organized into five modules. These modules group
together parameters that are related in function. The display will alternate between
(&) and the present module. The SEL
!!
key is used to select the desired module.
The displayed module is entered by pressing the
PAR key.
MODULE MENU (PAR KEY)
Each module has a separate module menu (which is shown at the start of each
module discussion). The PAR key is pressed to advance to a particular parameter
to be changed, without changing the programming of preceding parameters.
After completing a module, the display will return to (&) *#. Programming
may continue by accessing additional modules.
SELECTION / VALUE ENTRY
For each parameter, the display alternates between the present parameter and
the selections/value for that parameter. The SEL
!!
and RST
""
keys are used to
move through the selections/values for that parameter. Pressing the
PAR key,
stores and activates the displayed selection/value. This also advances the meter to
the next parameter.
For numeric values, the value is displayed with one digit flashing (initially the
left most digit). Pressing the
SEL
!!
key increments the digit by one or the user
can hold the SEL
!!
key and the digit will automatically scroll. The RST
""
key
will select the next digit to the right. Pressing the
PAR key will enter the value
and move to the next parameter.
PROGRAMMING MODE EXIT (PAR KEY)
The Programming Mode is exited by pressing the PAR key with (&) *#
displayed. This will commit any stored parameter changes to memory and return
the meter to the Display Mode. (If power loss occurs before returning to the
Display Mode, verify recent parameter changes.)
PROGRAMMING TIPS
It is recommended to start with Module 1 and proceed through each module in
sequence. When programming is complete, it is recommended to record the
parameter programming and lock out parameter programming with the user input
or programming security code.
FACTORY SETTINGS
Factory Settings may be completely restored in Module 3. This is useful when
encountering programming problems.
Pressing the
RST
""
key on power-up will load the factory settings and display
&%+%!. This allows operation in the event of a memory failure or corrupted data.
ALTERNATING SELECTION DISPLAY
In the explanation of the modules, the following dual display with arrows will
appear. This is used to illustrate the display alternating between the parameter
on top and the parameter’s Factory Setting on the bottom. In most cases,
selections and values for the parameter will be listed on the right.
5.0 PROGRAMMING THE METER
OVERVIEW
PROGRAMMING MENU
KEY DISPLAY MODE OPERATION PROGRAMMING MODE OPERATION
PAR Access Programming Mode Store selected parameter and index to next parameter
RST
""
SEL
!!
Select display (Timer or Cycle Counter)
Select digit position in parameter value
Advance through selection list/increment selected digit
of parameter value
OPERATING MODE DISPLAY DESIGNATORS
“'” - To the left of the display is the Cycle Counter value.
“ , ” - Decimal point to the far right of the display indicates the setpoint status.
“
, ” - Decimal point between digits 5 and 6 can be programmed to flash when
the timer is running, to provide a “Timer Run” indicator.
If display scroll is enabled, the display will toggle automatically every four seconds between the Timer and Cycle Counter values.
Indicates Program Mode Alternating Display
Factory Settings are shown.
"
#
-%$%-
.*( #(
Parameter
Selection/Value
Reset value(s) per front panel reset setting
To Next Page
