12-MENU ENTRIES AND OPERATION
SYSTEM CONFIGURATIONS
At the time of installation, the product must be congured according to the type of system by selecting the relative parameter in the
"SETTINGS" menu.
There are 5 possible congurations, described below:
Conguration Description
1 Room temperature control via boiler's on-board probe or by enabling external thermostat.
2 2.1 Ambient temperature management with a probe tted on the boiler or by enabling an external ambient
thermostat; instant production of hot sanitary water with plate exchanger in FACTORY CONFIGURATION.
2.2 Room temperature control via boiler's on-board probe or enabling external thermostat; DHW production for
storage cylinder or storage with thermostat (optional).
DISCONNECT THE INTERNAL THREE-WAY VALVE AND FLOW SWITCH (IF PRESENT)
3 Room temperature control via boiler's on-board probe or enabling external thermostat; DHW production with
NTC probe (10 k ß3435).
DISCONNECT THE INTERNAL THREE-WAY VALVE AND FLOW SWITCH (IF PRESENT)
4 External Puer controlled by thermostat.
5 External Puer controlled by NTC probe (10 k ß3435).

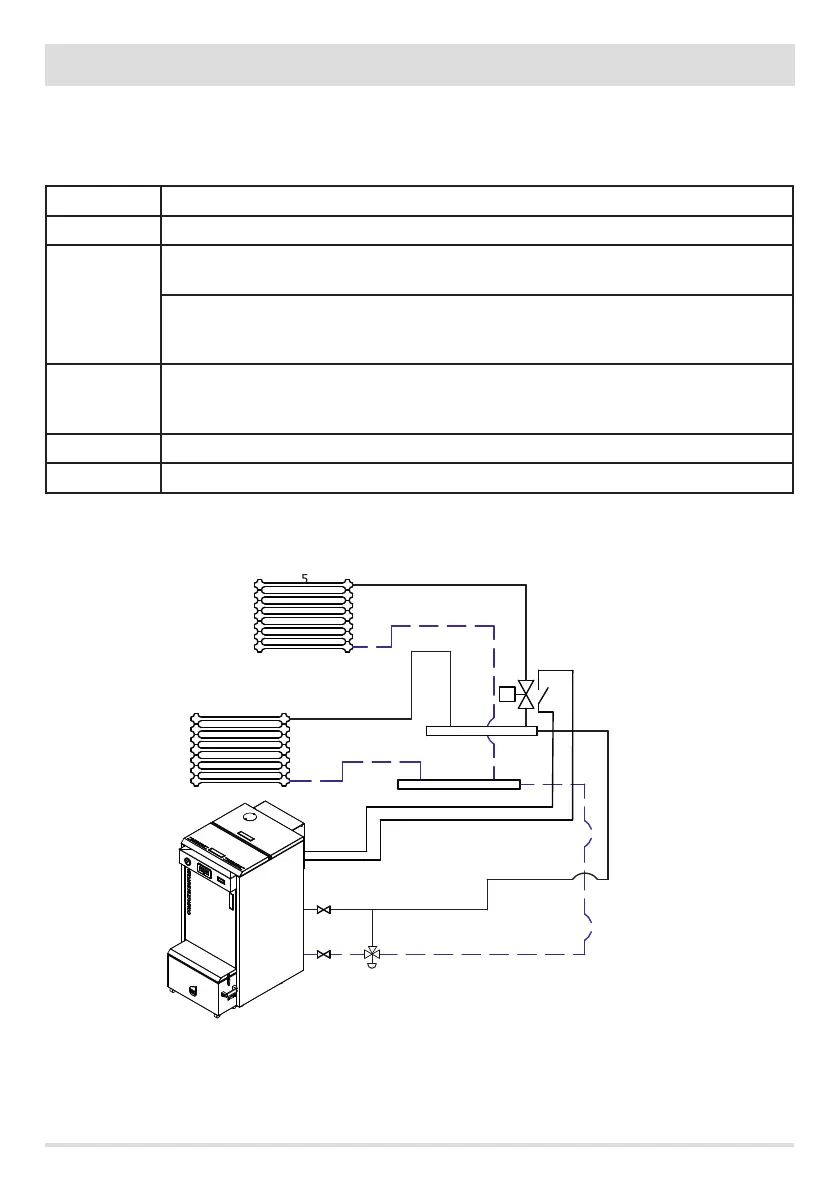

CONFIGURATION 1
