RED COMPACT 24 - 9 Programming and Settings; Control Panel

red
COMPACT 24 BOILER
Chapter
9
USE AND MAINTENANCE MANUAL page 32
Programming and settings Technical dept. - All rights reserved - Reproduction prohibited
9. PROGRAMMING AND SETTINGS

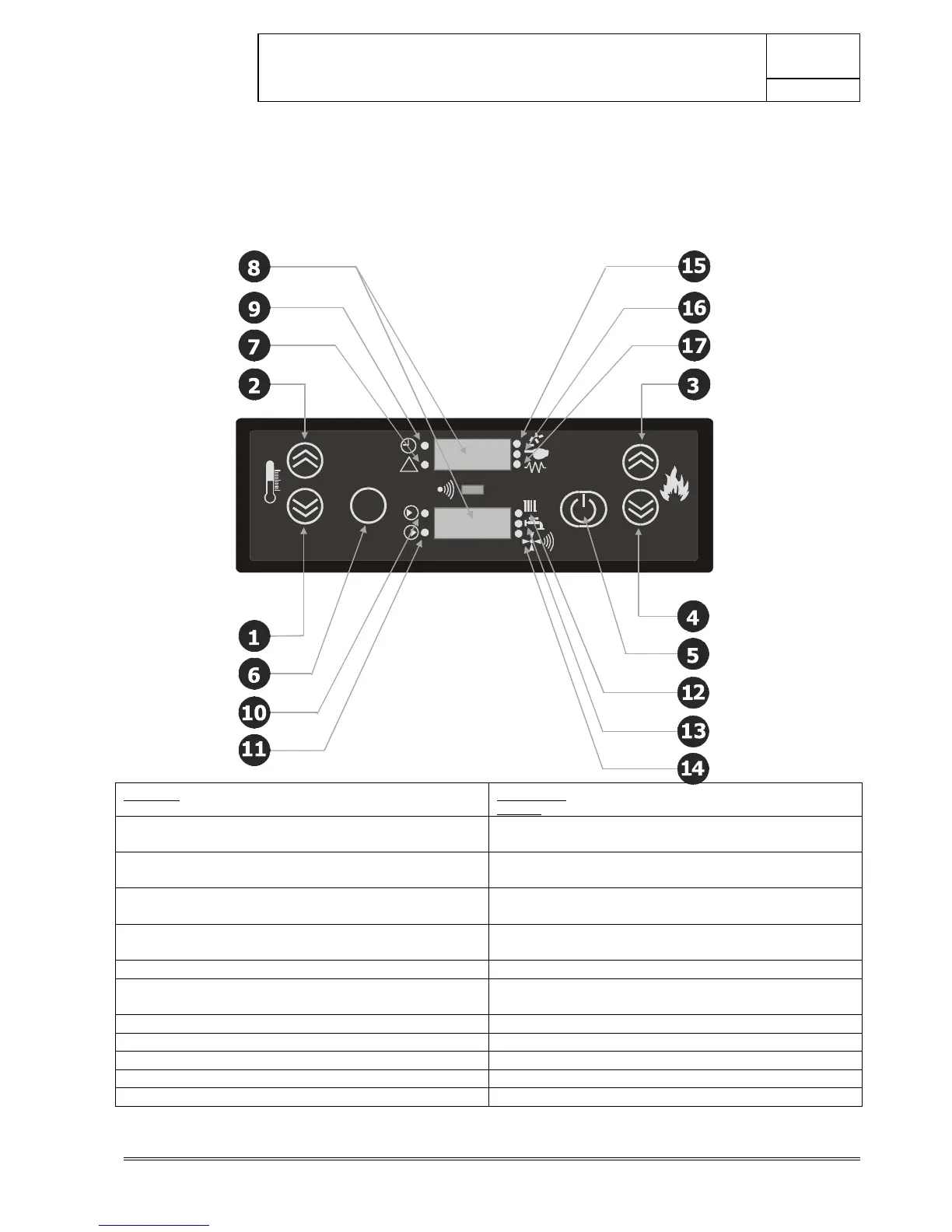

9.1. CONTROL PANEL
INDEX OF BUTTONS AND INDICATOR LIGHTS
BUTTONS
INDICATOR
LIGHTS
1. Decreases temperature set point / programming
functions
7. General alarm (see specifics)
2. Increases temperature set point / programming
functions
8. D1-D2 display
3. Scroll up the programming menu to increase / vary
the fan speed and increase
9. Timer enabled/disabled indicator light
4. Scroll down the programming menu to
decrease/smoke blower diagnostics and decrease
10. Indicator light indicating when the thermostat
requires power
5. boiler start-up / switch-off 11. Water pump enabled/disabled indicator light
6. Air and water thermostats temperature set point /
access to programming menus
12. Heating system enabled indicator light
13. DHW system enabled indicator light
14. Exchanger ON indicator light
15. Auger enabled/disabled indicator light
16. NOT ENABLED
17. Pellet igniter ON indicator light
SET
TURBO
1
2
64
3
5
!
