RED COMPACT 24 - Alarm Signals

red
COMPACT 24 BOILER
Chapter
9
USE AND MAINTENANCE MANUAL page 47
Programming and settings Technical dept. - All rights reserved - Reproduction prohibited
SET
TURBO
1
2
64
3
5
!
ALAR
Caution!
If the boiler is NOT used as instructed herein, the
manufacturer will not be held in any way liable for any ensuing
personal harm and/or property damage. In addition, the
manufacturer will not be held in any way liable for personal
harm and/or property damage due to failure to observe all the
rules specified in the manual, and also if:
 all the necessary measures and/ or precautions have not
been taken when carrying out maintenance, cleaning and
repair work.
 The safety devices have been tampered with or removed.
 The boiler is not connected to an efficient and effective
smoke outlet system.
 The room i.n which the boiler is installed is not suitably
aired
 The hydraulic system has not been laid in compliance
with the provisions of the applicable laws and standards
in the country of installation.

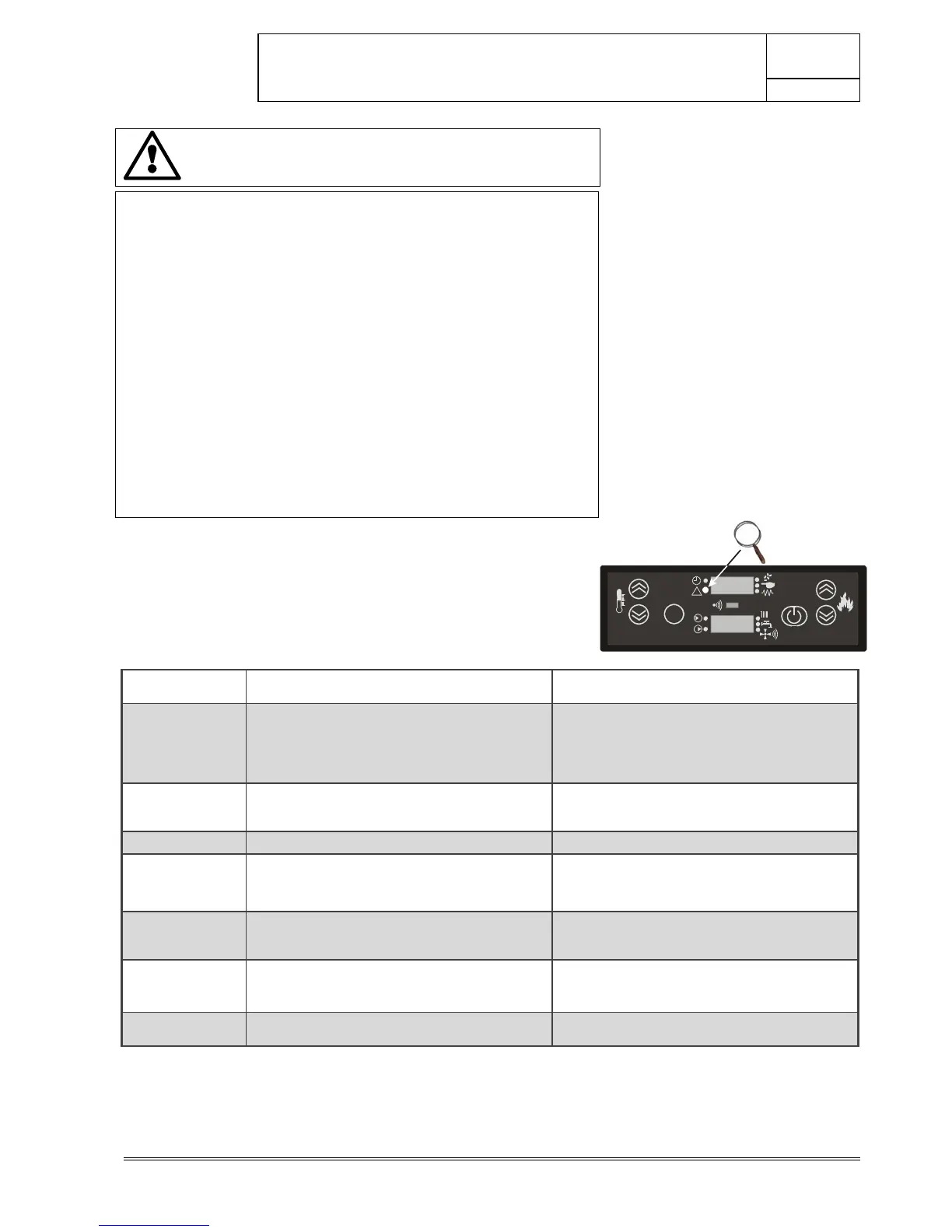

9.6.1. Alarm signals
In the event of an operating fault, the boiler is fitted with a
computerised monitoring system and therefore informs the user on the
display (8) how serious the fault is and where it has occurred.
The following table summarises the main alarm signals
Indication on the
display (8)
Type of problem Solution
ALAR DEP FAIL Smoke outlet pipe obstructed or back-pressure caused by
wind outside.
Check and clean the ENTIRE smoke duct or chec
k
whether the outside wind prevents the smoke from
exiting (insert a windproof chimney).
Only once the cause of the shutdown has been
permanently remedied can the boiler be restarted.
ALAR FAN FAIL Fan speed too low or fan off
The smoke blower fan has shut down.
Check how clean it is and whether dirt is slowin
g
down
the fan. If the problem is not solved throu
g
h a thorou
g
h
clean, replace the blower fan
ALAR SOND FUMI The smoke sensor has short-circuited Replace the smoke sensor
ALAR SIC FAIL
T
he pellet tank safety device has been tri
gg
ered.
Malfunctionin
g
has caused overheatin
g
. The pressure
inside the boiler is not within the parameter values set
Check the parameters of the recipe used
The exchanger isn't working.
T
he boiler was used at maximum performance for too
long. Check the correct pressure with a pressure gauge.
ALAR HOT TEMP
T
his occurs when the temperature of the smoke reaches
and remains above 180° for too long.
Clean the inside of the exchan
g
er and operate the boiler
at maximum performance for shorter periods of time.
Also check the quantity of pellets.
ALAR NO ACC This occurs at the first failed start-up attempt. If it was the first start-up, repeat the process or chec
k
the level of pellets in the tank.
Check the pellet igniter.
ALAR NO FIRE It occurs when the boiler shuts down and when the
smoke sensor temperature is below the set threshold.
It is due to the flame dying out due to clogging or when
the pellets in the tank have run out.
