COMPACT 24 BOILER
Chapter
10
USE AND MAINTENANCE MANUAL
page 53
Maintenance and cleaning Technical dept. - All rights reserved - Reproduction prohibited
10.5. ROUTINE CLEANING UNDER THE SPECIALISED TECHNICIAN'S
RESPONSIBILITY
10.5.1. CLEANING THE EXCHANGER AND PIPE UNIT
CLEANING THE UPPER COMPARTMENT
When the boiler is cold, raise the front cover “H”; remove the screws to the left and right “o” and remove the
cover “A”. Next, remove the relevant fastening screws from the drivers “v” and remove the boiler cover “B”.

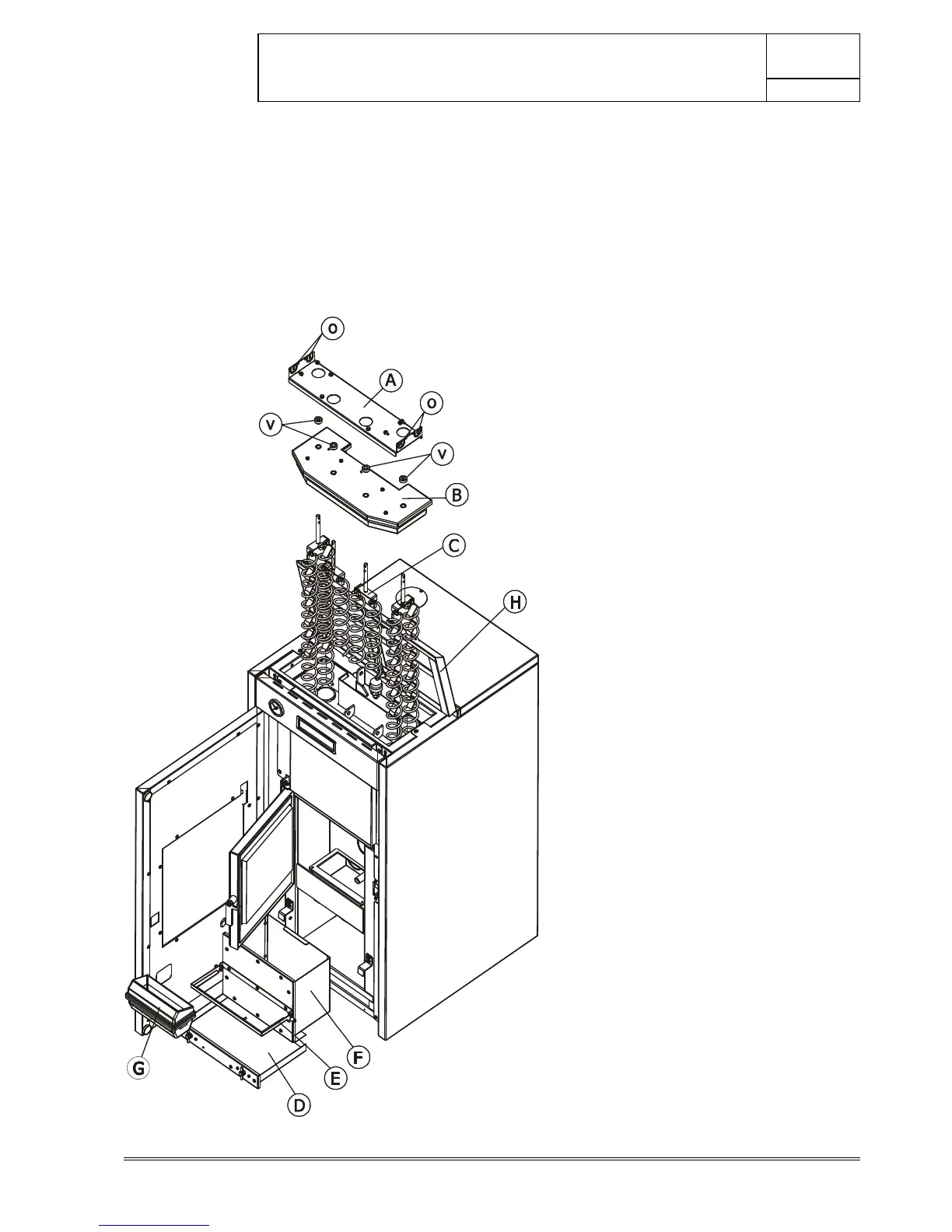

Figure 10 – Cleaning the pipe unit,
turbulators and lower compartment
